SKF 22318 E Tappered 90 mm ID Roller Bearing, 190 mm OD
- RS Stock No.:
- 207-8531
- Mfr. Part No.:
- 22318 E
- Brand:
- SKF
Subtotal (1 unit)*
£541.71
(exc. VAT)
£650.05
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 28 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £541.71 |
*price indicative
- RS Stock No.:
- 207-8531
- Mfr. Part No.:
- 22318 E
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Roller Bearing | |
| Inside Diameter | 90mm | |
| Race Width | 64mm | |
| Bore Type | Tappered | |
| Roller Material | Steel | |
| Internal Clearance | C3 | |
| Static Load Rating | 695kN | |
| Number of Rows | 1 | |
| Bearing Material | Steel | |
| Limiting Speed | 3600rpm | |
| Series | 22318 E | |
| Standards/Approvals | No | |
| Dynamic Load Rating | 637kN | |
| Outside Diameter | 190mm | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Roller Bearing | ||
Inside Diameter 90mm | ||
Race Width 64mm | ||
Bore Type Tappered | ||
Roller Material Steel | ||
Internal Clearance C3 | ||
Static Load Rating 695kN | ||
Number of Rows 1 | ||
Bearing Material Steel | ||
Limiting Speed 3600rpm | ||
Series 22318 E | ||
Standards/Approvals No | ||
Dynamic Load Rating 637kN | ||
Outside Diameter 190mm | ||
- COO (Country of Origin):
- MY

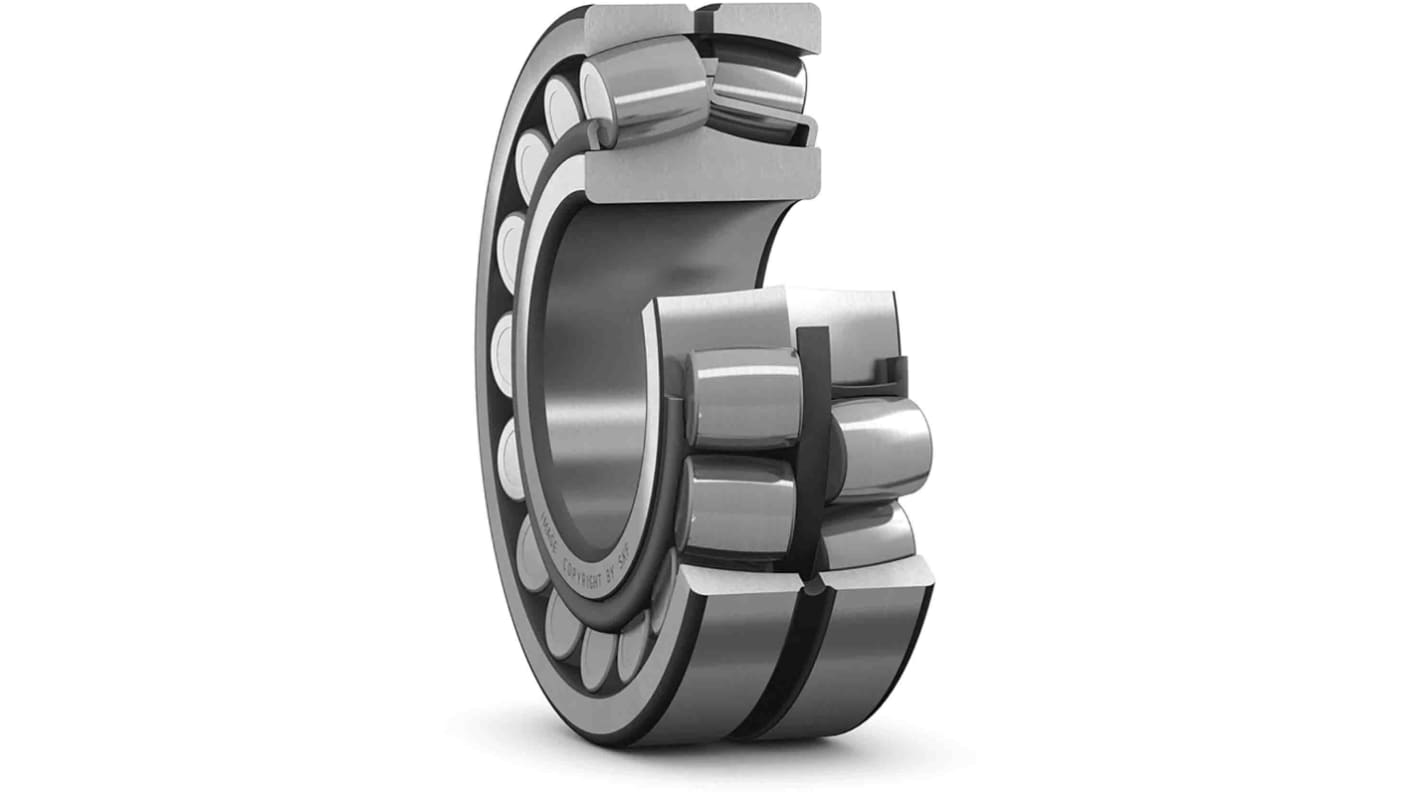

The SKF spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis. It has 90 mm ID and 190 mm OD.
Bearing is of bearing steel
Cylindrical bore type
