SKF 22316 EK/C3 Tapered 80 mm I.D Roller Bearing, 170 mm O.D

View all Roller Bearings

Subtotal (1 unit)*

£417.95

(exc. VAT)

£501.54

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£417.95

*price indicative

RS Stock No.:
207-8525
Mfr. Part No.:
22316 EK/C3
Brand:
SKF
Find similar products by selecting one or more attributes.
Select all

Brand

SKF

Product Type

Roller Bearing

Inside Diameter

80 mm

Race Width

58mm

Bore Type

Tapered

Roller Material

Steel

Outside Diameter

170 mm

Dynamic Load Rating

516kN

Standards/Approvals

No

Limiting Speed

4000rpm

Bearing Material

Steel

Number of Rows

1

Static Load Rating

530kN

Series

SRB

Internal Clearance

C3

COO (Country of Origin):
GB

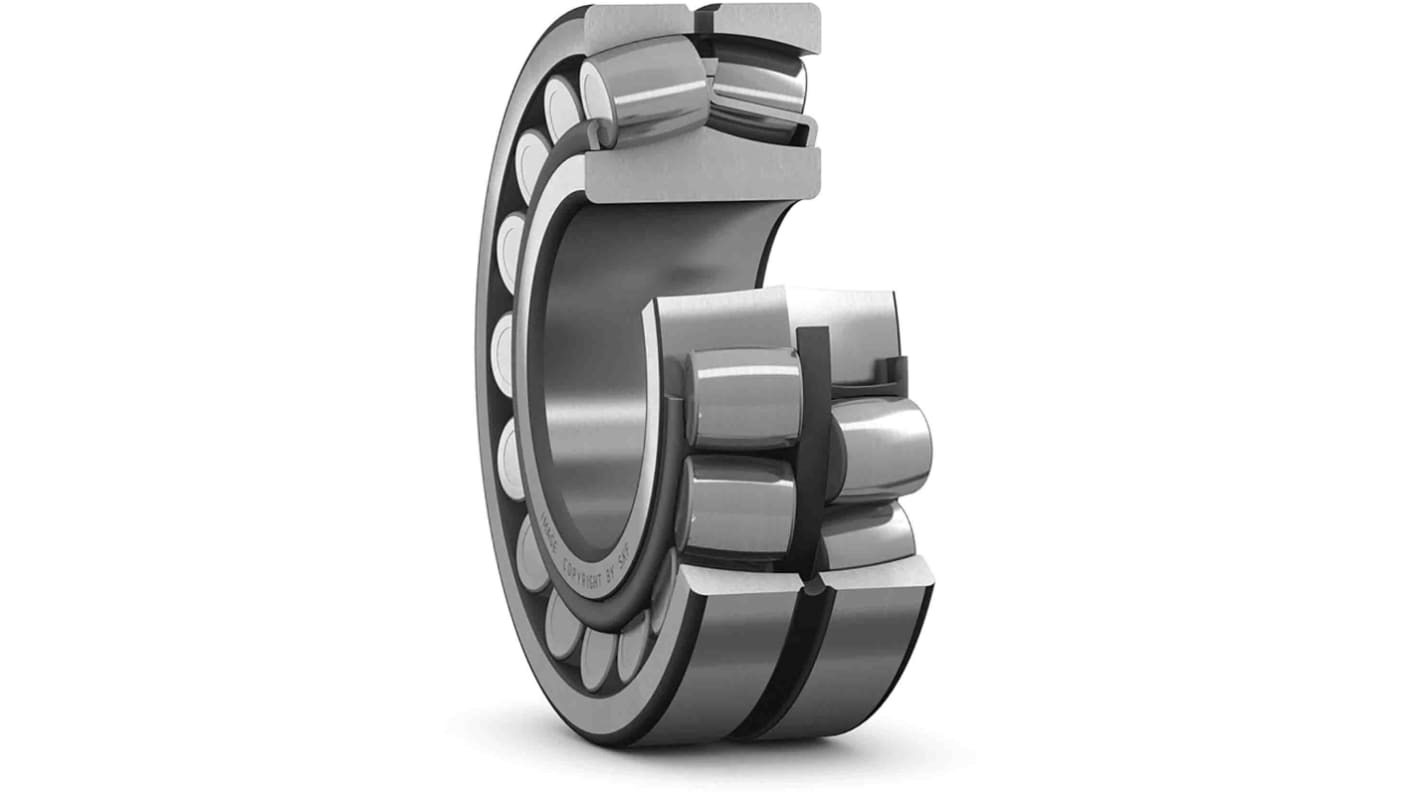

The SKF spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis. It has 80 mm ID and 170 mm OD.

Bearing is of bearing steel

Tapered 1:12 bore type
