SKF 22316 EK Tapered 80 mm ID Roller Bearing, 170 mm OD
- RS Stock No.:
- 207-8524
- Mfr. Part No.:
- 22316 EK
- Brand:
- SKF
Subtotal (1 unit)*
£422.13
(exc. VAT)
£506.56
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 21 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £422.13 |
*price indicative
- RS Stock No.:
- 207-8524
- Mfr. Part No.:
- 22316 EK
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Roller Bearing | |
| Inside Diameter | 80mm | |
| Race Width | 58mm | |
| Bore Type | Tapered | |
| Roller Material | Steel | |
| Series | 22316 EK | |
| Standards/Approvals | No | |
| Static Load Rating | 530kN | |
| Internal Clearance | C3 | |
| Number of Rows | 1 | |
| Dynamic Load Rating | 516kN | |
| Outside Diameter | 170mm | |
| Limiting Speed | 4000rpm | |
| Bearing Material | Steel | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Roller Bearing | ||
Inside Diameter 80mm | ||
Race Width 58mm | ||
Bore Type Tapered | ||
Roller Material Steel | ||
Series 22316 EK | ||
Standards/Approvals No | ||
Static Load Rating 530kN | ||
Internal Clearance C3 | ||
Number of Rows 1 | ||
Dynamic Load Rating 516kN | ||
Outside Diameter 170mm | ||
Limiting Speed 4000rpm | ||
Bearing Material Steel | ||
- COO (Country of Origin):
- GB

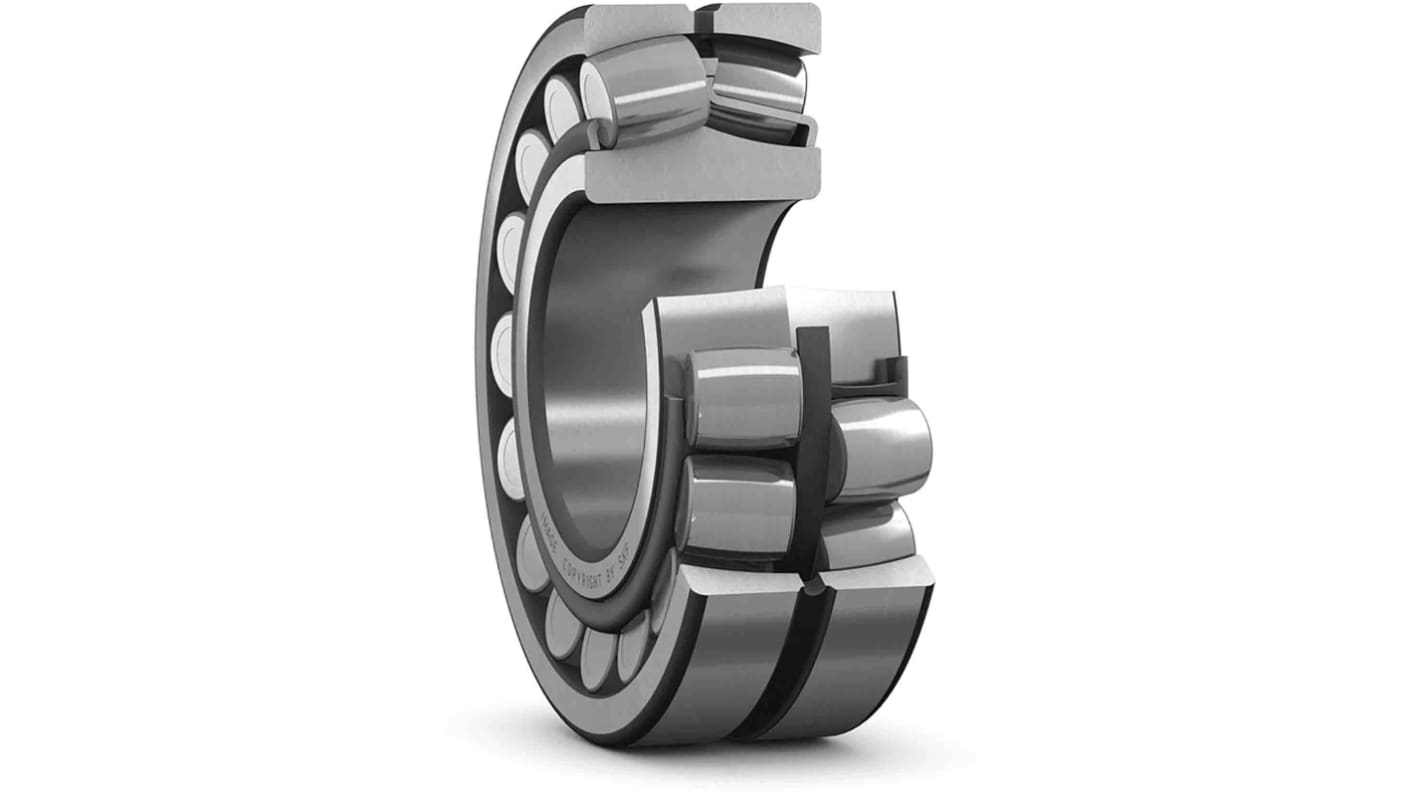

The SKF spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis. It has 80 mm ID and 170 mm OD.
Bearing is of bearing steel
Tapered 1:12 bore type
