SKF 22315 EJA/VA405 Taper 75 mm ID Roller Bearing, 160 mm OD
- RS Stock No.:
- 207-8517
- Mfr. Part No.:
- 22315 EJA/VA405
- Brand:
- SKF
Subtotal (1 unit)*
£410.24
(exc. VAT)
£492.29
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 28 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £410.24 |
*price indicative
- RS Stock No.:
- 207-8517
- Mfr. Part No.:
- 22315 EJA/VA405
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Roller Bearing | |
| Inside Diameter | 75mm | |
| Race Width | 55mm | |
| Bore Type | Taper | |
| Roller Material | Steel | |
| Number of Rows | 1 | |
| Static Load Rating | 475kN | |
| Internal Clearance | C3 | |
| Bearing Material | Steel | |
| Outside Diameter | 160mm | |
| Dynamic Load Rating | 462kN | |
| Limiting Speed | 4300rpm | |
| Series | 22315 EJA/VA405 | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Roller Bearing | ||
Inside Diameter 75mm | ||
Race Width 55mm | ||
Bore Type Taper | ||
Roller Material Steel | ||
Number of Rows 1 | ||
Static Load Rating 475kN | ||
Internal Clearance C3 | ||
Bearing Material Steel | ||
Outside Diameter 160mm | ||
Dynamic Load Rating 462kN | ||
Limiting Speed 4300rpm | ||
Series 22315 EJA/VA405 | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- MY

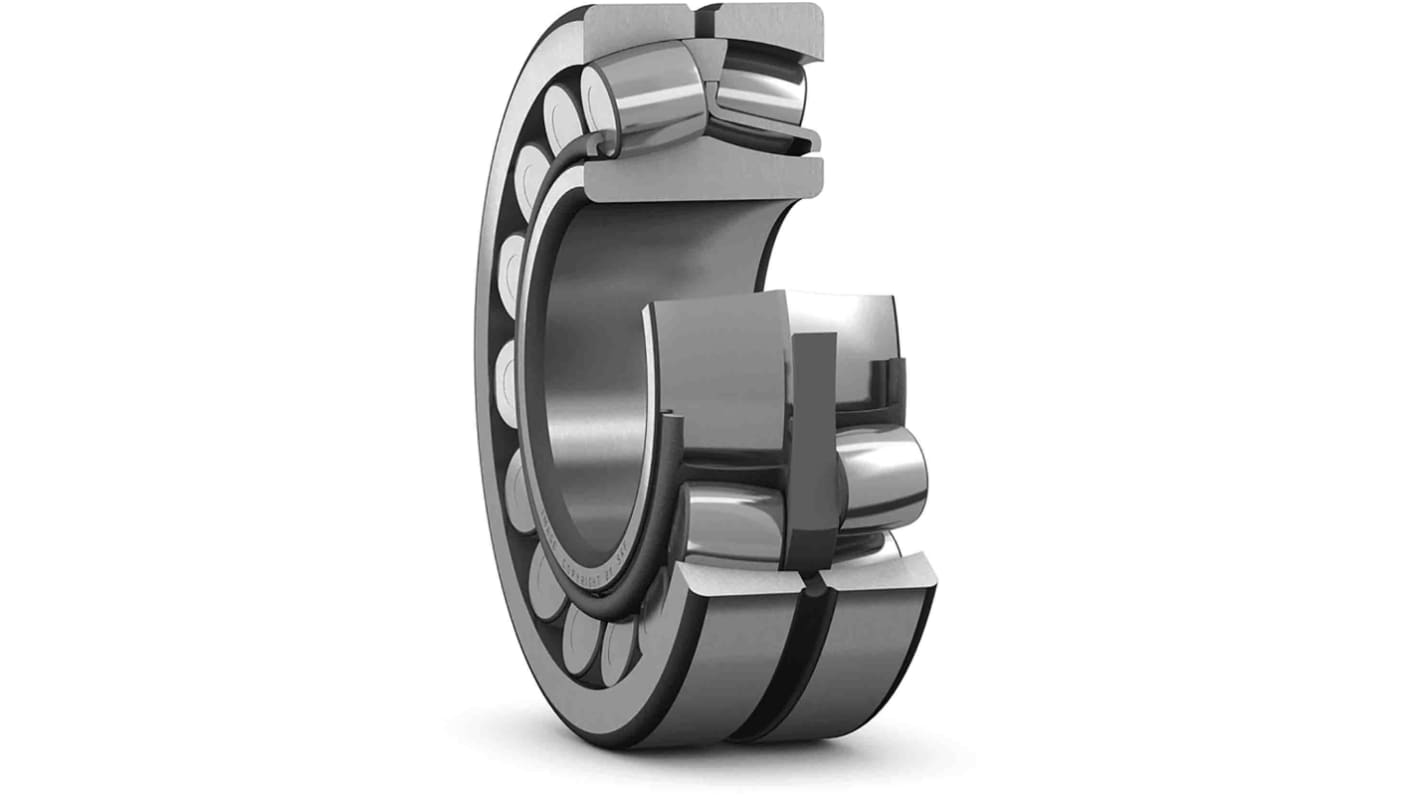

The SKF spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis. It has 75 mm ID and 160 mm OD.
Bearing is of bearing steel
Cylindrical bore type
