SKF 22315 E Taper 75 mm ID Roller Bearing, 160 mm OD
- RS Stock No.:
- 207-8514
- Mfr. Part No.:
- 22315 E
- Brand:
- SKF
Subtotal (1 unit)*
£372.32
(exc. VAT)
£446.78
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 28 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £372.32 |
*price indicative
- RS Stock No.:
- 207-8514
- Mfr. Part No.:
- 22315 E
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Roller Bearing | |
| Inside Diameter | 75mm | |
| Race Width | 55mm | |
| Bore Type | Taper | |
| Roller Material | Steel | |
| Internal Clearance | C3 | |
| Outside Diameter | 160mm | |
| Static Load Rating | 475kN | |
| Number of Rows | 1 | |
| Dynamic Load Rating | 462kN | |
| Standards/Approvals | No | |
| Bearing Material | Steel | |
| Limiting Speed | 4300rpm | |
| Series | 22315 E | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Roller Bearing | ||
Inside Diameter 75mm | ||
Race Width 55mm | ||
Bore Type Taper | ||
Roller Material Steel | ||
Internal Clearance C3 | ||
Outside Diameter 160mm | ||
Static Load Rating 475kN | ||
Number of Rows 1 | ||
Dynamic Load Rating 462kN | ||
Standards/Approvals No | ||
Bearing Material Steel | ||
Limiting Speed 4300rpm | ||
Series 22315 E | ||
- COO (Country of Origin):
- MY

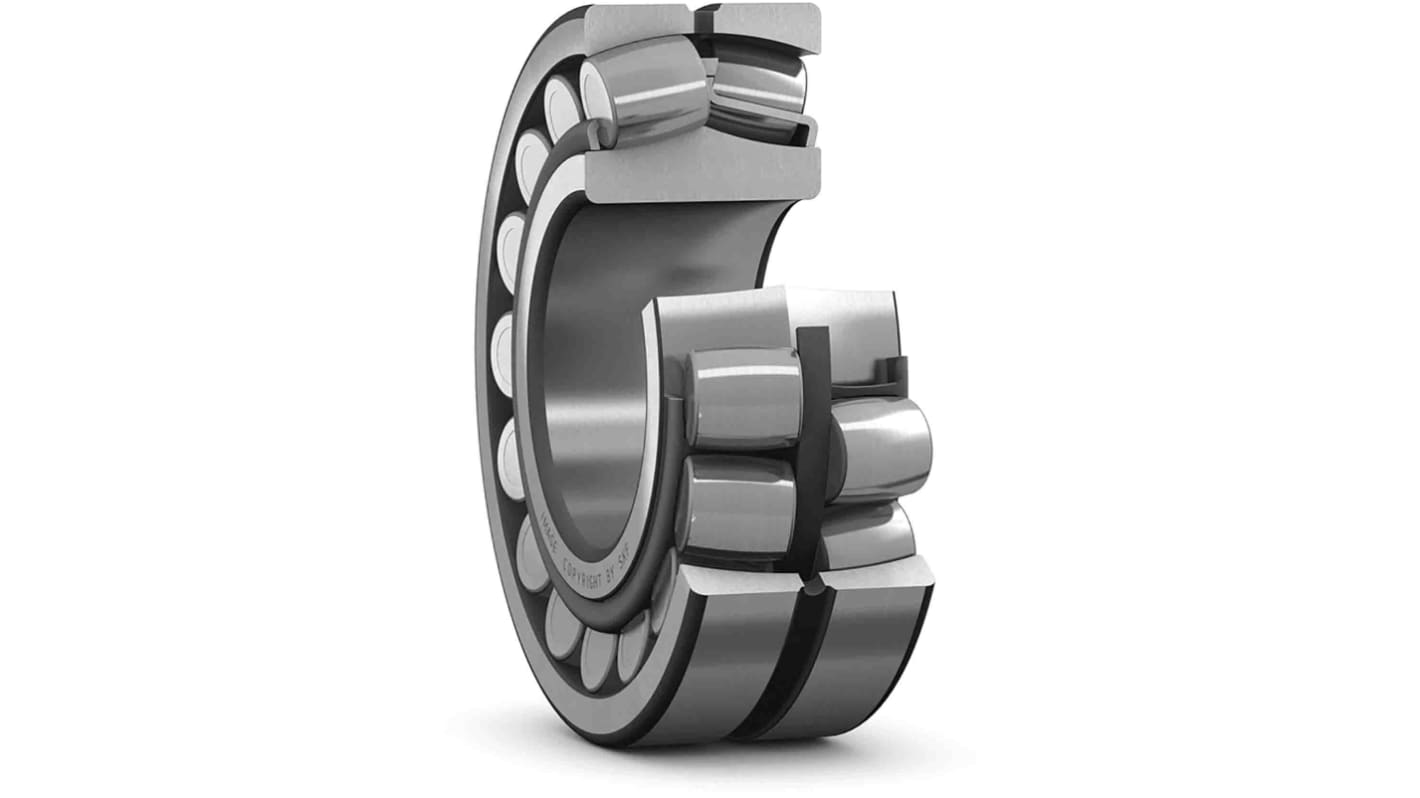

The SKF spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis. It has 75 mm ID and 160 mm OD.
Bearing is of bearing steel
Cylindrical bore type
