SKF 22216 E/C3 Tappered 80 mm ID Roller Bearing, 140 mm OD
- RS Stock No.:
- 207-8447
- Mfr. Part No.:
- 22216 E/C3
- Brand:
- SKF
Subtotal (1 unit)*
£219.05
(exc. VAT)
£262.86
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 29 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £219.05 |
*price indicative
- RS Stock No.:
- 207-8447
- Mfr. Part No.:
- 22216 E/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Roller Bearing | |
| Inside Diameter | 80mm | |
| Race Width | 33mm | |
| Bore Type | Tappered | |
| Roller Material | Steel | |
| Limiting Speed | 6300rpm | |
| Series | SRB | |
| Bearing Material | Steel | |
| Number of Rows | 1 | |
| Static Load Rating | 270kN | |
| Internal Clearance | C3 | |
| Outside Diameter | 140mm | |
| Standards/Approvals | No | |
| Dynamic Load Rating | 243kN | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Roller Bearing | ||
Inside Diameter 80mm | ||
Race Width 33mm | ||
Bore Type Tappered | ||
Roller Material Steel | ||
Limiting Speed 6300rpm | ||
Series SRB | ||
Bearing Material Steel | ||
Number of Rows 1 | ||
Static Load Rating 270kN | ||
Internal Clearance C3 | ||
Outside Diameter 140mm | ||
Standards/Approvals No | ||
Dynamic Load Rating 243kN | ||
- COO (Country of Origin):
- GB

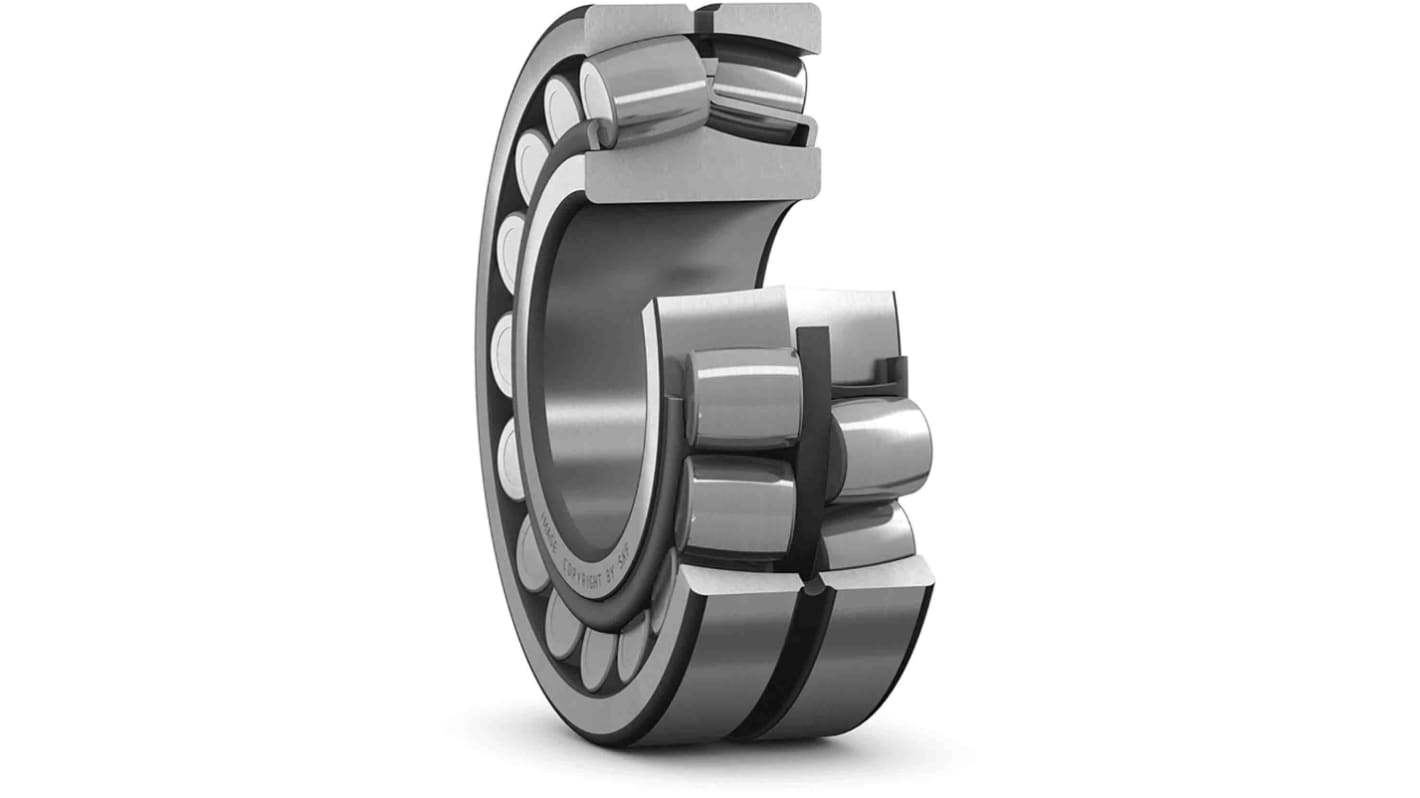

The SKF spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis. It has 80 mm ID and 140 mm OD.
Bearing is of bearing steel
Cylindrical bore type
