SKF N 309 ECP 45mm I.D Cylindrical Cylindrical Roller Bearing, 100mm O.D
- RS Stock No.:
- 195-9636
- Mfr. Part No.:
- N 309 ECP
- Brand:
- SKF
Save 7% when you buy 25 units
Subtotal (1 unit)*
£161.90
(exc. VAT)
£194.28
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £161.90 |
5 - 9 | £155.42 |
10 - 24 | £152.20 |
25 + | £148.96 |
*price indicative
- RS Stock No.:
- 195-9636
- Mfr. Part No.:
- N 309 ECP
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 45mm | |
Outside Diameter | 100mm | |
Roller Bearing Type | Cylindrical | |
Race Width | 25mm | |
Bore Type | Parallel | |
Static Load Rating | 100kN | |
Cage Material | Non-metallic | |
Number of Rows | 1 | |
Dynamic Load Rating | 112kN | |
End Type | Sealed | |
Limiting Speed | 8500rpm | |
Reference Speed | 7500rpm | |
Fatigue Limit Load | 12.9kN | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 45mm | ||
Outside Diameter 100mm | ||
Roller Bearing Type Cylindrical | ||
Race Width 25mm | ||
Bore Type Parallel | ||
Static Load Rating 100kN | ||
Cage Material Non-metallic | ||
Number of Rows 1 | ||
Dynamic Load Rating 112kN | ||
End Type Sealed | ||
Limiting Speed 8500rpm | ||
Reference Speed 7500rpm | ||
Fatigue Limit Load 12.9kN | ||
RoHS Status: Exempt

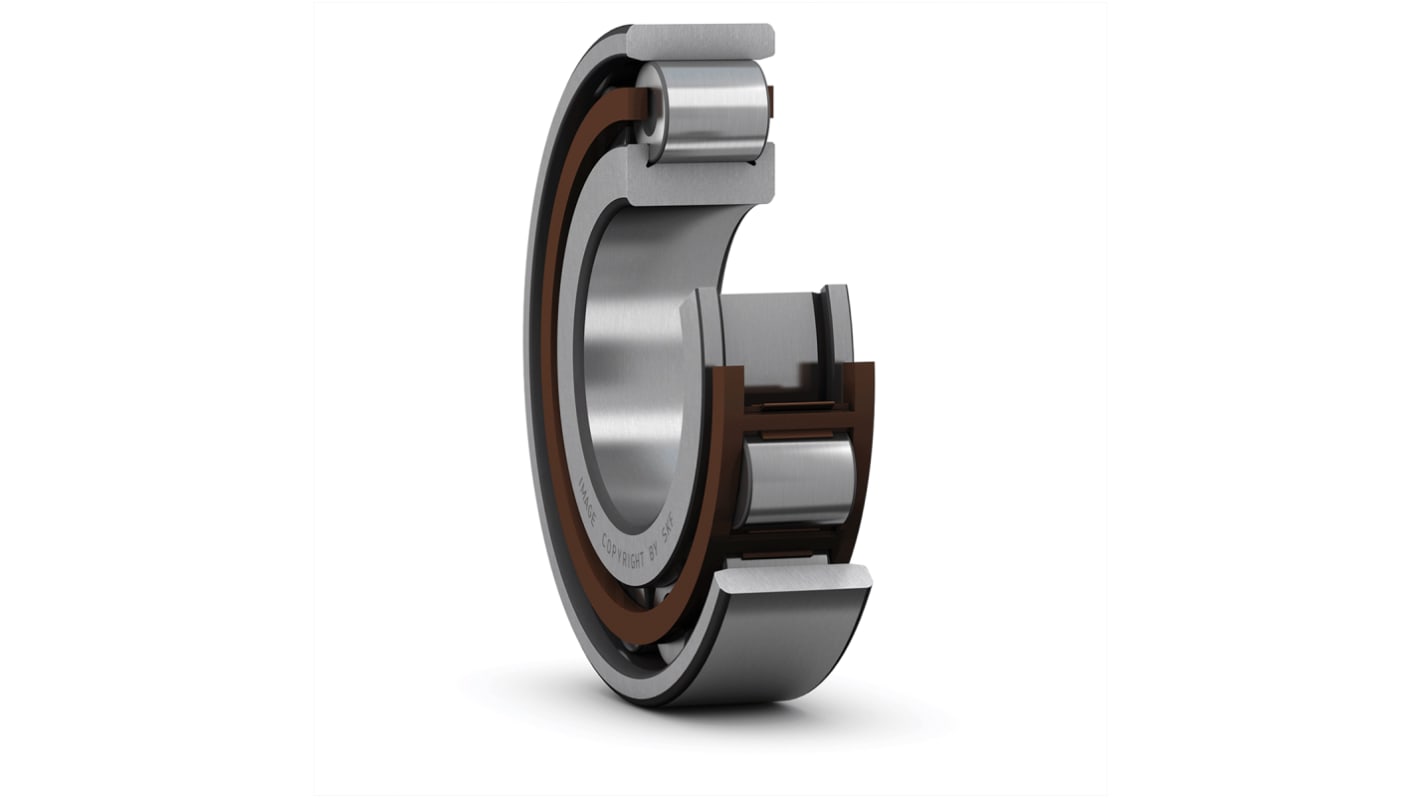

SKF Cylindrical Roller Bearing, 45mm Inside Diameter, 100mm Outside Diameter - N 309 ECP
This cylindrical roller bearing is designed for high-load applications, boasting an inside diameter of 45mm and an outside diameter of 100mm. This bearing features a non-metallic cage, enhancing its durability while maintaining low friction. With a static load rating of 100 kN and a dynamic load rating of 112 kN, this bearing is engineered to perform under pressure in various mechanical settings.
Features & Benefits
• High dynamic load rating supports rigorous operational demands
• Sealed design ensures protection against contaminants
• Compact size makes it suitable for various machinery
• Designed for high reference speeds, ensuring smooth performance
• Fatigue limit load guarantees longevity under cyclic loads
• Sealed design ensures protection against contaminants
• Compact size makes it suitable for various machinery
• Designed for high reference speeds, ensuring smooth performance
• Fatigue limit load guarantees longevity under cyclic loads
Applications
• Ideal for use in electric motors and pumps
• Designed for machinery requiring minimal maintenance
• Suitable for high-speed rotating
• Used in automated systems where reliability is crucial
• Designed for machinery requiring minimal maintenance
• Suitable for high-speed rotating
• Used in automated systems where reliability is crucial
What type of cage material is utilised in this bearing?
The bearing features a non-metallic cage, which provides improved lubrication retention and reduces friction during operation.
How does this bearing handle high speeds?
With a reference speed of 7500 r/min and a limiting speed of 8500 r/min, it is specifically designed to thrive in high-speed environments.
What are the implications of the static and dynamic load ratings?
The static load rating of 100 kN and dynamic load rating of 112 kN indicates its capacity to withstand both stationary and moving loads without failure.
What advantages does the sealed design provide?
The sealed design protects against dirt and moisture, contributing to the longevity and reliability of the bearing in various working conditions.
