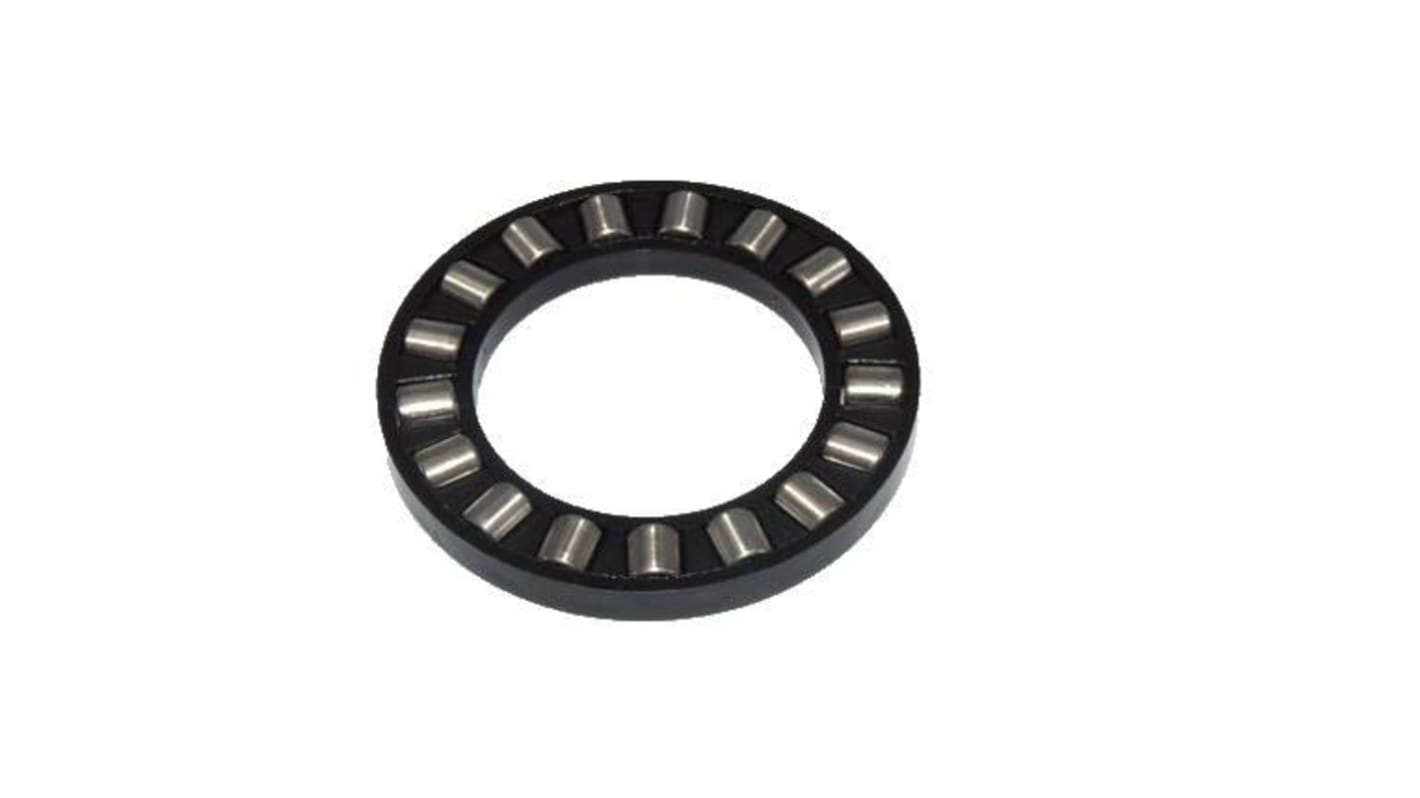

INA K81109-TV-A/0-8 45 mm I.D Roller Bearing, 65 mm O.D
- RS Stock No.:
- 194-7133
- Mfr. Part No.:
- K81109-TV-A/0-8
- Brand:
- INA
Bulk discount available
Subtotal (1 unit)*
£32.29
(exc. VAT)
£38.75
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 07 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £32.29 |
| 5 - 9 | £30.37 |
| 10 - 24 | £29.74 |
| 25 + | £29.13 |
*price indicative
- RS Stock No.:
- 194-7133
- Mfr. Part No.:
- K81109-TV-A/0-8
- Brand:
- INA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | INA | |
| Product Type | Roller Bearing | |
| Inside Diameter | 45 mm | |
| Race Width | 6mm | |
| Bore Type | Parallel | |
| Standards/Approvals | No | |
| End Type | Open | |
| Dynamic Load Rating | 59kN | |
| Outside Diameter | 65 mm | |
| Static Load Rating | 163kN | |
| Select all | ||
|---|---|---|
Brand INA | ||
Product Type Roller Bearing | ||
Inside Diameter 45 mm | ||
Race Width 6mm | ||
Bore Type Parallel | ||
Standards/Approvals No | ||
End Type Open | ||
Dynamic Load Rating 59kN | ||
Outside Diameter 65 mm | ||
Static Load Rating 163kN | ||
Single and double row axial cylindrical roller bearings are particularly suitable where:
High axial and shock loads occur in one direction but no radial loads are presentThe load carrying capacity of the corresponding axial deep groove ball bearings is no longer adequate (in this case, bearings of series 811 and 812 are especially suitable)
The bearing arrangement must have very high axial rigidity
The axial space available is very small
The bearing arrangement can be configured, where the axial space is very small, as a direct bearing arrangement
The bearing parts can or must be mounted separatelyThe bearing arrangement is not configured in itself but, for cost reasons, ready-to-fit standard bearings are to be used
