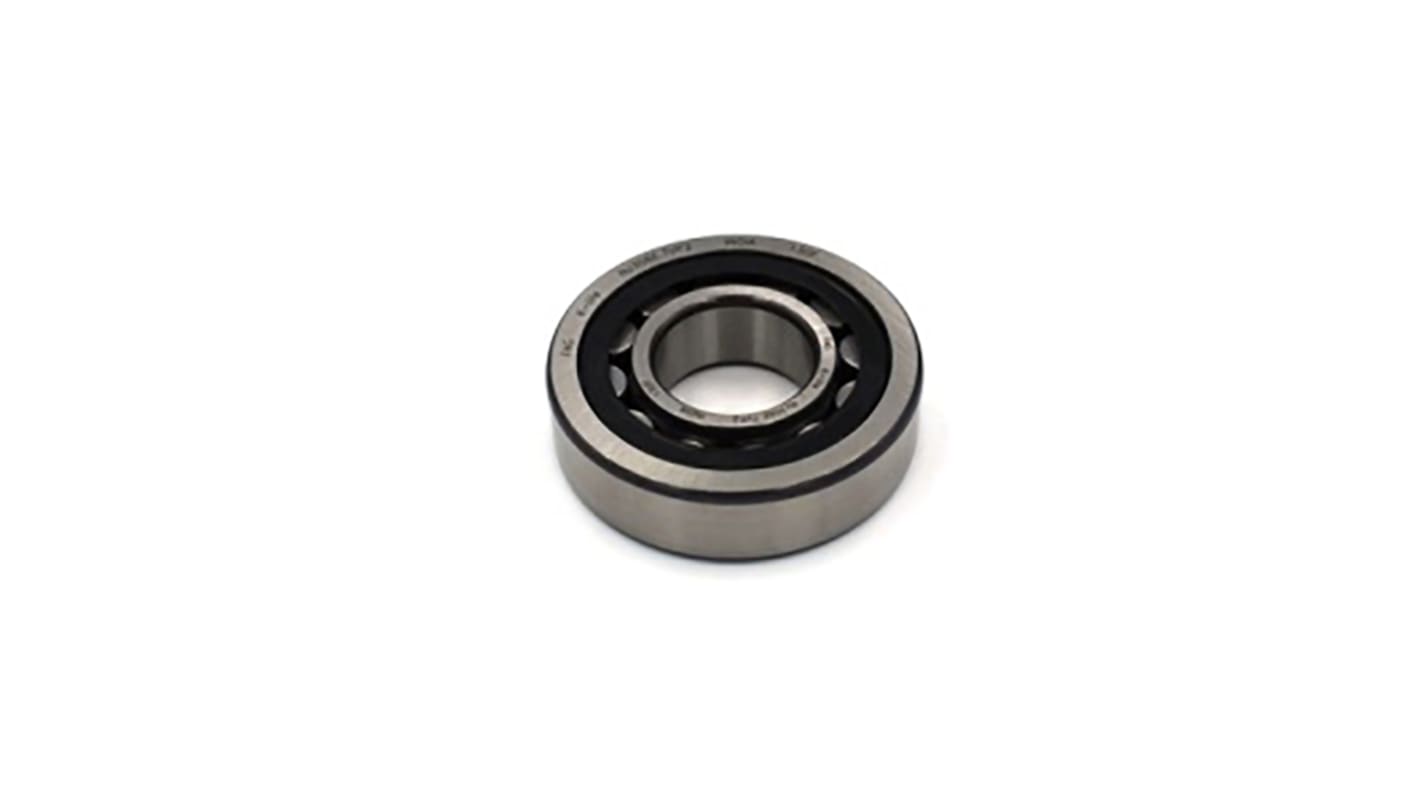

INA NJ304-E-XL-TVP2 20mm I.D Cylindrical Roller Bearing, 52mm O.D

View all Roller Bearings
Bulk discount available

Subtotal (1 unit)*

£43.86

(exc. VAT)

£52.63

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 999,999,999 unit(s) shipping from 05 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£43.86
5 - 9£42.10
10 - 24£41.22
25 +£40.35

*price indicative

RS Stock No.:
191-3907
Mfr. Part No.:
NJ304-E-XL-TVP2
Brand:
INA
Find similar products by selecting one or more attributes.
Select all

Brand

INA

Inside Diameter

20mm

Outside Diameter

52mm

Roller Bearing Type

Cylindrical

Race Width

15mm

Bore Type

Parallel

Static Load Rating

27000N

Cage Material

Plastic

Number of Rows

1

Dynamic Load Rating

37500N

End Type

Open

Fatigue Limit Load

3950N

Bearing arrangements are subjected to very high radial loads
Not only high radial forces but also axial loads from one or both directions must be supported by the bearing position (semi-locating or locating bearing function)
Bearing arrangements must have very high rigidity
Axial displacements of the shaft relative to the housing must be compensated without constraint in the bearing (in the case of bearings with a non-locating or semi-locating bearing function)
High radial loads and very high speeds occur but the very high radial load carrying capacity of full complement cylindrical roller bearings is not required
The bearings should be separable (one bearing ring can be removed) for easier mounting
