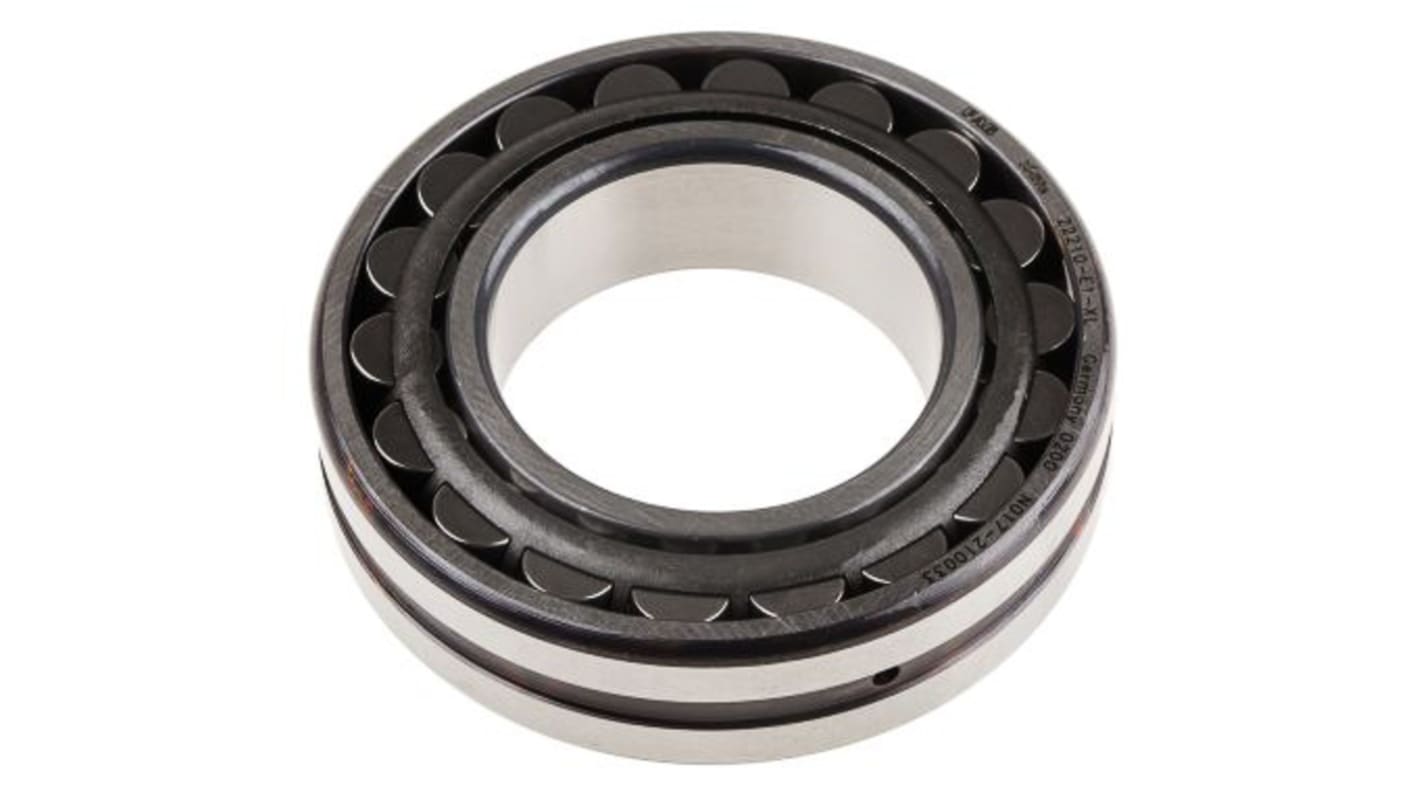

FAG 22213-E1-XL-C3 65mm I.D Spherical Roller Bearing, 120mm O.D
- RS Stock No.:
- 190-8347
- Mfr. Part No.:
- 22213-E1-XL-C3
- Brand:
- FAG
Bulk discount available
Subtotal (1 unit)*
£121.53
(exc. VAT)
£145.84
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £121.53 |
| 5 - 9 | £116.66 |
| 10 - 24 | £114.25 |
| 25 + | £111.81 |
*price indicative
- RS Stock No.:
- 190-8347
- Mfr. Part No.:
- 22213-E1-XL-C3
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Inside Diameter | 65mm | |
| Outside Diameter | 120mm | |
| Roller Bearing Type | Spherical | |
| Race Width | 31mm | |
| Bore Type | Parallel | |
| Static Load Rating | 210000N | |
| Cage Material | Sheet Steel | |
| Number of Rows | 2 | |
| Dynamic Load Rating | 202000N | |
| End Type | Open | |
| Fatigue Limit Load | 26500N | |
Select all | ||
|---|---|---|
Brand FAG | ||
Inside Diameter 65mm | ||
Outside Diameter 120mm | ||
Roller Bearing Type Spherical | ||
Race Width 31mm | ||
Bore Type Parallel | ||
Static Load Rating 210000N | ||
Cage Material Sheet Steel | ||
Number of Rows 2 | ||
Dynamic Load Rating 202000N | ||
End Type Open | ||
Fatigue Limit Load 26500N | ||
Bearing arrangements are subjected to high and very high radial loads
Relatively high axial loads occur on one or both sides, in addition to high radial forces
Dynamic or static misalignments of the shaft relative to the housing, or deflections of the shaft, must be freely compensated by the bearing
High shock type loads must be supported dynamically
Locating bearings with a very high load carrying capacity are required
Relatively high axial loads occur on one or both sides, in addition to high radial forces
Dynamic or static misalignments of the shaft relative to the housing, or deflections of the shaft, must be freely compensated by the bearing
High shock type loads must be supported dynamically
Locating bearings with a very high load carrying capacity are required
