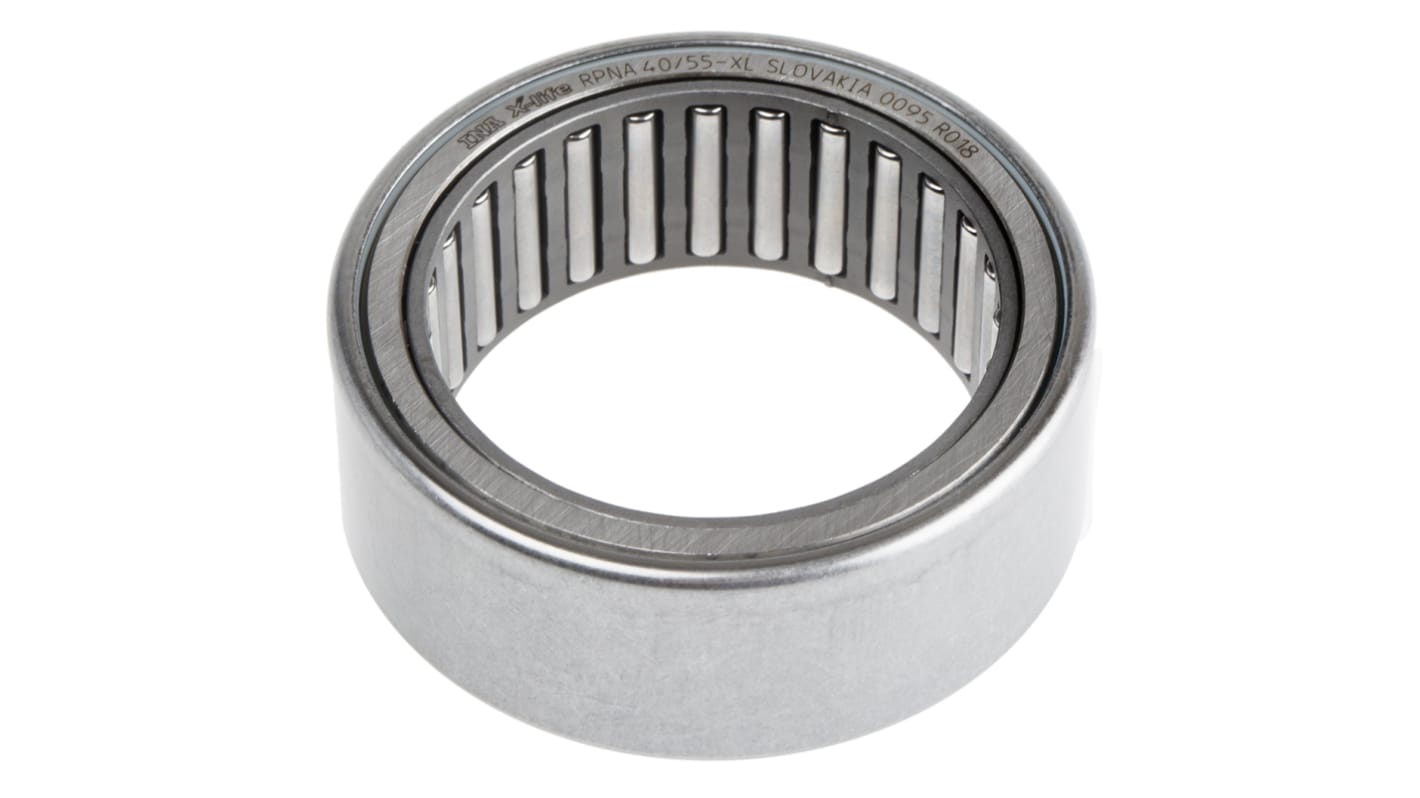

INA RPNA40/55-XL 40 mm ID Roller Bearing Needle, 55 mm OD
- RS Stock No.:
- 174-1428
- Mfr. Part No.:
- RPNA40/55-XL
- Brand:
- INA
Bulk discount available
Subtotal (1 unit)*
£71.07
(exc. VAT)
£85.28
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 4 | £71.07 |
| 5 - 9 | £68.22 |
| 10 - 24 | £66.80 |
| 25 + | £65.39 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 174-1428
- Mfr. Part No.:
- RPNA40/55-XL
- Brand:
- INA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | INA | |
| Product Type | Roller Bearing | |
| Inside Diameter | 40mm | |
| Race Width | 20mm | |
| Bore Type | Parallel | |
| Cage Material | Steel | |
| Static Load Rating | 47kN | |
| Maximum Speed - Oil | 11000rpm | |
| Standards/Approvals | No | |
| End Type | Open | |
| Dynamic Load Rating | 29.5kN | |
| Maximum Speed - Grease | 6500rpm | |
| Outside Diameter | 55mm | |
| Limiting Speed | 11400rpm | |
| Better World Claim | Extended Product Life, Saves Energy | |
| Better World Product | Yes | |
| Bearing Type | Needle | |
| Select all | ||
|---|---|---|
Brand INA | ||
Product Type Roller Bearing | ||
Inside Diameter 40mm | ||
Race Width 20mm | ||
Bore Type Parallel | ||
Cage Material Steel | ||
Static Load Rating 47kN | ||
Maximum Speed - Oil 11000rpm | ||
Standards/Approvals No | ||
End Type Open | ||
Dynamic Load Rating 29.5kN | ||
Maximum Speed - Grease 6500rpm | ||
Outside Diameter 55mm | ||
Limiting Speed 11400rpm | ||
Better World Claim Extended Product Life, Saves Energy | ||
Better World Product Yes | ||
Bearing Type Needle | ||
The bearings comprise drawn outer cups, plastic support rings with a concave inner profile, outer rings with a spherical outside surface, needle roller and cage assemblies and removable inner rings. Aligning needle roller bearings are X-life bearings. These bearings have optimised raceway surfaces. This gives higher load carrying capacity and longer rating life.
Compensation of misalignments
Needle roller bearings without inner ring
Needle roller bearings with inner ring
Displacement of the inner ring
Sealing
Lubrication
Operating temperature
Cages
