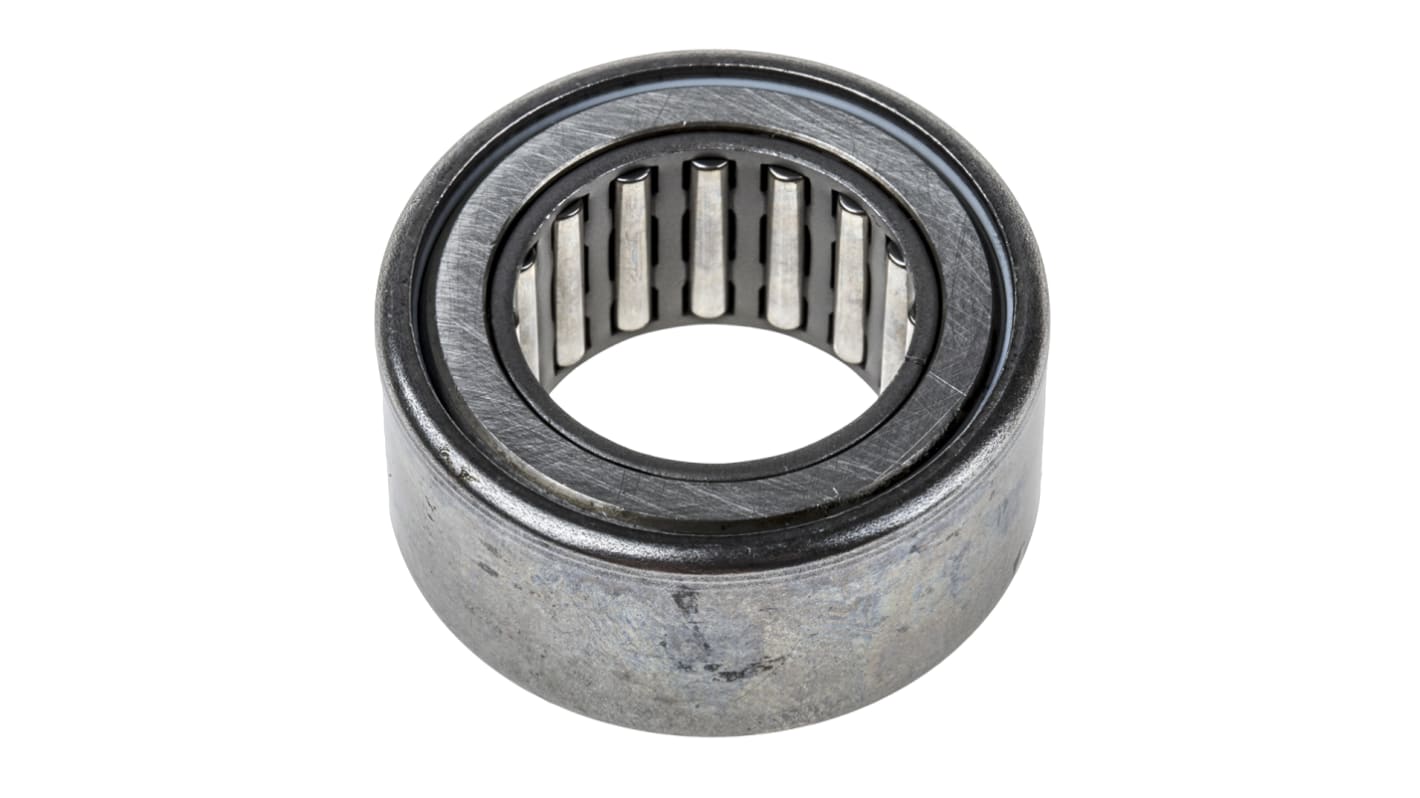

INA RPNA20/35-XL 20 mm ID Roller Bearing Needle, 35 mm OD
- RS Stock No.:
- 174-1424
- Mfr. Part No.:
- RPNA20/35-XL
- Brand:
- INA
Bulk discount available
Subtotal (1 unit)*
£47.31
(exc. VAT)
£56.77
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £47.31 |
| 5 - 9 | £45.43 |
| 10 - 24 | £44.47 |
| 25 + | £43.53 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 174-1424
- Mfr. Part No.:
- RPNA20/35-XL
- Brand:
- INA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | INA | |
| Product Type | Roller Bearing | |
| Inside Diameter | 20mm | |
| Race Width | 16mm | |
| Bore Type | Parallel | |
| Cage Material | Steel | |
| Outside Diameter | 35mm | |
| Maximum Speed - Grease | 13000rpm | |
| Dynamic Load Rating | 14.6kN | |
| End Type | Open | |
| Limiting Speed | 21100rpm | |
| Static Load Rating | 17.5kN | |
| Maximum Speed - Oil | 21000rpm | |
| Standards/Approvals | No | |
| Better World Claim | Extended Product Life, Saves Energy | |
| Better World Product | Yes | |
| Bearing Type | Needle | |
| Select all | ||
|---|---|---|
Brand INA | ||
Product Type Roller Bearing | ||
Inside Diameter 20mm | ||
Race Width 16mm | ||
Bore Type Parallel | ||
Cage Material Steel | ||
Outside Diameter 35mm | ||
Maximum Speed - Grease 13000rpm | ||
Dynamic Load Rating 14.6kN | ||
End Type Open | ||
Limiting Speed 21100rpm | ||
Static Load Rating 17.5kN | ||
Maximum Speed - Oil 21000rpm | ||
Standards/Approvals No | ||
Better World Claim Extended Product Life, Saves Energy | ||
Better World Product Yes | ||
Bearing Type Needle | ||
The bearings comprise drawn outer cups, plastic support rings with a concave inner profile, outer rings with a spherical outside surface, needle roller and cage assemblies and removable inner rings. Aligning needle roller bearings are X-life bearings. These bearings have optimised raceway surfaces. This gives higher load carrying capacity and longer rating life.
Compensation of misalignments
Needle roller bearings without inner ring
Needle roller bearings with inner ring
Displacement of the inner ring
Sealing
Lubrication
Operating temperature
Cages
