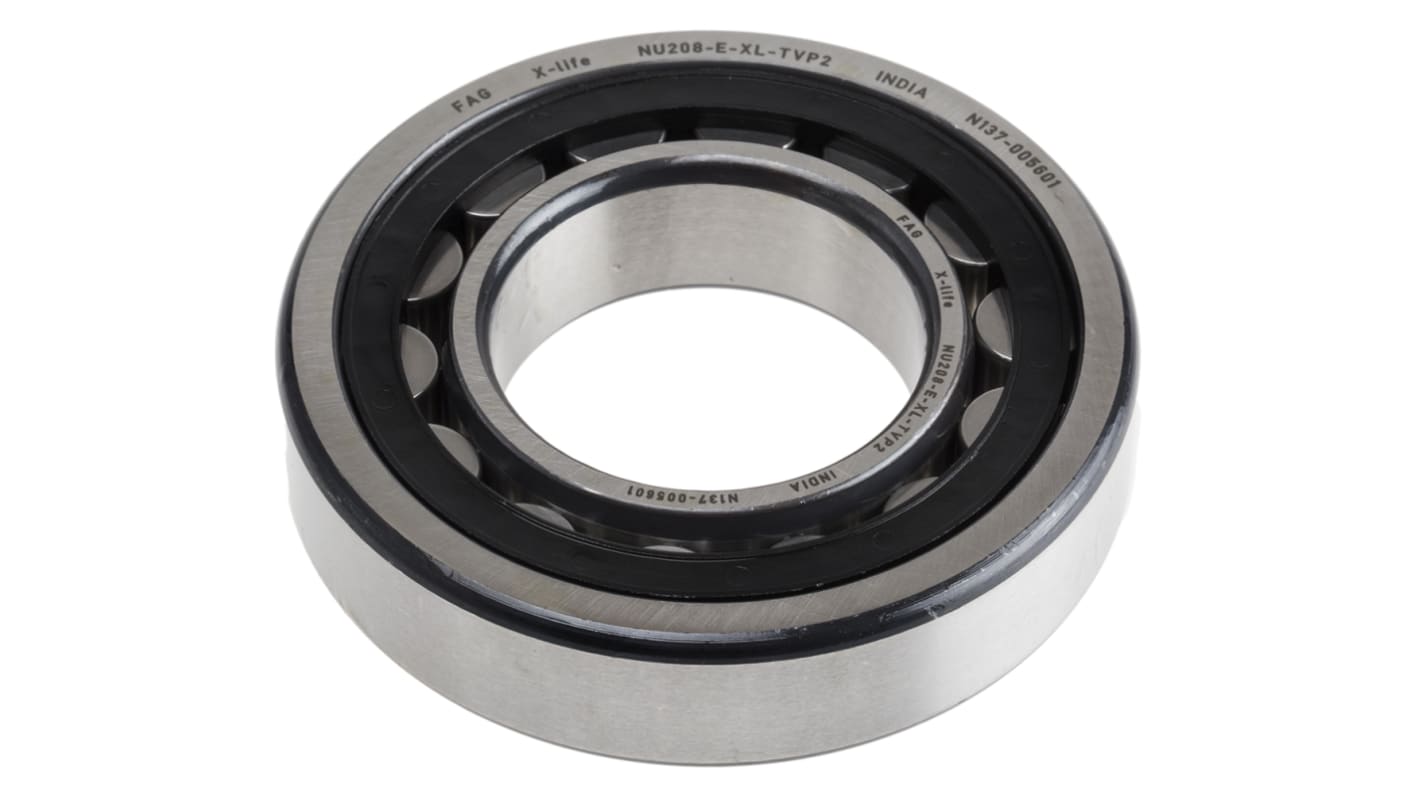

FAG NU208-E-XL-TVP2 40mm I.D Cylindrical Roller Bearing, 80mm O.D
- RS Stock No.:
- 174-1316
- Mfr. Part No.:
- NU208-E-XL-TVP2
- Brand:
- FAG
Bulk discount available
Subtotal (1 unit)*
£53.74
(exc. VAT)
£64.49
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 999,999,998 unit(s) shipping from 14 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £53.74 |
5 - 9 | £51.58 |
10 - 24 | £50.50 |
25 + | £49.44 |
*price indicative
- RS Stock No.:
- 174-1316
- Mfr. Part No.:
- NU208-E-XL-TVP2
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | FAG | |
Inside Diameter | 40mm | |
Outside Diameter | 80mm | |
Roller Bearing Type | Cylindrical | |
Race Width | 18mm | |
Bore Type | Parallel | |
Static Load Rating | 53000N | |
Number of Rows | 1 | |
Dynamic Load Rating | 63000N | |
End Type | Open | |
Limiting Speed | 10900rpm | |
Reference Speed | 7500rpm | |
Fatigue Limit Load | 6600N | |
Select all | ||
---|---|---|
Brand FAG | ||
Inside Diameter 40mm | ||
Outside Diameter 80mm | ||
Roller Bearing Type Cylindrical | ||
Race Width 18mm | ||
Bore Type Parallel | ||
Static Load Rating 53000N | ||
Number of Rows 1 | ||
Dynamic Load Rating 63000N | ||
End Type Open | ||
Limiting Speed 10900rpm | ||
Reference Speed 7500rpm | ||
Fatigue Limit Load 6600N | ||
Single row cylindrical roller bearings with cage are units comprising solid inner and outer rings together with cylindrical roller and cage assemblies. The outer rings have rigid ribs on both sides or no ribs, the inner rings have one or two rigid ribs or are designed without ribs. The cage prevents the cylindrical rollers from coming into contact with each other during rolling. The cage type bearings are very rigid, can support high radial loads and, due to the cage, are suitable for higher speeds than the full complement designs. Bearings with the suffix E have a higher capacity roller set and are thus designed for very high load carrying capacity. The bearings are separable and are therefore easier to fit and dismantle.
Non-locating bearings
Axial displacement
Semi-locating bearings
Bearings with L-section ring
Axial displacement
Locating bearings
Bearings with rib washer
Axial displacement
Semi-locating bearings
Bearings with L-section ring
Axial displacement
Locating bearings
Bearings with rib washer
