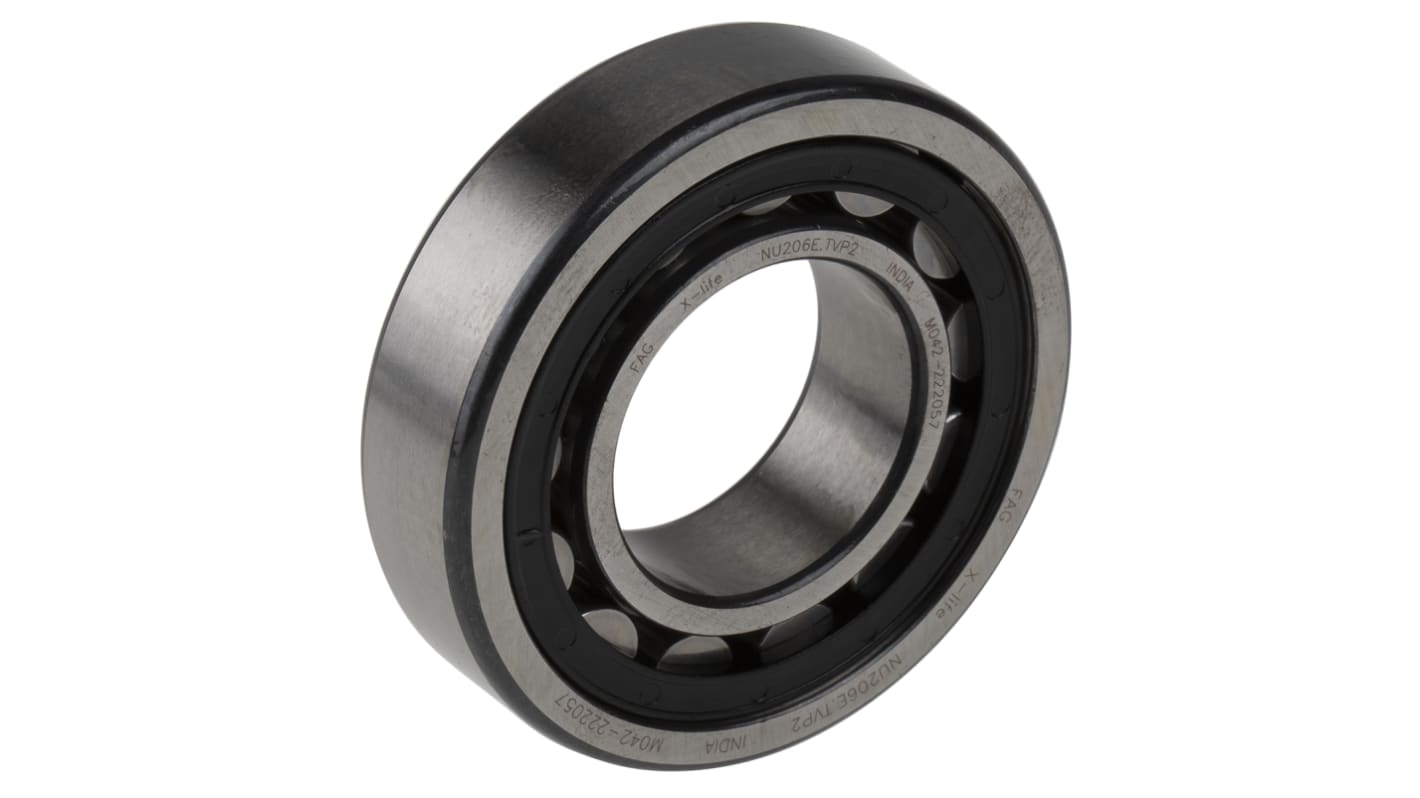

FAG NU206-E-XL-TVP2 30mm I.D Cylindrical Cylindrical Roller Bearing, 62mm O.D
- RS Stock No.:
- 174-1313
- Mfr. Part No.:
- NU206-E-XL-TVP2
- Brand:
- FAG
Subtotal (1 unit)*
£38.27
(exc. VAT)
£45.92
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 13 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £38.27 |
*price indicative
- RS Stock No.:
- 174-1313
- Mfr. Part No.:
- NU206-E-XL-TVP2
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | FAG | |
Inside Diameter | 30mm | |
Outside Diameter | 62mm | |
Roller Bearing Type | Cylindrical | |
Race Width | 16mm | |
Bore Type | Parallel | |
Static Load Rating | 37500N | |
Cage Material | PA66 | |
Number of Rows | 1 | |
Dynamic Load Rating | 46000N | |
End Type | Open | |
Limiting Speed | 16300rpm | |
Reference Speed | 9600rpm | |
Fatigue Limit Load | 4450N | |
Select all | ||
---|---|---|
Brand FAG | ||
Inside Diameter 30mm | ||
Outside Diameter 62mm | ||
Roller Bearing Type Cylindrical | ||
Race Width 16mm | ||
Bore Type Parallel | ||
Static Load Rating 37500N | ||
Cage Material PA66 | ||
Number of Rows 1 | ||
Dynamic Load Rating 46000N | ||
End Type Open | ||
Limiting Speed 16300rpm | ||
Reference Speed 9600rpm | ||
Fatigue Limit Load 4450N | ||
Schaeffler Cylindrical Roller Bearing, 30mm Inside Diameter, 62mm Outside Diameter - NU206-E-XL-TVP2
This cylindrical roller bearing offers exceptional performance and reliability in various industrial applications. With an inside diameter of 30mm and an outside diameter of 62mm, it is designed to accommodate high loads while maintaining smooth operation. This open cylindrical roller bearing is built with a PA66 cage for enhanced durability and efficiency.
Features & Benefits
• Utilises a PA66 cage for improved resilience and performance
• Dynamic load rating reaches 46000N, ideal for demanding usage
• Facilitates high-speed applications with a reference speed of 9600rpm
• Limiting speed of 16300rpm ensures suitability for high-speed operations
• Designed as a parallel bore roller bearing to optimise fit and function
• Dynamic load rating reaches 46000N, ideal for demanding usage
• Facilitates high-speed applications with a reference speed of 9600rpm
• Limiting speed of 16300rpm ensures suitability for high-speed operations
• Designed as a parallel bore roller bearing to optimise fit and function
Applications
• Used in automation and mechanical systems for reliability
• Suitable for high-speed in the aerospace industry
• Ideal for electric motors requiring robust load support
• Utilised in conveyor systems for enhanced movement efficiency
• Effective in industrial machinery demanding high load ratings
• Suitable for high-speed in the aerospace industry
• Ideal for electric motors requiring robust load support
• Utilised in conveyor systems for enhanced movement efficiency
• Effective in industrial machinery demanding high load ratings
What factors contribute to the bearing's performance in high-load applications?
The bearing features a robust design, with a static load rating of 37500N and a dynamic load rating of 46000N, allowing it to effectively manage significant stresses without compromising functionality.
How does the choice of cage material impact the bearing's operation?
The PA66 cage offers increased strength and reduced weight, ensuring smooth roller movement while enhancing the bearings longevity and reliability under various loads and speeds.
Can this bearing be used in environments with high speeds?
Yes, the bearing is engineered with a reference speed of 9600rpm and a limiting speed of 16300rpm, making it suitable for high-speed applications while minimising wear and ensuring efficient operation.
