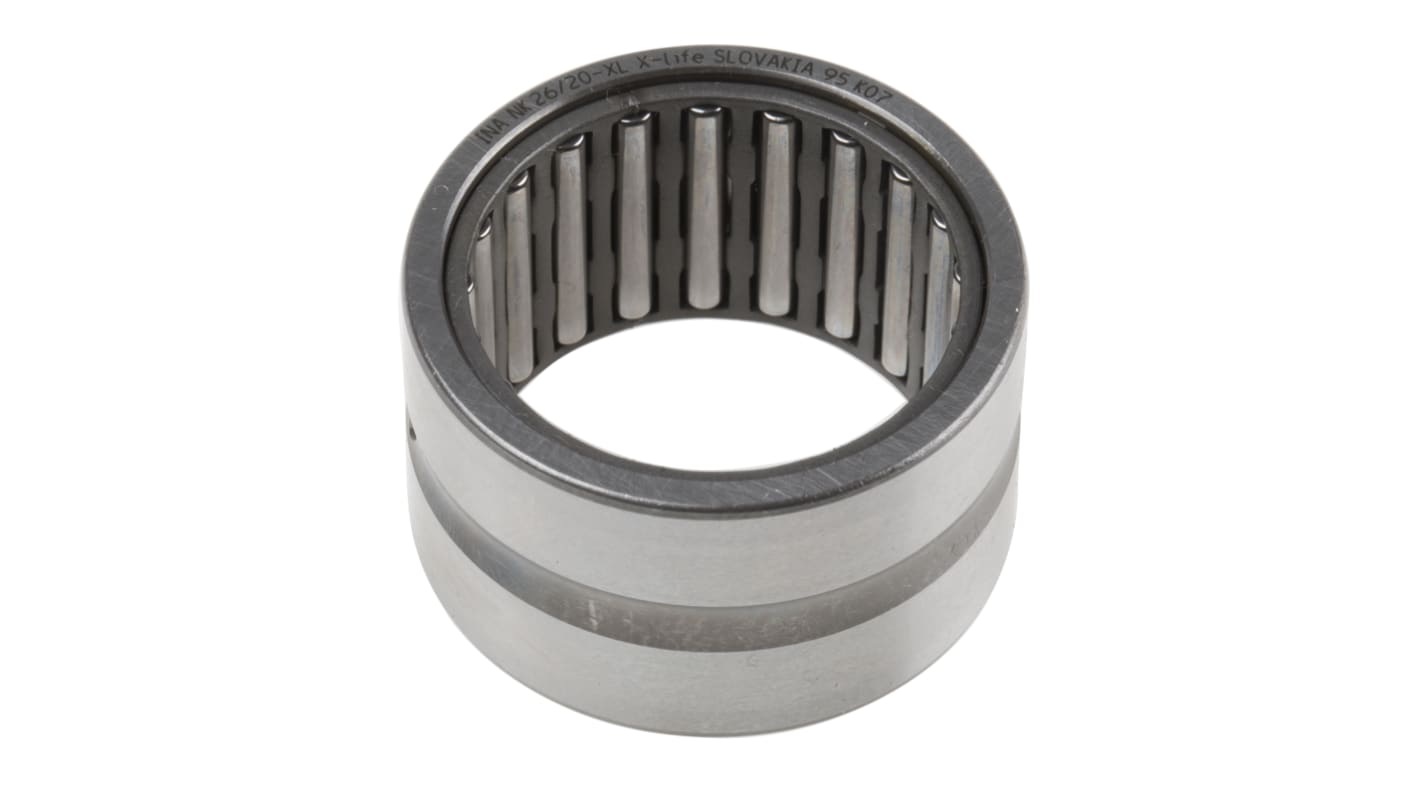

INA NK26/20-XL 26 mm ID Roller Bearing Needle, 34 mm OD
- RS Stock No.:
- 174-1202
- Mfr. Part No.:
- NK26/20-XL
- Brand:
- INA
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£25.45
(exc. VAT)
£30.54
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 10 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £25.45 |
| 5 - 9 | £24.44 |
| 10 - 24 | £23.94 |
| 25 + | £23.40 |
*price indicative
- RS Stock No.:
- 174-1202
- Mfr. Part No.:
- NK26/20-XL
- Brand:
- INA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | INA | |
| Product Type | Roller Bearing | |
| Inside Diameter | 26mm | |
| Race Width | 20mm | |
| Bore Type | Parallel | |
| Cage Material | Steel | |
| Limiting Speed | 17200rpm | |
| Outside Diameter | 34mm | |
| Dynamic Load Rating | 22kN | |
| Maximum Speed - Oil | 16000rpm | |
| Static Load Rating | 32kN | |
| Standards/Approvals | No | |
| End Type | Open | |
| Bearing Type | Needle | |
| Select all | ||
|---|---|---|
Brand INA | ||
Product Type Roller Bearing | ||
Inside Diameter 26mm | ||
Race Width 20mm | ||
Bore Type Parallel | ||
Cage Material Steel | ||
Limiting Speed 17200rpm | ||
Outside Diameter 34mm | ||
Dynamic Load Rating 22kN | ||
Maximum Speed - Oil 16000rpm | ||
Static Load Rating 32kN | ||
Standards/Approvals No | ||
End Type Open | ||
Bearing Type Needle | ||
Needle roller bearings with ribs are single or double row units comprising machined outer rings with ribs, needle roller and cage assemblies and removable inner rings. Needle roller bearings with ribs are X-life bearings. These bearings have optimised raceway surfaces. This gives higher load carrying capacity and longer rating life.
Needle roller bearings without inner ring
Needle roller bearings with inner ring
Displacement of the inner ring
Sealing
Lubrication
Sealing rings and wider inner rings
Operating temperature
Cages
Suffixes
