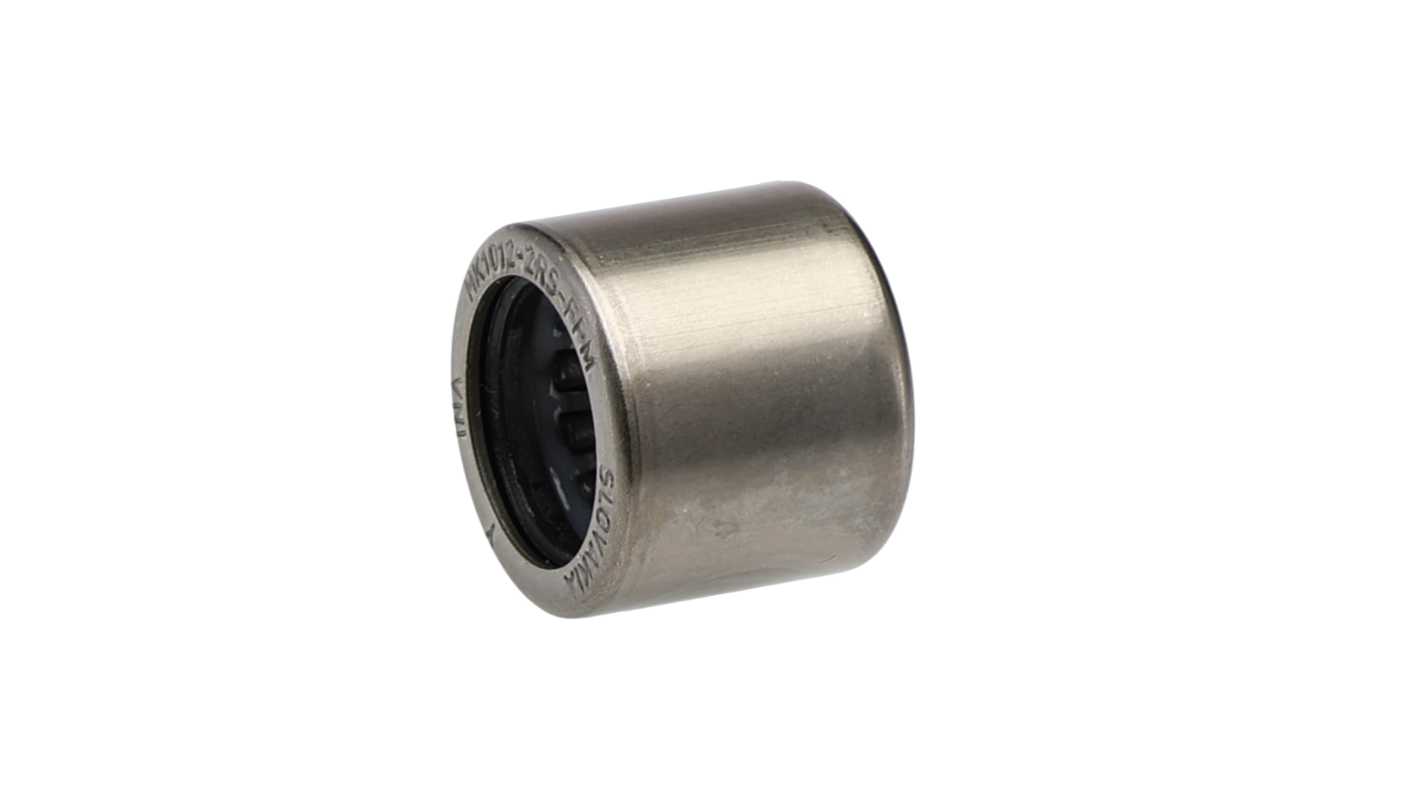

INA HK1012-2RS-FPM-DK-B-L178 10mm I.D Needle Roller Bearing, 14mm O.D
- RS Stock No.:
- 174-1079
- Mfr. Part No.:
- HK1012-2RS-FPM-DK-B-L178
- Brand:
- INA
Bulk discount available
Subtotal (1 unit)*
£8.91
(exc. VAT)
£10.69
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 23 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
- Plus 85 unit(s) shipping from 11 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £8.91 |
5 - 9 | £8.56 |
10 - 24 | £8.37 |
25 + | £8.21 |
*price indicative
- RS Stock No.:
- 174-1079
- Mfr. Part No.:
- HK1012-2RS-FPM-DK-B-L178
- Brand:
- INA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | INA | |
Inside Diameter | 10mm | |
Outside Diameter | 14mm | |
Roller Bearing Type | Needle | |
Race Width | 12mm | |
Bore Type | Parallel | |
Static Load Rating | 3350N | |
Cage Material | Sheet Steel | |
Number of Rows | 1 | |
Dynamic Load Rating | 3200N | |
End Type | Sealed | |
Limiting Speed | 14600rpm | |
Fatigue Limit Load | 380N | |
Select all | ||
---|---|---|
Brand INA | ||
Inside Diameter 10mm | ||
Outside Diameter 14mm | ||
Roller Bearing Type Needle | ||
Race Width 12mm | ||
Bore Type Parallel | ||
Static Load Rating 3350N | ||
Cage Material Sheet Steel | ||
Number of Rows 1 | ||
Dynamic Load Rating 3200N | ||
End Type Sealed | ||
Limiting Speed 14600rpm | ||
Fatigue Limit Load 380N | ||
Schaeffler Roller Bearing, 10mm Inside Diameter, 14mm Outside Diameter - HK1012-2RS-FPM-DK-B-L178
This roller bearing is designed specifically for high-performance applications. It features an inner diameter of 10mm and an outer diameter of 14mm, making it an ideal choice in various industrial contexts. With a race width of 12mm and a robust sealed design, this product is engineered for reliable operation and longevity under various loads.
Features & Benefits
• Designed for high load capacity up to 3350N
• Sealed to prevent contamination and reduce maintenance
• Offers a dynamic load rating of 3200N for performance
• Constructed with sheet steel for enhanced durability
• Capable of supporting high speeds up to 14600 rpm
• Single-row needle roller design optimises space utilisation
• Sealed to prevent contamination and reduce maintenance
• Offers a dynamic load rating of 3200N for performance
• Constructed with sheet steel for enhanced durability
• Capable of supporting high speeds up to 14600 rpm
• Single-row needle roller design optimises space utilisation
Applications
• Utilised in automation systems for efficient movement
• Suitable for mechanical assemblies requiring compact solutions
• Ideal for needing high-speed rotation
• Employed in products where space constraints exist
• Suitable for mechanical assemblies requiring compact solutions
• Ideal for needing high-speed rotation
• Employed in products where space constraints exist
What materials are used in the construction of this bearing?
The bearing is designed with a sheet steel cage, providing structural integrity and durability necessary for demanding applications.
How does the sealing feature benefit overall performance?
The sealing prevents ingress of dirt and contaminants, crucial for maintaining optimum performance and extending the lifespan of the bearing in challenging environments.
What load capacities can be expected from this product?
It features a static load rating of 3350N and a dynamic load rating of 3200 N, making it suitable for various heavy-duty applications.
Is this bearing suitable for high-speed applications?
Yes, it can operate effectively at speeds up to 14600 rpm, ideal for high-speed machinery.
