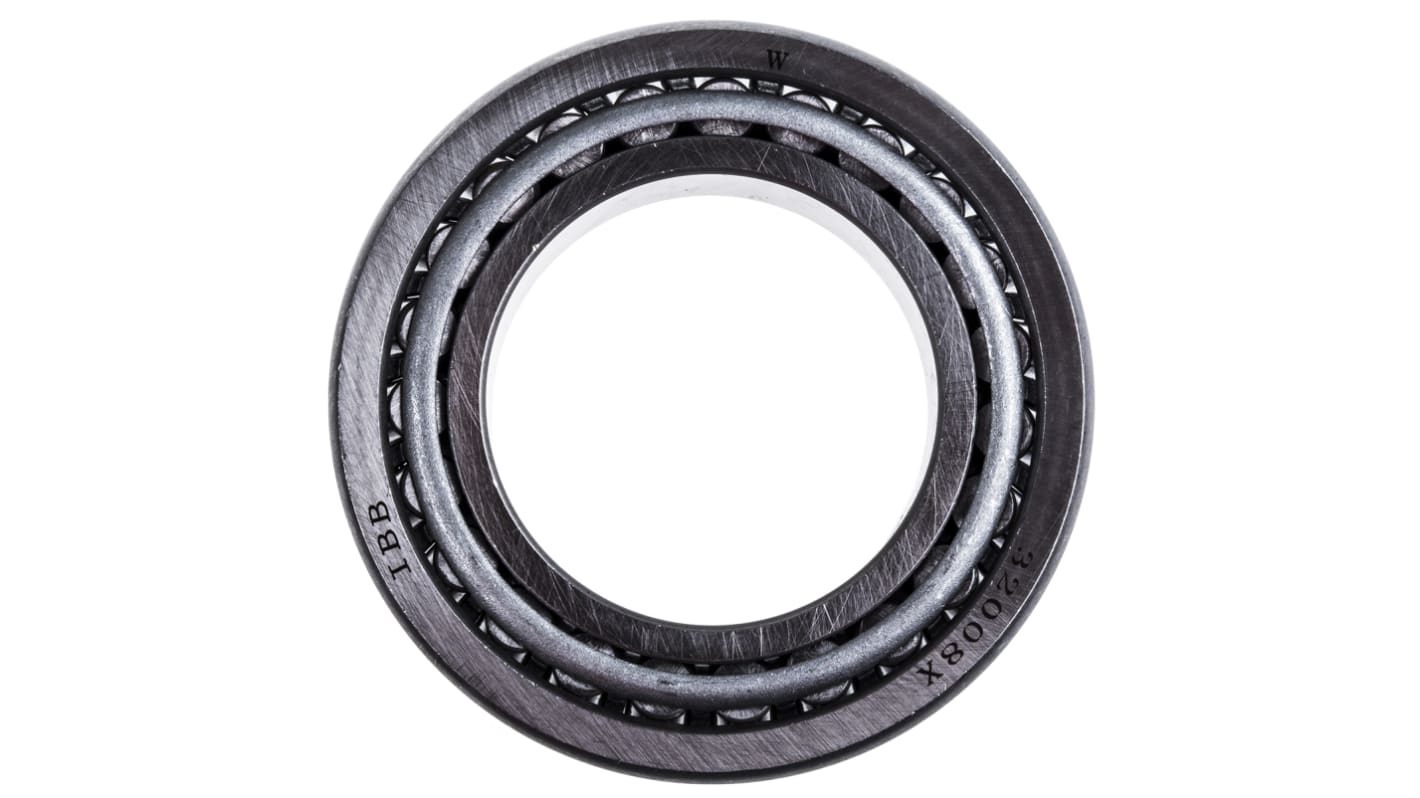

RS PRO 25mm I.D Taper Metric Roller Bearing, 62mm O.D
- RS Stock No.:
- 146-9274
- Mfr. Part No.:
- 30305
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£6.81
(exc. VAT)
£8.17
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £6.81 |
| 5 - 9 | £6.67 |
| 10 - 24 | £6.53 |
| 25 + | £6.41 |
*price indicative
- RS Stock No.:
- 146-9274
- Mfr. Part No.:
- 30305
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Inside Diameter | 25mm | |
| Outside Diameter | 62mm | |
| Roller Bearing Type | Taper | |
| Race Width | 18.25mm | |
| Bore Type | Tapered | |
| Static Load Rating | 43kN | |
| Cage Material | Steel | |
| Number of Rows | 1 | |
| Dynamic Load Rating | 55.3kN | |
| End Type | Open | |
| Reference Speed | 9500rpm | |
| Limiting Speed | 12000rpm | |
| Fatigue Limit Load | 4.75kN | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Inside Diameter 25mm | ||
Outside Diameter 62mm | ||
Roller Bearing Type Taper | ||
Race Width 18.25mm | ||
Bore Type Tapered | ||
Static Load Rating 43kN | ||
Cage Material Steel | ||
Number of Rows 1 | ||
Dynamic Load Rating 55.3kN | ||
End Type Open | ||
Reference Speed 9500rpm | ||
Limiting Speed 12000rpm | ||
Fatigue Limit Load 4.75kN | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- CN
The series designations in accordance with
ISO 355 consist of a digit and two letters.
The digit represents the contact angle. The two letters represent the diameter and width series, respectively.
This is followed by a three-digit bore diameter d [mm].
The basic designations of SKF tapered roller bearings start with the letter T, e.g.T2ED 045.
ISO 355 consist of a digit and two letters.
The digit represents the contact angle. The two letters represent the diameter and width series, respectively.
This is followed by a three-digit bore diameter d [mm].
The basic designations of SKF tapered roller bearings start with the letter T, e.g.T2ED 045.
