NSK 30209J Taper 45 mm ID Taper Roller Bearing, 85 mm OD
- RS Stock No.:
- 643-970
- Mfr. Part No.:
- 30209J
- Brand:
- NSK
Subtotal (1 unit)*
£23.88
(exc. VAT)
£28.66
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £23.88 |
*price indicative
- RS Stock No.:
- 643-970
- Mfr. Part No.:
- 30209J
- Brand:
- NSK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NSK | |
| Product Type | Taper Roller Bearing | |
| Inside Diameter | 45mm | |
| Outside Diameter | 85mm | |
| Bearing Dynamic Load Rating | 84000N | |
| Cone Width | 20.75mm | |
| Maximum Speed - Grease | 4300rpm | |
| Static Load Rating | 79500N | |
| Standards/Approvals | ISO 355 | |
| Maximum Speed - Oil | 6000rpm | |
| Bearing Type | Taper | |
| Select all | ||
|---|---|---|
Brand NSK | ||
Product Type Taper Roller Bearing | ||
Inside Diameter 45mm | ||
Outside Diameter 85mm | ||
Bearing Dynamic Load Rating 84000N | ||
Cone Width 20.75mm | ||
Maximum Speed - Grease 4300rpm | ||
Static Load Rating 79500N | ||
Standards/Approvals ISO 355 | ||
Maximum Speed - Oil 6000rpm | ||
Bearing Type Taper | ||
Non Compliant
- COO (Country of Origin):
- JP

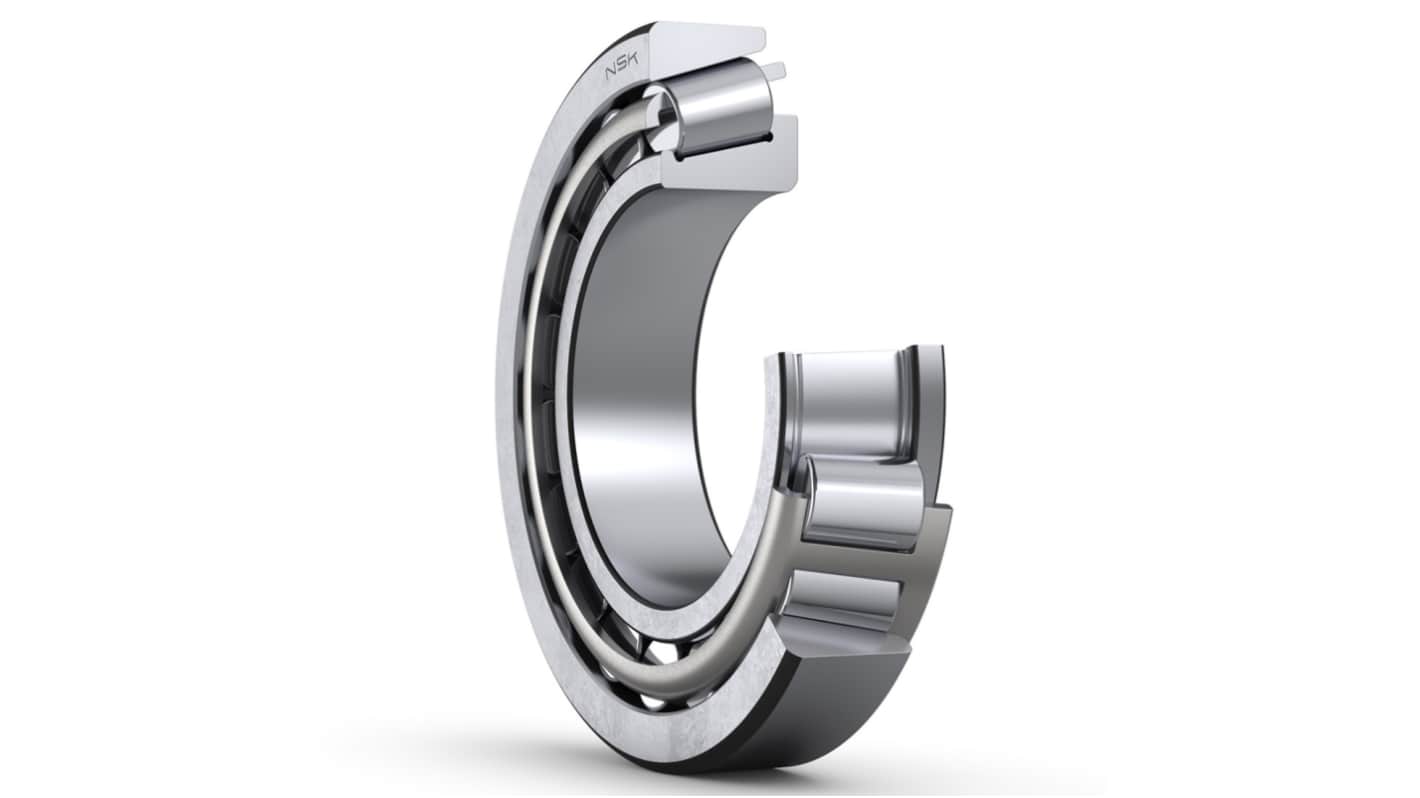

The NSK Tapered roller bearing, comprising a separable cone and cup, featuring a 45 mm bore, 85 mm outer diameter, and total width of 20.75 mm. It achieves a basic dynamic load rating of 84,000 N and a basic static load rating of 79,500 N, designed to handle both heavy radial and unidirectional axial loads. The bearing operates up to 4,300 rpm with grease and up to 6,000 rpm in oil‑bath lubrication.
Compact dimensions
Durable construction
ISO355 standard compliant
