NSK 21314EAE4 Straight 70 mm ID Spherical Roller Bearing, 150 mm OD
- RS Stock No.:
- 643-738
- Mfr. Part No.:
- 21314EAE4
- Brand:
- NSK
Subtotal (1 unit)*
£186.29
(exc. VAT)
£223.55
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £186.29 |
*price indicative
- RS Stock No.:
- 643-738
- Mfr. Part No.:
- 21314EAE4
- Brand:
- NSK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NSK | |
| Product Type | Spherical Roller Bearing | |
| Inside Diameter | 70mm | |
| Race Width | 35mm | |
| Bore Type | Straight | |
| Cage Material | Steel | |
| Maximum Speed - Grease | 3200rpm | |
| Bearing Material | Steel | |
| Outside Diameter | 150mm | |
| Internal Clearance | C0 | |
| Static Load Rating | 325000N | |
| Maximum Speed - Oil | 4000rpm | |
| Series | 213 | |
| Standards/Approvals | ISO 15312 | |
| End Type | Open | |
| Number of Rows | 2 | |
| Dynamic Load Rating | 310000N | |
| Select all | ||
|---|---|---|
Brand NSK | ||
Product Type Spherical Roller Bearing | ||
Inside Diameter 70mm | ||
Race Width 35mm | ||
Bore Type Straight | ||
Cage Material Steel | ||
Maximum Speed - Grease 3200rpm | ||
Bearing Material Steel | ||
Outside Diameter 150mm | ||
Internal Clearance C0 | ||
Static Load Rating 325000N | ||
Maximum Speed - Oil 4000rpm | ||
Series 213 | ||
Standards/Approvals ISO 15312 | ||
End Type Open | ||
Number of Rows 2 | ||
Dynamic Load Rating 310000N | ||
Non Compliant
- COO (Country of Origin):
- JP

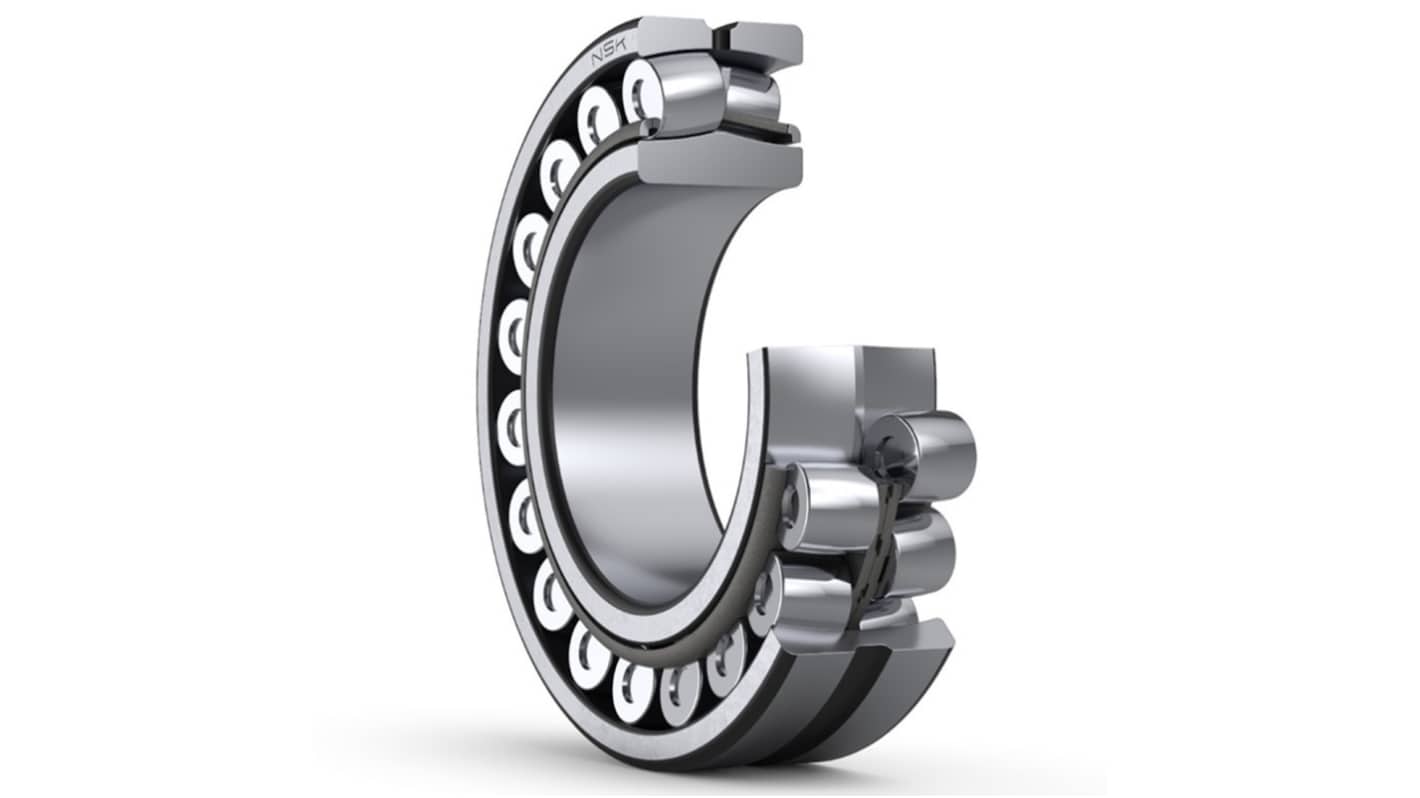

The NSK Spherical roller bearing engineered for high radial and axial loads with built-in misalignment correction. It features a steel cage, open design, and lubrication grooves for efficient maintenance and long-term durability. With a 70 mm bore, 150 mm outer diameter, and 35 mm width, it offers robust performance for demanding industrial environments.
ISO 15312 compliant
Supports dynamic and static load
Easy maintenance with lubrication access
