NTN 22214EAKW33 Tapered 70 mm ID Spherical Roller Bearing, 125 mm OD
- RS Stock No.:
- 640-247
- Mfr. Part No.:
- 22214EAKW33
- Brand:
- NTN
Subtotal (1 unit)*
£129.82
(exc. VAT)
£155.78
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 31 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £129.82 |
*price indicative
- RS Stock No.:
- 640-247
- Mfr. Part No.:
- 22214EAKW33
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Spherical Roller Bearing | |
| Inside Diameter | 70 mm | |
| Race Width | 31mm | |
| Bore Type | Tapered | |
| Cage Material | Steel | |
| Outside Diameter | 125 mm | |
| Limiting Speed | 6500rpm | |
| Maximum Speed - Grease | 4100rpm | |
| Maximum Speed - Oil | 5200rpm | |
| Standards/Approvals | No | |
| End Type | Open | |
| Dynamic Load Rating | 225.00kN | |
| Internal Clearance | CN | |
| Series | 222 | |
| Static Load Rating | 240.00kN | |
| Number of Rows | 2 | |
| Bearing Material | Through Hardened Steel | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Spherical Roller Bearing | ||
Inside Diameter 70 mm | ||
Race Width 31mm | ||
Bore Type Tapered | ||
Cage Material Steel | ||
Outside Diameter 125 mm | ||
Limiting Speed 6500rpm | ||
Maximum Speed - Grease 4100rpm | ||
Maximum Speed - Oil 5200rpm | ||
Standards/Approvals No | ||
End Type Open | ||
Dynamic Load Rating 225.00kN | ||
Internal Clearance CN | ||
Series 222 | ||
Static Load Rating 240.00kN | ||
Number of Rows 2 | ||
Bearing Material Through Hardened Steel | ||
Non Compliant
- COO (Country of Origin):
- IT

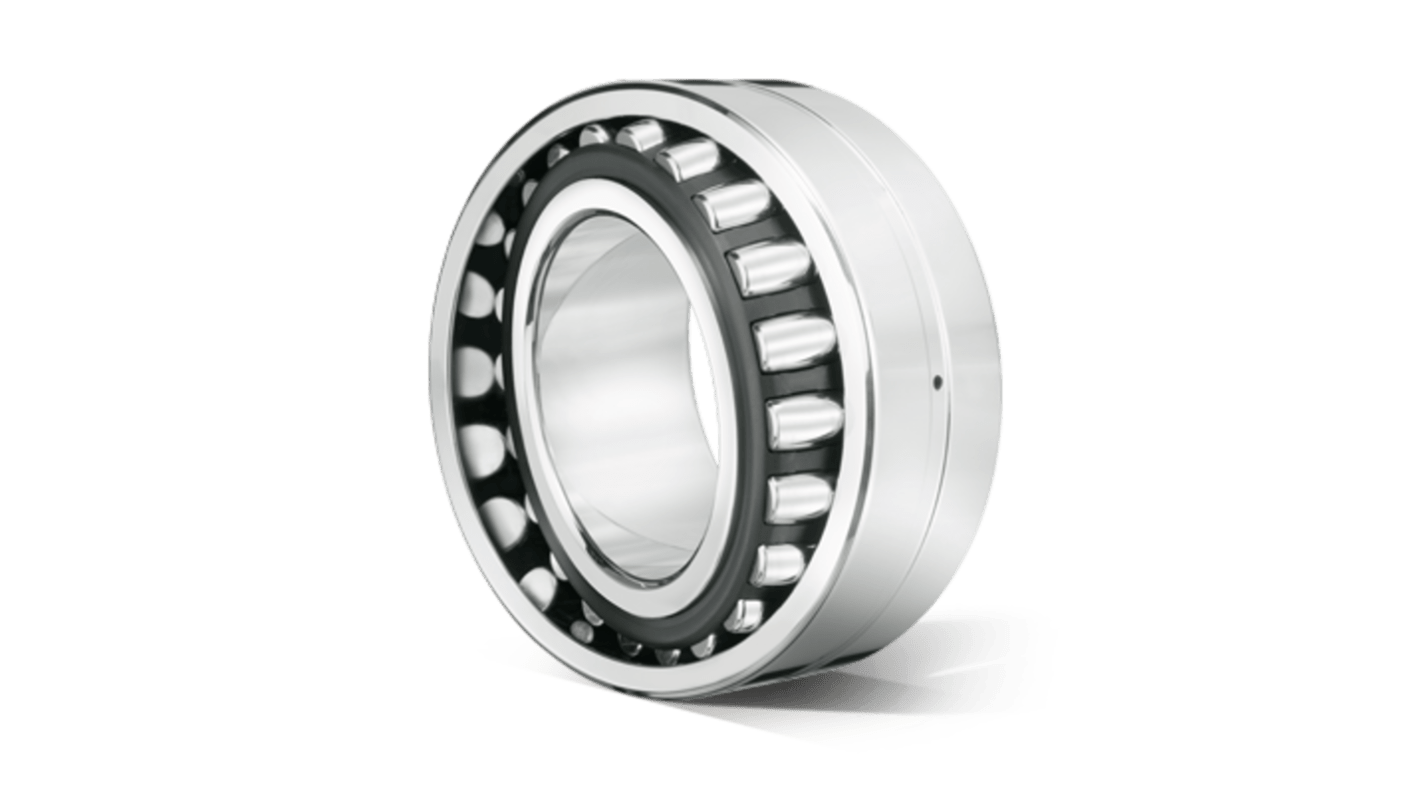

The NTN Spherical Roller Bearing is designed to withstand substantial loads and misalignments, making it ideal for demanding operating conditions. This type of bearing excels in environments such as crushers, vibrating screens, and heavy handling applications. With NTN's ULTAGE design, it delivers exceptional durability and extended service life as a standard feature, offering unparalleled endurance and reliability in harsh conditions.
High impacts resistance
High vibrations resistance
