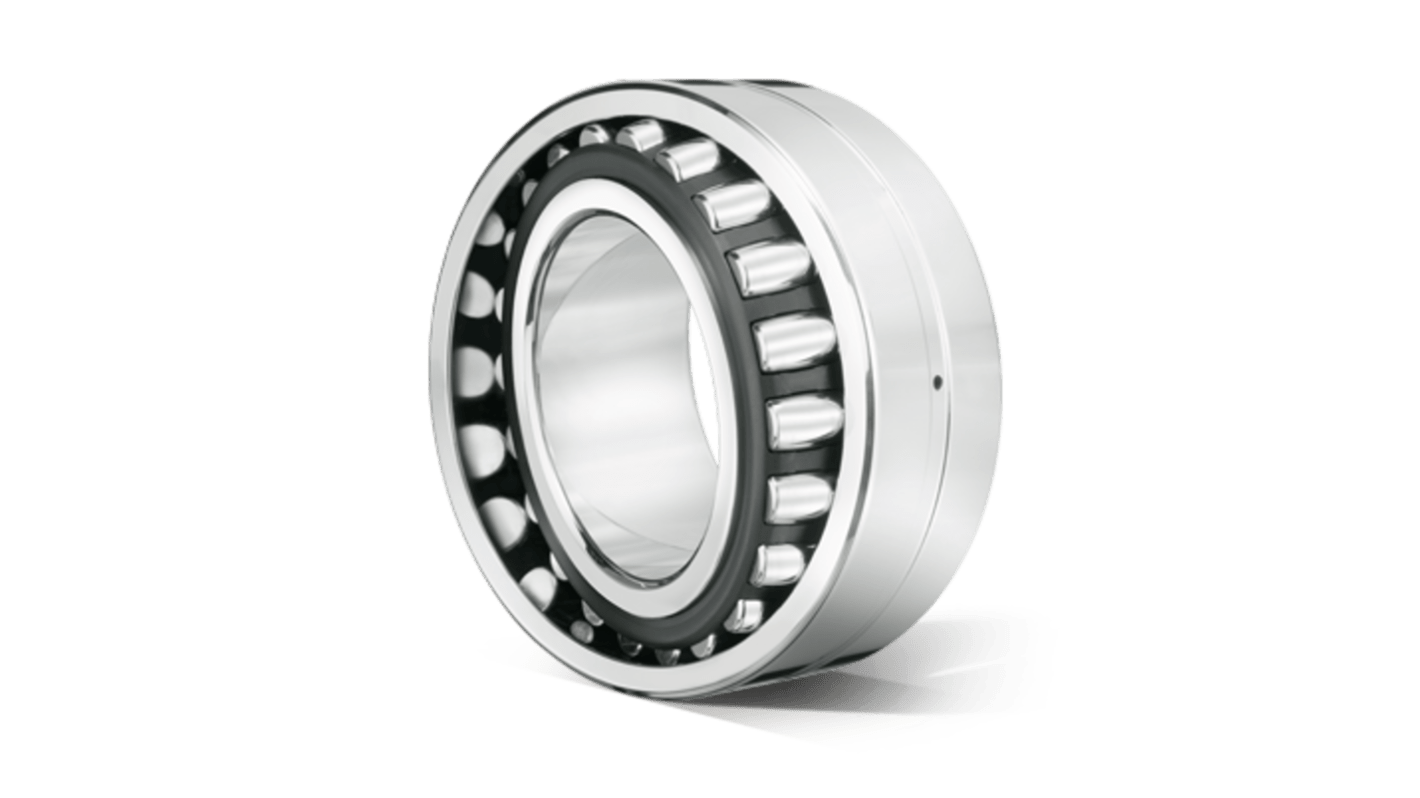

NTN 22215EAKW33ZZC3 Tapered 75 mm ID Spherical Roller Bearing, 130 mm OD
- RS Stock No.:
- 640-231
- Mfr. Part No.:
- 22215EAKW33ZZC3
- Brand:
- NTN
Subtotal (1 unit)*
£185.23
(exc. VAT)
£222.28
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 18 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £185.23 |
*price indicative
- RS Stock No.:
- 640-231
- Mfr. Part No.:
- 22215EAKW33ZZC3
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Spherical Roller Bearing | |
| Inside Diameter | 75mm | |
| Race Width | 31mm | |
| Bore Type | Tapered | |
| Cage Material | Steel | |
| Number of Rows | 2 | |
| Bearing Material | Through Hardened Steel | |
| Limiting Speed | 6200rpm | |
| Maximum Speed - Grease | 4000rpm | |
| Maximum Speed - Oil | 5000rpm | |
| Series | 222 | |
| Standards/Approvals | No | |
| End Type | Open | |
| Dynamic Load Rating | 244.00kN | |
| Outside Diameter | 130mm | |
| Static Load Rating | 249.00kN | |
| Internal Clearance | C3 | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Spherical Roller Bearing | ||
Inside Diameter 75mm | ||
Race Width 31mm | ||
Bore Type Tapered | ||
Cage Material Steel | ||
Number of Rows 2 | ||
Bearing Material Through Hardened Steel | ||
Limiting Speed 6200rpm | ||
Maximum Speed - Grease 4000rpm | ||
Maximum Speed - Oil 5000rpm | ||
Series 222 | ||
Standards/Approvals No | ||
End Type Open | ||
Dynamic Load Rating 244.00kN | ||
Outside Diameter 130mm | ||
Static Load Rating 249.00kN | ||
Internal Clearance C3 | ||
Non Compliant
- COO (Country of Origin):
- IT
The NTN Spherical Roller Bearing is designed to withstand substantial loads and misalignments, making it ideal for demanding operating conditions. This type of bearing excels in environments such as crushers, vibrating screens, and heavy handling applications. With NTN's ULTAGE design, it delivers exceptional durability and extended service life as a standard feature, offering unparalleled endurance and reliability in harsh conditions.
High impacts resistance
High vibrations resistance
