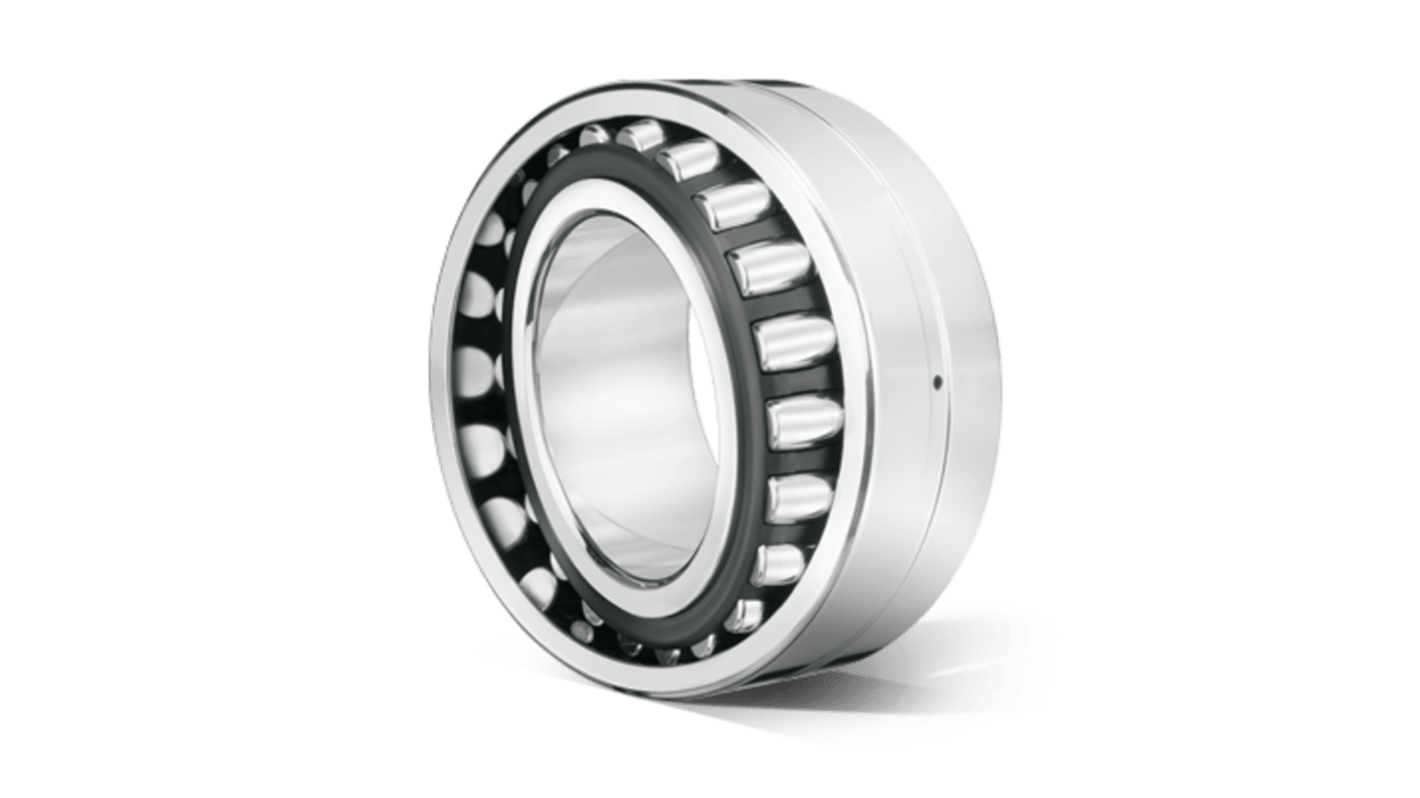

NTN 22315EMKW33C3 Tapered 75 mm ID Spherical Roller Bearing, 160 mm OD
- RS Stock No.:
- 640-126
- Mfr. Part No.:
- 22315EMKW33C3
- Brand:
- NTN
Subtotal (1 unit)*
£353.14
(exc. VAT)
£423.77
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £353.14 |
*price indicative
- RS Stock No.:
- 640-126
- Mfr. Part No.:
- 22315EMKW33C3
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Spherical Roller Bearing | |
| Inside Diameter | 75mm | |
| Race Width | 55mm | |
| Bore Type | Tapered | |
| Cage Material | Brass | |
| Dynamic Load Rating | 491.00kN | |
| Internal Clearance | C3 | |
| Static Load Rating | 467.00kN | |
| End Type | Open | |
| Number of Rows | 2 | |
| Outside Diameter | 160mm | |
| Series | 223 | |
| Limiting Speed | 4200rpm | |
| Maximum Speed - Grease | 2900rpm | |
| Maximum Speed - Oil | 3600rpm | |
| Standards/Approvals | No | |
| Bearing Material | Through Hardened Steel | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Spherical Roller Bearing | ||
Inside Diameter 75mm | ||
Race Width 55mm | ||
Bore Type Tapered | ||
Cage Material Brass | ||
Dynamic Load Rating 491.00kN | ||
Internal Clearance C3 | ||
Static Load Rating 467.00kN | ||
End Type Open | ||
Number of Rows 2 | ||
Outside Diameter 160mm | ||
Series 223 | ||
Limiting Speed 4200rpm | ||
Maximum Speed - Grease 2900rpm | ||
Maximum Speed - Oil 3600rpm | ||
Standards/Approvals No | ||
Bearing Material Through Hardened Steel | ||
Non Compliant
The NTN Spherical Roller Bearing is designed to withstand substantial loads and misalignments, making it ideal for demanding operating conditions. This type of bearing excels in environments such as crushers, vibrating screens, and heavy handling applications. With NTN's ULTAGE design, it delivers exceptional durability and extended service life as a standard feature, offering unparalleled endurance and reliability in harsh conditions.
High impacts resistance
High vibrations resistance
