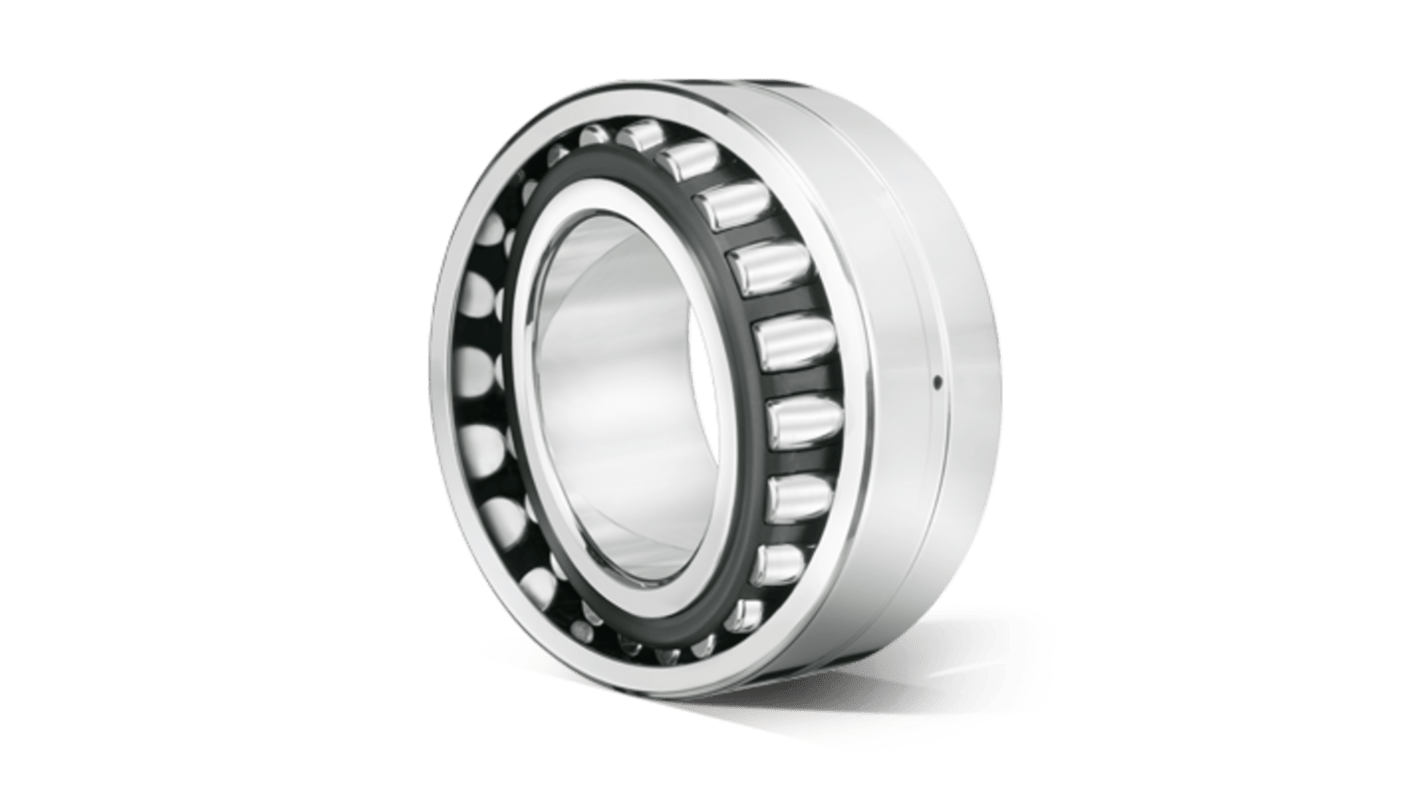

NTN 22313EMW33 Round 65 mm ID Spherical Roller Bearing, 140 mm OD
- RS Stock No.:
- 640-120
- Mfr. Part No.:
- 22313EMW33
- Brand:
- NTN
Subtotal (1 unit)*
£283.23
(exc. VAT)
£339.88
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £283.23 |
*price indicative
- RS Stock No.:
- 640-120
- Mfr. Part No.:
- 22313EMW33
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Spherical Roller Bearing | |
| Inside Diameter | 65mm | |
| Race Width | 48mm | |
| Bore Type | Round | |
| Cage Material | Brass | |
| Static Load Rating | 343.00kN | |
| Number of Rows | 2 | |
| Bearing Material | Through Hardened Steel | |
| Internal Clearance | CN | |
| Standards/Approvals | No | |
| Series | 223 | |
| Maximum Speed - Oil | 4100rpm | |
| Outside Diameter | 140mm | |
| Maximum Speed - Grease | 3300rpm | |
| End Type | Open | |
| Dynamic Load Rating | 369.00kN | |
| Limiting Speed | 4800rpm | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Spherical Roller Bearing | ||
Inside Diameter 65mm | ||
Race Width 48mm | ||
Bore Type Round | ||
Cage Material Brass | ||
Static Load Rating 343.00kN | ||
Number of Rows 2 | ||
Bearing Material Through Hardened Steel | ||
Internal Clearance CN | ||
Standards/Approvals No | ||
Series 223 | ||
Maximum Speed - Oil 4100rpm | ||
Outside Diameter 140mm | ||
Maximum Speed - Grease 3300rpm | ||
End Type Open | ||
Dynamic Load Rating 369.00kN | ||
Limiting Speed 4800rpm | ||
Non Compliant
The NTN Spherical Roller Bearing is designed to withstand substantial loads and misalignments, making it ideal for demanding operating conditions. This type of bearing excels in environments such as crushers, vibrating screens, and heavy handling applications. With NTN's ULTAGE design, it delivers exceptional durability and extended service life as a standard feature, offering unparalleled endurance and reliability in harsh conditions.
High impacts resistance
High vibrations resistance
