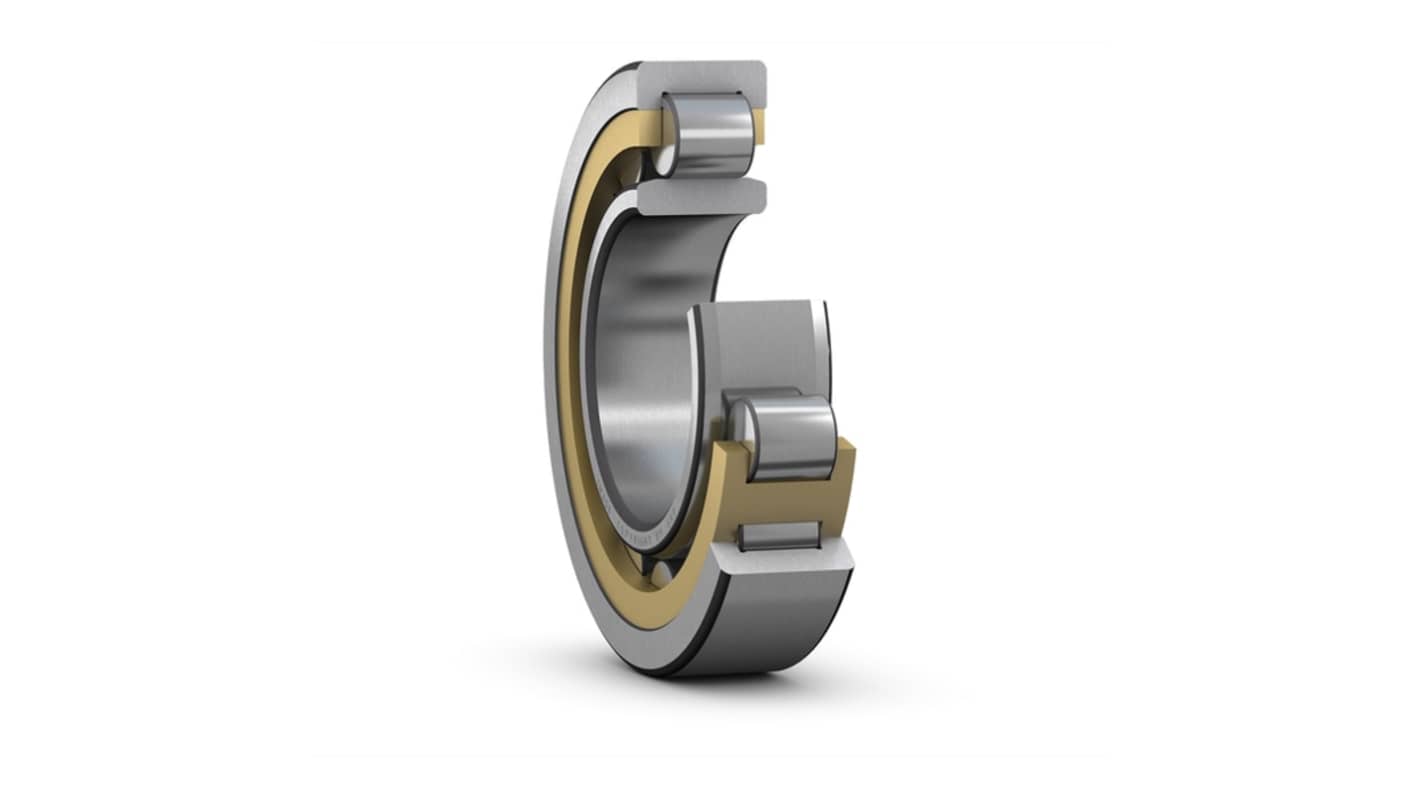

SKF NU 1013 ML 65 mm ID Cylindrical Roller Bearing, 100 mm OD
- RS Stock No.:
- 586-978
- Mfr. Part No.:
- NU 1013 ML
- Brand:
- SKF
Subtotal (1 pack of 5 units)*
£947.91
(exc. VAT)
£1,137.49
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 11 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £947.91 | £189.582 |
*price indicative
- RS Stock No.:
- 586-978
- Mfr. Part No.:
- NU 1013 ML
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Cylindrical Roller Bearing | |
| Inside Diameter | 65mm | |
| Race Width | 18mm | |
| Bore Type | Parallel | |
| Roller Material | Bearing Steel | |
| Cage Material | Machined Metal | |
| Standards/Approvals | RoHS Compliance | |
| Limiting Speed | 12000rpm | |
| Bearing Material | Steel | |
| Number of Rows | 1 | |
| Static Load Rating | 46.5kN | |
| Outside Diameter | 100mm | |
| Series | NU | |
| End Type | Open | |
| Dynamic Load Rating | 44kN | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Cylindrical Roller Bearing | ||
Inside Diameter 65mm | ||
Race Width 18mm | ||
Bore Type Parallel | ||
Roller Material Bearing Steel | ||
Cage Material Machined Metal | ||
Standards/Approvals RoHS Compliance | ||
Limiting Speed 12000rpm | ||
Bearing Material Steel | ||
Number of Rows 1 | ||
Static Load Rating 46.5kN | ||
Outside Diameter 100mm | ||
Series NU | ||
End Type Open | ||
Dynamic Load Rating 44kN | ||
- COO (Country of Origin):
- DE
The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design
