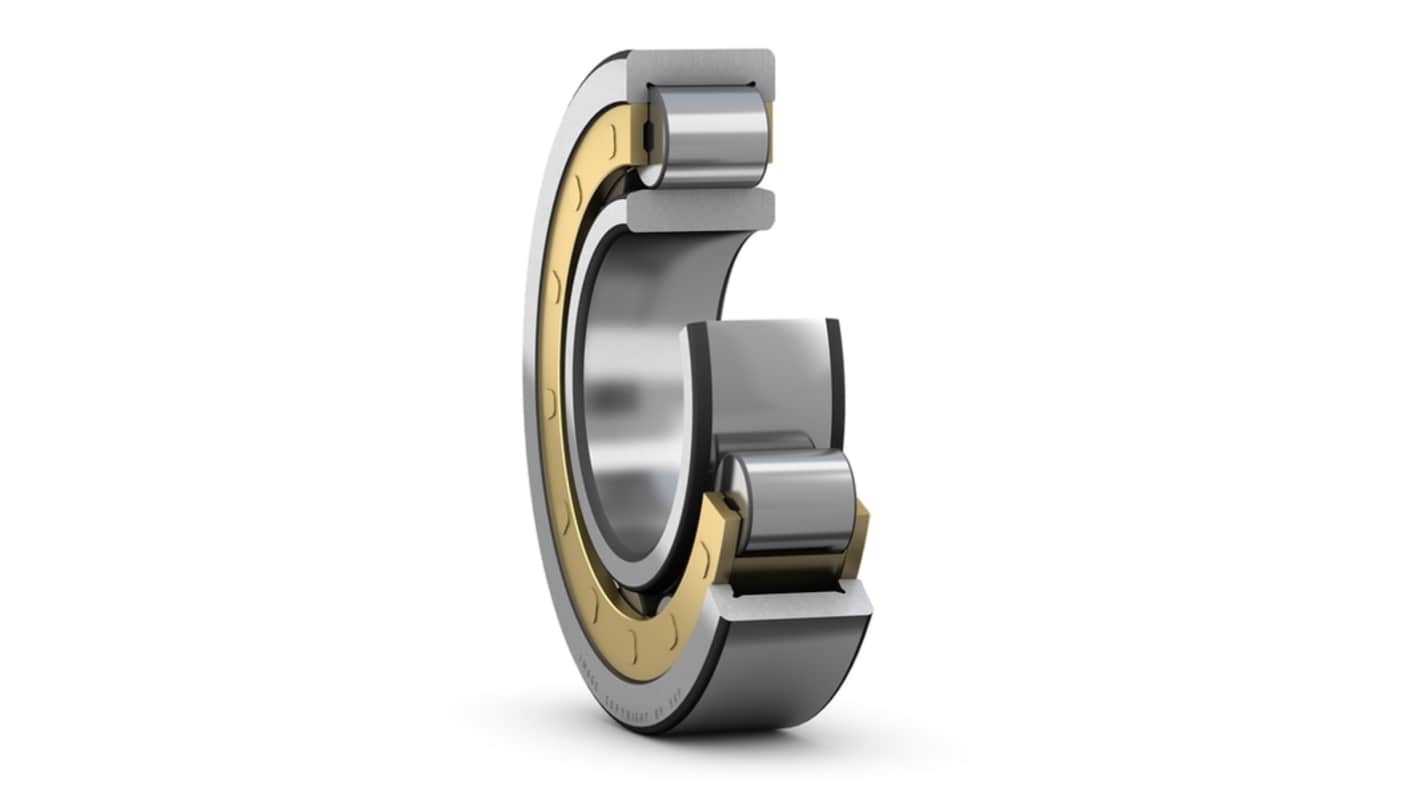

SKF NU 309 ECM 45 mm I.D Cylindrical Roller Bearing, 100 mm O.D

View all Roller Bearings

Subtotal (1 unit)*

£254.48

(exc. VAT)

£305.38

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£254.48

*price indicative

RS Stock No.:
463-075
Mfr. Part No.:
NU 309 ECM
Brand:
SKF
Find similar products by selecting one or more attributes.
Select all

Brand

SKF

Product Type

Cylindrical Roller Bearing

Inside Diameter

45 mm

Race Width

25mm

Bore Type

Cylindrical

Cage Material

Machined Brass

Static Load Rating

100kN

Series

NU

Internal Clearance

CN

Outside Diameter

100 mm

Number of Rows

1

Standards/Approvals

RoHS

Limiting Speed

8500rpm

Dynamic Load Rating

112kN

COO (Country of Origin):
DE
The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

Low friction

Long service life

Accommodate axial displacement in both directions
