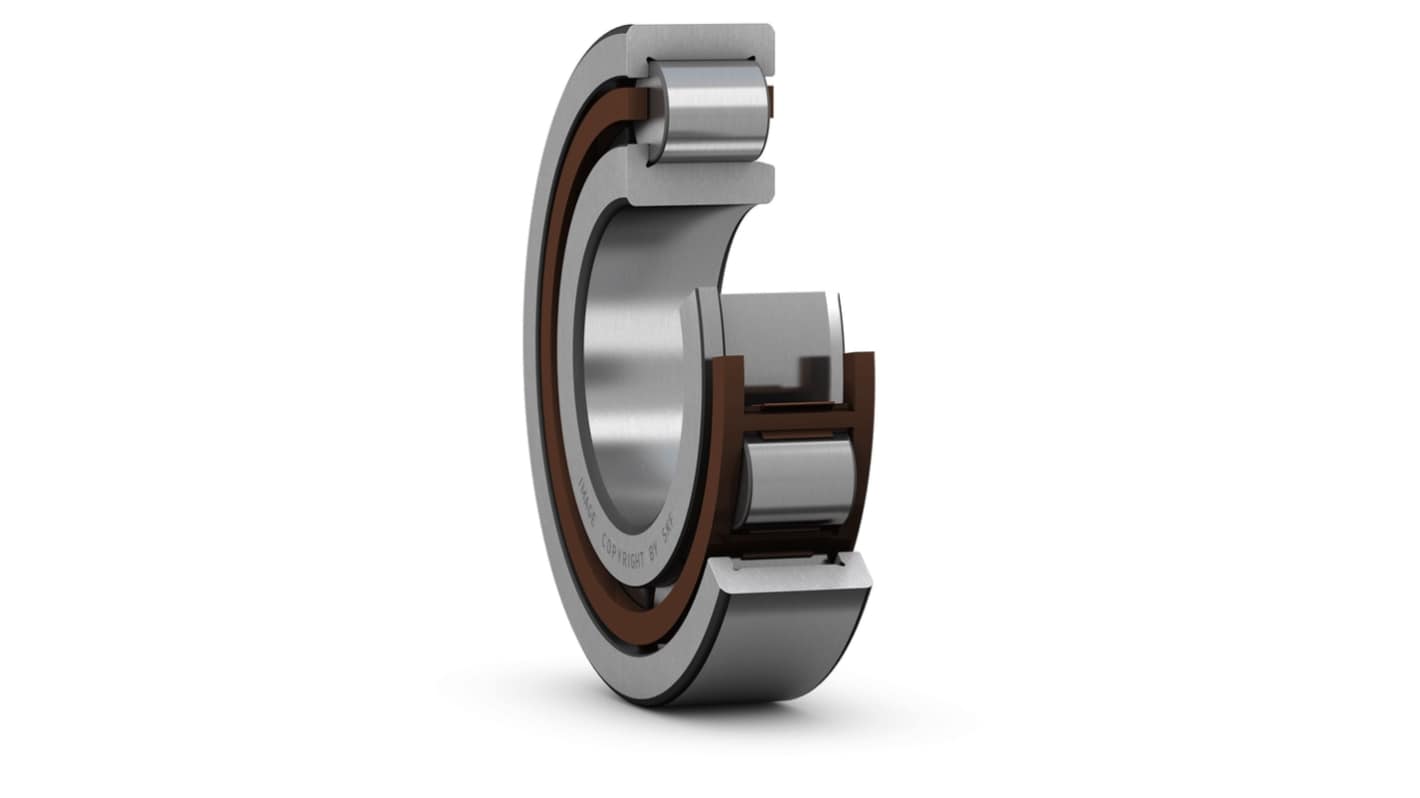

SKF NJ 204 ECP 20 mm ID Cylindrical Roller Bearing, 47 mm OD
- RS Stock No.:
- 586-954
- Mfr. Part No.:
- NJ 204 ECP
- Brand:
- SKF
Subtotal (1 pack of 10 units)*
£265.44
(exc. VAT)
£318.53
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 26 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £265.44 | £26.544 |
*price indicative
- RS Stock No.:
- 586-954
- Mfr. Part No.:
- NJ 204 ECP
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Cylindrical Roller Bearing | |
| Inside Diameter | 20mm | |
| Race Width | 14mm | |
| Bore Type | Parallel | |
| Cage Material | Non-Metallic | |
| Roller Material | Bearing Steel | |
| End Type | Open | |
| Series | NJ | |
| Outside Diameter | 47mm | |
| Number of Rows | 1 | |
| Dynamic Load Rating | 28.5kN | |
| Limiting Speed | 19000rpm | |
| Standards/Approvals | RoHS Compliance | |
| Static Load Rating | 22kN | |
| Bearing Material | Bearing Steel | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Cylindrical Roller Bearing | ||
Inside Diameter 20mm | ||
Race Width 14mm | ||
Bore Type Parallel | ||
Cage Material Non-Metallic | ||
Roller Material Bearing Steel | ||
End Type Open | ||
Series NJ | ||
Outside Diameter 47mm | ||
Number of Rows 1 | ||
Dynamic Load Rating 28.5kN | ||
Limiting Speed 19000rpm | ||
Standards/Approvals RoHS Compliance | ||
Static Load Rating 22kN | ||
Bearing Material Bearing Steel | ||
- COO (Country of Origin):
- DE
The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJ design bearings can accommodate axial displacement in one direction. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Locate the shaft axially in one direction
Separable design
