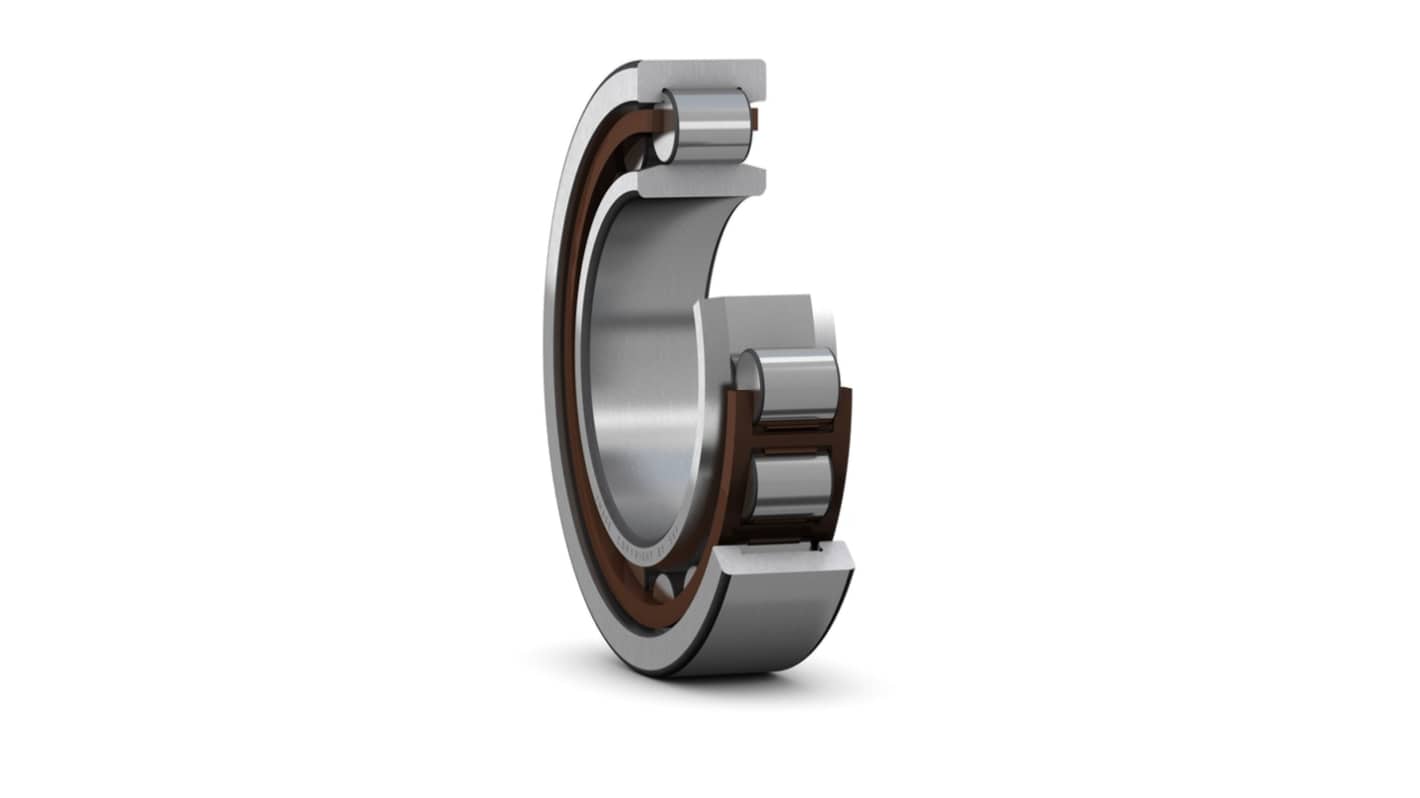

SKF NU 2209 ECP/C3 55 mm ID Cylindrical Roller Bearing, 100 mm OD
- RS Stock No.:
- 586-108
- Mfr. Part No.:
- NU 2209 ECP/C3
- Brand:
- SKF
Subtotal (1 pack of 5 units)*
£259.81
(exc. VAT)
£311.77
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 18 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £259.81 | £51.962 |
*price indicative
- RS Stock No.:
- 586-108
- Mfr. Part No.:
- NU 2209 ECP/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Cylindrical Roller Bearing | |
| Inside Diameter | 55mm | |
| Race Width | 25mm | |
| Bore Type | Parallel | |
| Cage Material | Non-Metallic | |
| Roller Material | Bearing Steel | |
| Bearing Material | Steel | |
| Series | NU | |
| Limiting Speed | 9500rpm | |
| Standards/Approvals | RoHS Compliance | |
| End Type | Open | |
| Number of Rows | 1 | |
| Static Load Rating | 81.5kN | |
| Outside Diameter | 100mm | |
| Dynamic Load Rating | 85kN | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Cylindrical Roller Bearing | ||
Inside Diameter 55mm | ||
Race Width 25mm | ||
Bore Type Parallel | ||
Cage Material Non-Metallic | ||
Roller Material Bearing Steel | ||
Bearing Material Steel | ||
Series NU | ||
Limiting Speed 9500rpm | ||
Standards/Approvals RoHS Compliance | ||
End Type Open | ||
Number of Rows 1 | ||
Static Load Rating 81.5kN | ||
Outside Diameter 100mm | ||
Dynamic Load Rating 85kN | ||
- COO (Country of Origin):
- DE
The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design
