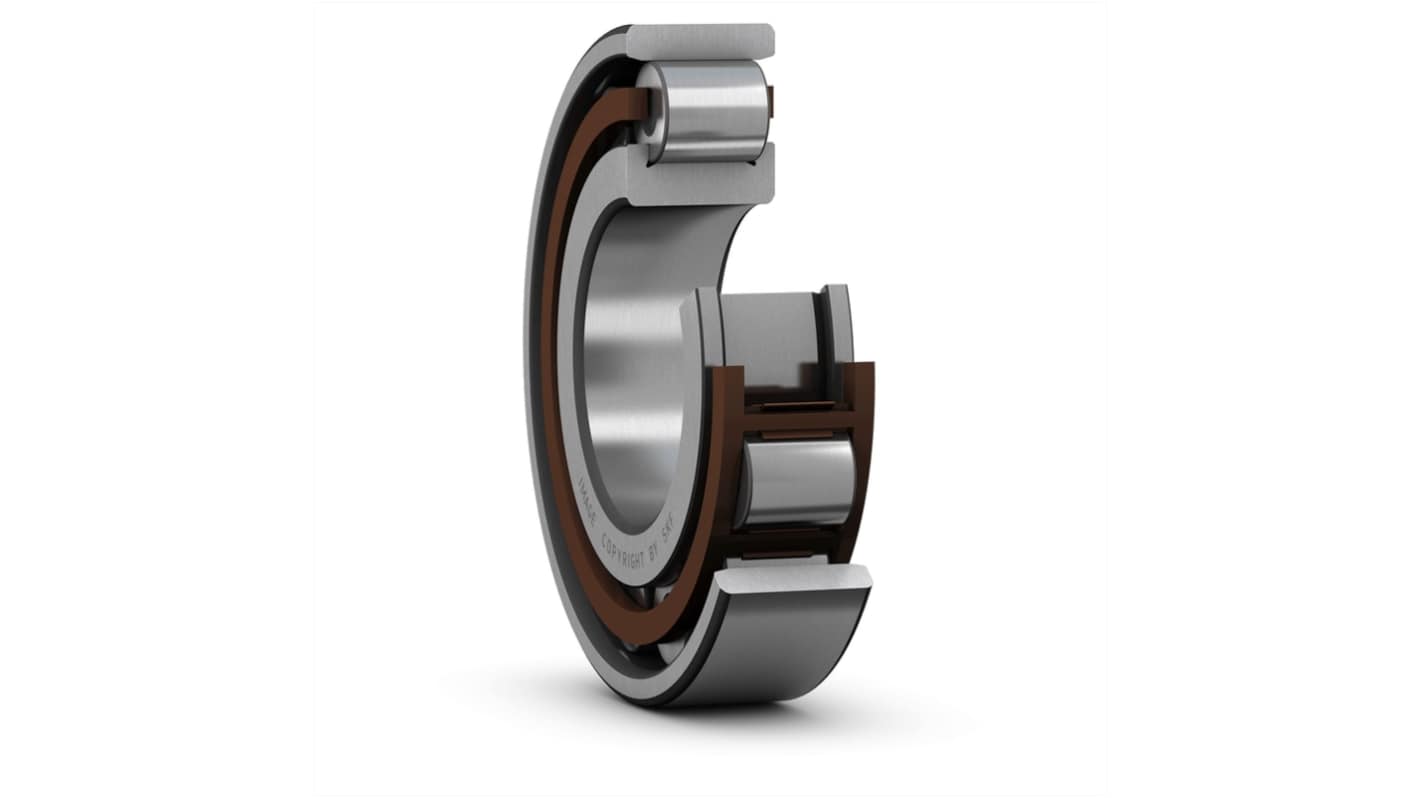

SKF N 215 ECP/C3 75 mm ID Cylindrical Roller Bearing, 130 mm OD
- RS Stock No.:
- 585-843
- Mfr. Part No.:
- N 215 ECP/C3
- Brand:
- SKF
Subtotal (1 pack of 2 units)*
£430.60
(exc. VAT)
£516.72
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 18 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £430.60 | £215.30 |
*price indicative
- RS Stock No.:
- 585-843
- Mfr. Part No.:
- N 215 ECP/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Cylindrical Roller Bearing | |
| Inside Diameter | 75mm | |
| Race Width | 25mm | |
| Bore Type | Parallel | |
| Roller Material | Bearing Steel | |
| Cage Material | Non-Metallic | |
| Static Load Rating | 156kN | |
| Outside Diameter | 130mm | |
| Dynamic Load Rating | 150kN | |
| End Type | Open | |
| Standards/Approvals | RoHS Compliance | |
| Number of Rows | 1 | |
| Series | N | |
| Limiting Speed | 6000rpm | |
| Bearing Material | Bearing Steel | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Cylindrical Roller Bearing | ||
Inside Diameter 75mm | ||
Race Width 25mm | ||
Bore Type Parallel | ||
Roller Material Bearing Steel | ||
Cage Material Non-Metallic | ||
Static Load Rating 156kN | ||
Outside Diameter 130mm | ||
Dynamic Load Rating 150kN | ||
End Type Open | ||
Standards/Approvals RoHS Compliance | ||
Number of Rows 1 | ||
Series N | ||
Limiting Speed 6000rpm | ||
Bearing Material Bearing Steel | ||
- COO (Country of Origin):
- DE
The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the inner ring and no flanges on the outer ring, N design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design
