SKF NK30/20TN 30 mm I.D Roller Bearing Needle, 40 mm O.D
- RS Stock No.:
- 513-795
- Mfr. Part No.:
- NK30/20TN
- Brand:
- SKF
Bulk discount available
Subtotal (1 unit)*
£27.38
(exc. VAT)
£32.86
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £27.38 |
| 5 - 9 | £26.29 |
| 10 - 24 | £25.75 |
| 25 + | £25.15 |
*price indicative
- RS Stock No.:
- 513-795
- Mfr. Part No.:
- NK30/20TN
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Roller Bearing | |
| Inside Diameter | 30 mm | |
| Race Width | 20mm | |
| Bore Type | Parallel | |
| Roller Material | Carbon Chrome Steel | |
| Cage Material | Reinforced Polyamide 66 | |
| Maximum Speed - Grease | 8500rpm | |
| Maximum Speed - Oil | 13000rpm | |
| Standards/Approvals | ISO 199:1997, ISO 1000:1992, ISO 14001, DIN 17 230:1980, ISO 492:1994, ISO 582:1995, ISO 5753:1991 | |
| End Type | Open | |
| Dynamic Load Rating | 22.9kN | |
| Outside Diameter | 40 mm | |
| Static Load Rating | 38kN | |
| Bearing Material | Carbon Chrome Steel | |
| Number of Rows | 1 | |
| Limiting Speed | 15000rpm | |
| Bearing Type | Needle | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Roller Bearing | ||
Inside Diameter 30 mm | ||
Race Width 20mm | ||
Bore Type Parallel | ||
Roller Material Carbon Chrome Steel | ||
Cage Material Reinforced Polyamide 66 | ||
Maximum Speed - Grease 8500rpm | ||
Maximum Speed - Oil 13000rpm | ||
Standards/Approvals ISO 199:1997, ISO 1000:1992, ISO 14001, DIN 17 230:1980, ISO 492:1994, ISO 582:1995, ISO 5753:1991 | ||
End Type Open | ||
Dynamic Load Rating 22.9kN | ||
Outside Diameter 40 mm | ||
Static Load Rating 38kN | ||
Bearing Material Carbon Chrome Steel | ||
Number of Rows 1 | ||
Limiting Speed 15000rpm | ||
Bearing Type Needle | ||
RoHS Status: Exempt
- COO (Country of Origin):
- SK

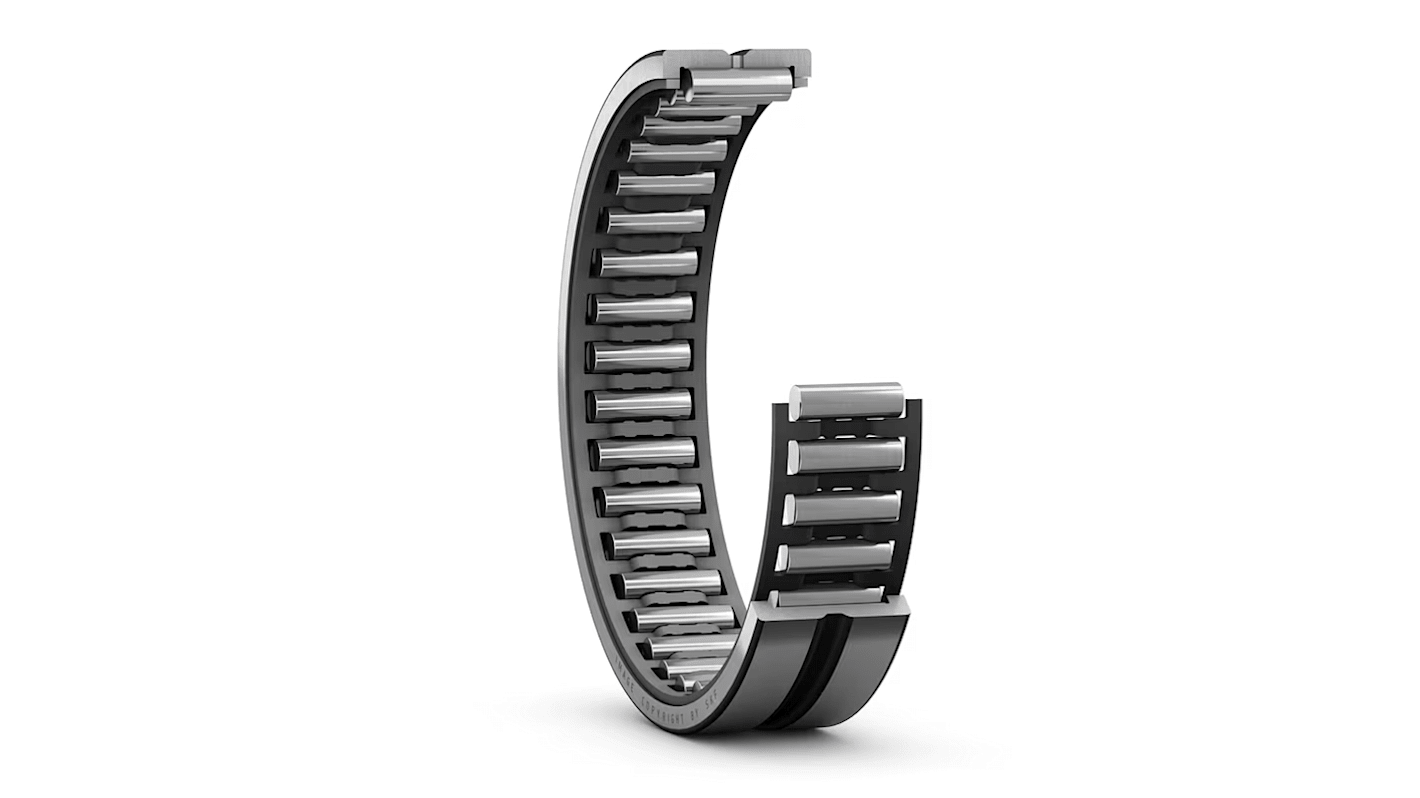

SKF Roller Bearing, Needle Bearing Type, 30mm ID, 40mm OD, 13,000r/min Reference Speed - NK30/20TN
Stay goodbye to friction between the moving parts in your industrial system with this roller bearing from SKF. It's a needle bearing type with thin cylindrical rollers that directly engage with the shaft to support radial loads and minimise vibration. As the unit's rolling parts are enclosed in a cage to maintain accurate spacing and prevent misalignment at high speeds, it's a reliable choice for fast-paced machinery. Open-ended construction makes it easy to inspect and lubricate. A fatigue limit load of 5.5kN means you can trust the bearing handles substantial weights without loss of shape.
Features & Benefits
• Reinforced nylon 66 cage material resists chemicals and impact for long-lasting performance
• Weighs just 61g, so it adds minimal strain to your equipment
• Dynamic load rating of 25.1kN and static load rating of 44kN means it's ideal for use in heavy-duty applications
Applications
• Hydraulic pumps
• Power tools
• Automotive industry
• Printing presses
What's the maximum speed this needle roller can sustain?
It reaches a maximum speed of 8,500r/min when lubricated with grease. When lubricated with oil, it handles speeds up to 13,000r/min.
