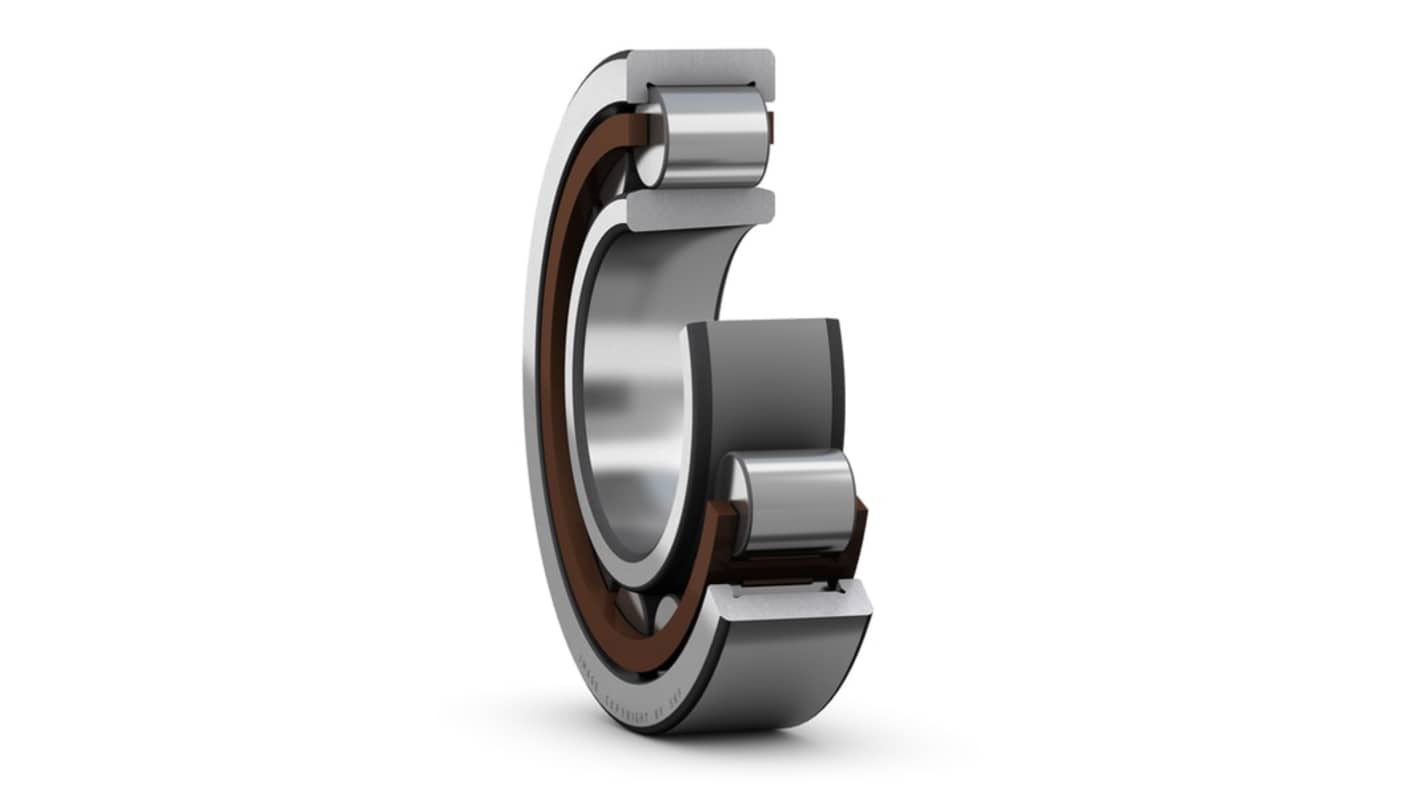

SKF NU 206 ECKP/C3 30 mm ID Cylindrical Roller Bearing, 62 mm OD
- RS Stock No.:
- 465-394
- Mfr. Part No.:
- NU 206 ECKP/C3
- Brand:
- SKF
Subtotal (1 unit)*
£76.45
(exc. VAT)
£91.74
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 31 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £76.45 |
*price indicative
- RS Stock No.:
- 465-394
- Mfr. Part No.:
- NU 206 ECKP/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Cylindrical Roller Bearing | |
| Inside Diameter | 30 mm | |
| Race Width | 16mm | |
| Bore Type | Cylindrical | |
| Cage Material | Non-Metallic | |
| Outside Diameter | 62 mm | |
| Number of Rows | 1 | |
| Dynamic Load Rating | 44kN | |
| Standards/Approvals | RoHS | |
| Limiting Speed | 14000rpm | |
| Static Load Rating | 36.5kN | |
| Internal Clearance | C3 | |
| Series | NU | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Cylindrical Roller Bearing | ||
Inside Diameter 30 mm | ||
Race Width 16mm | ||
Bore Type Cylindrical | ||
Cage Material Non-Metallic | ||
Outside Diameter 62 mm | ||
Number of Rows 1 | ||
Dynamic Load Rating 44kN | ||
Standards/Approvals RoHS | ||
Limiting Speed 14000rpm | ||
Static Load Rating 36.5kN | ||
Internal Clearance C3 | ||
Series NU | ||
- COO (Country of Origin):
- DE
The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Locate the shaft axially in one direction
Separable design
