SKF NJ 208 ECJ/C3 40 mm ID Roller Bearing, 80 mm OD
- RS Stock No.:
- 465-346
- Mfr. Part No.:
- NJ 208 ECJ/C3
- Brand:
- SKF
Subtotal (1 unit)*
£92.91
(exc. VAT)
£111.49
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 20 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £92.91 |
*price indicative
- RS Stock No.:
- 465-346
- Mfr. Part No.:
- NJ 208 ECJ/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Roller Bearing | |
| Inside Diameter | 40mm | |
| Race Width | 18mm | |
| Bore Type | Cylindrical | |
| Cage Material | Sheet Metal | |
| Limiting Speed | 11000rpm | |
| Series | NJ | |
| Standards/Approvals | RoHS | |
| Dynamic Load Rating | 62kN | |
| Outside Diameter | 80mm | |
| Internal Clearance | CN | |
| Static Load Rating | 53kN | |
| Number of Rows | 1 | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Roller Bearing | ||
Inside Diameter 40mm | ||
Race Width 18mm | ||
Bore Type Cylindrical | ||
Cage Material Sheet Metal | ||
Limiting Speed 11000rpm | ||
Series NJ | ||
Standards/Approvals RoHS | ||
Dynamic Load Rating 62kN | ||
Outside Diameter 80mm | ||
Internal Clearance CN | ||
Static Load Rating 53kN | ||
Number of Rows 1 | ||
- COO (Country of Origin):
- PL

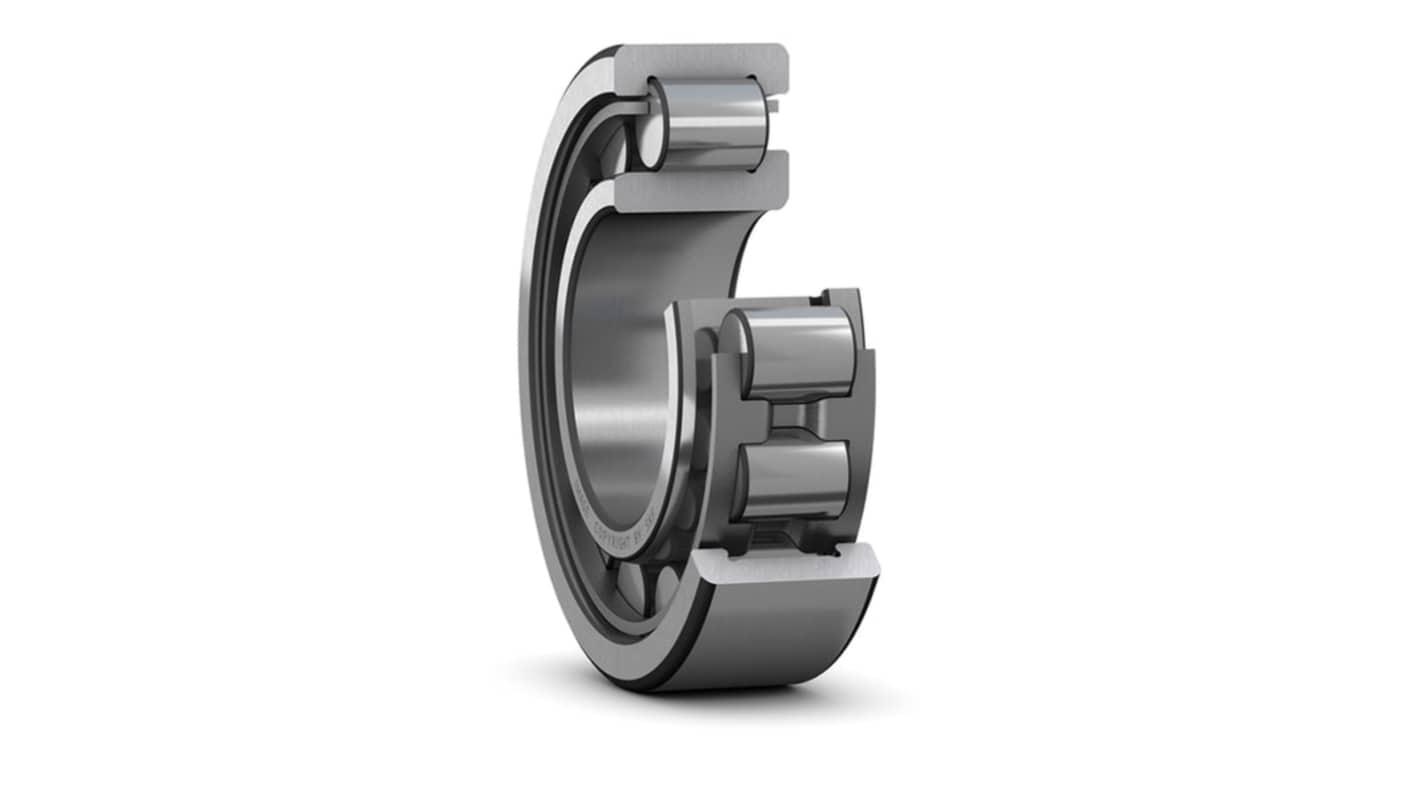

The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJ design bearings can accommodate axial displacement in one direction. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Locate the shaft axially in one direction
Separable design
