SKF NJ 2004 EV/C3 20 mm ID Cylindrical Roller Bearing, 42 mm OD
- RS Stock No.:
- 465-345
- Mfr. Part No.:
- NJ 2004 EV/C3
- Brand:
- SKF
Subtotal (1 unit)*
£117.53
(exc. VAT)
£141.04
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 31 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £117.53 |
*price indicative
- RS Stock No.:
- 465-345
- Mfr. Part No.:
- NJ 2004 EV/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Cylindrical Roller Bearing | |
| Inside Diameter | 20 mm | |
| Race Width | 14mm | |
| Bore Type | Cylindrical | |
| Limiting Speed | 20000rpm | |
| Outside Diameter | 42 mm | |
| Static Load Rating | 5733lb | |
| Internal Clearance | C3 | |
| Number of Rows | 1 | |
| Standards/Approvals | RoHS | |
| Series | NJ | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Cylindrical Roller Bearing | ||
Inside Diameter 20 mm | ||
Race Width 14mm | ||
Bore Type Cylindrical | ||
Limiting Speed 20000rpm | ||
Outside Diameter 42 mm | ||
Static Load Rating 5733lb | ||
Internal Clearance C3 | ||
Number of Rows 1 | ||
Standards/Approvals RoHS | ||
Series NJ | ||
- COO (Country of Origin):
- DE

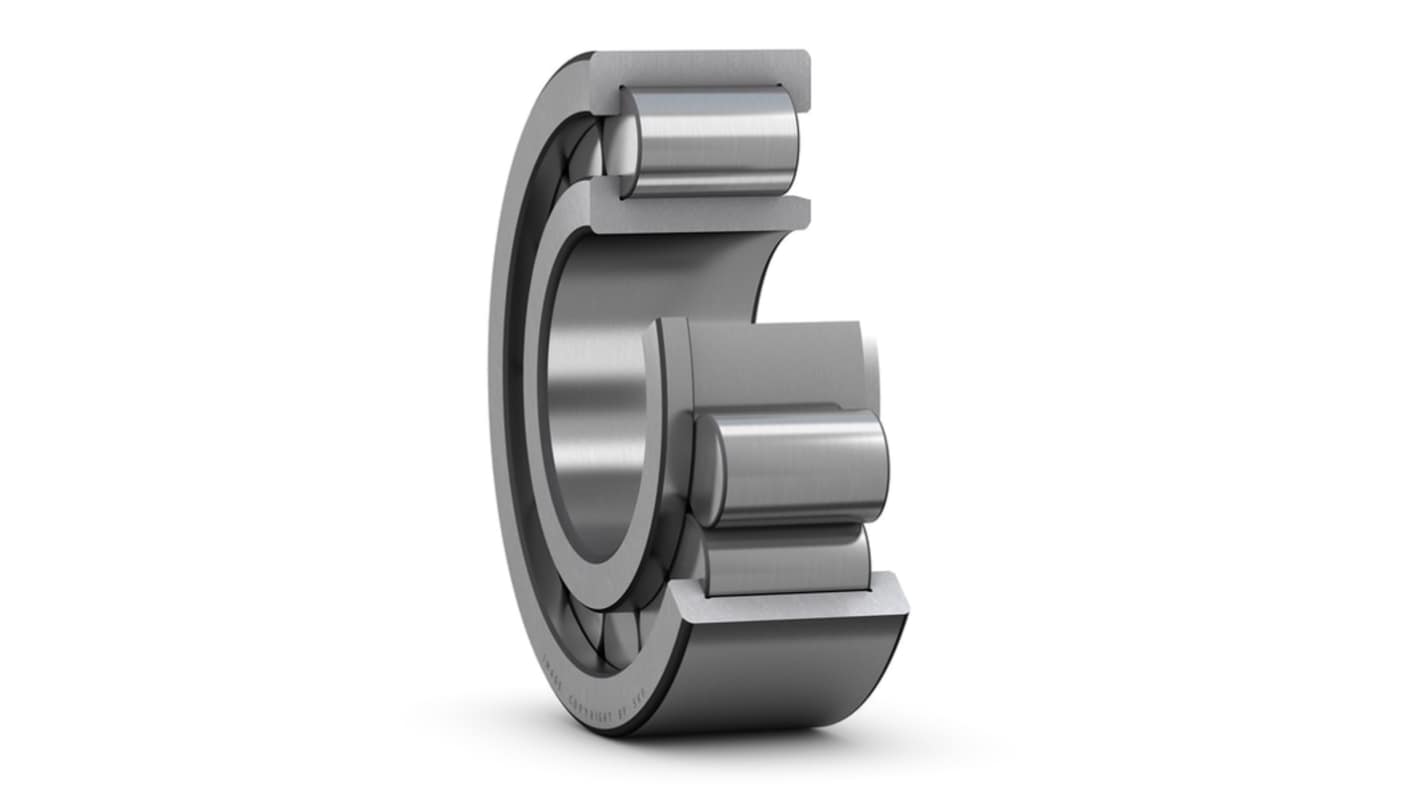

The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJ design bearings can accommodate axial displacement in one direction. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Locate the shaft axially in one direction
Separable design
