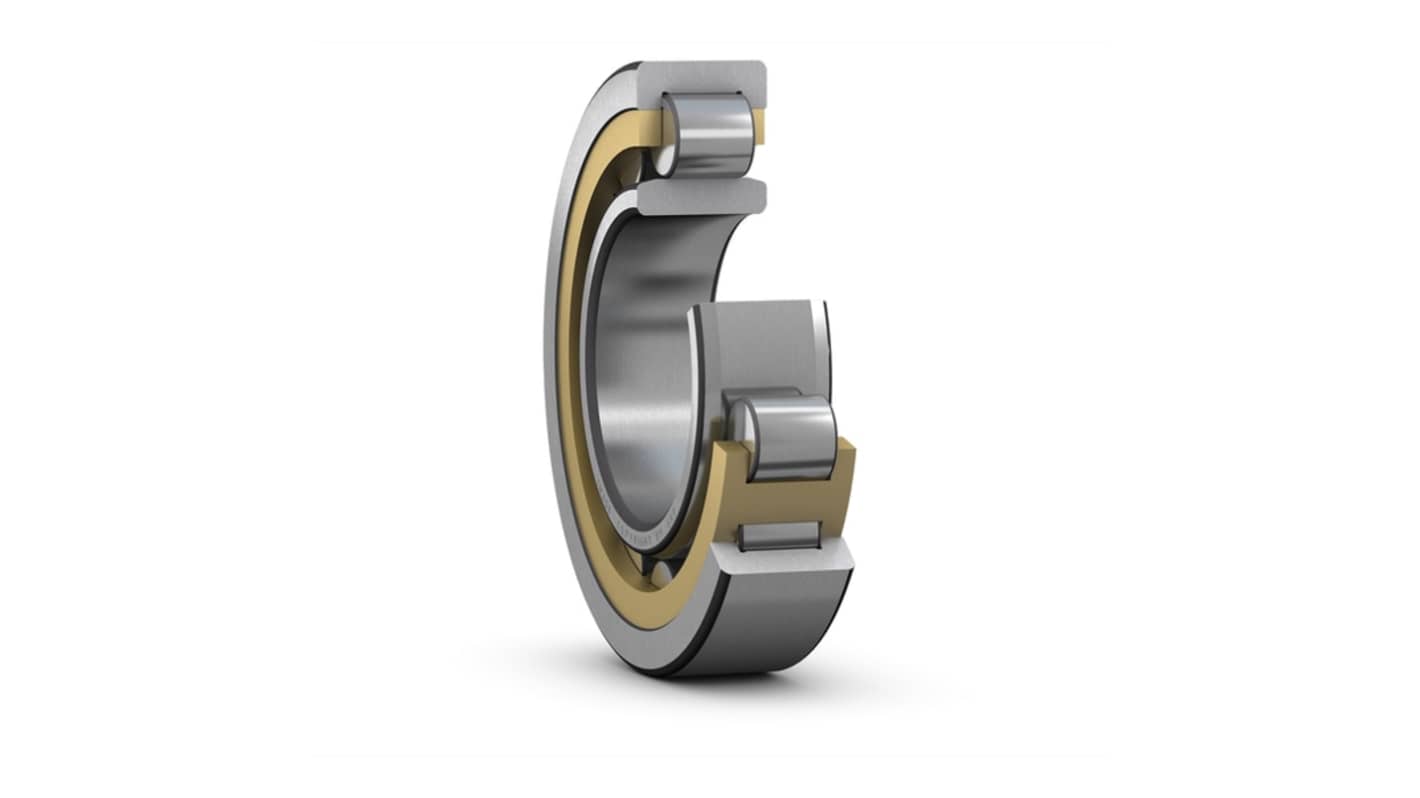

SKF NU 234 ECML 170 mm ID Cylindrical Roller Bearing, 310 mm OD
- RS Stock No.:
- 465-251
- Mfr. Part No.:
- NU 234 ECML
- Brand:
- SKF
Subtotal (1 unit)*
£1,678.15
(exc. VAT)
£2,013.78
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 31 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,678.15 |
*price indicative
- RS Stock No.:
- 465-251
- Mfr. Part No.:
- NU 234 ECML
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Cylindrical Roller Bearing | |
| Inside Diameter | 170 mm | |
| Race Width | 52mm | |
| Bore Type | Cylindrical | |
| Cage Material | Machined Brass | |
| Limiting Speed | 3800rpm | |
| Number of Rows | 1 | |
| Static Load Rating | 815kN | |
| Dynamic Load Rating | 695kN | |
| Outside Diameter | 310 mm | |
| Internal Clearance | CN | |
| Series | NU | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Cylindrical Roller Bearing | ||
Inside Diameter 170 mm | ||
Race Width 52mm | ||
Bore Type Cylindrical | ||
Cage Material Machined Brass | ||
Limiting Speed 3800rpm | ||
Number of Rows 1 | ||
Static Load Rating 815kN | ||
Dynamic Load Rating 695kN | ||
Outside Diameter 310 mm | ||
Internal Clearance CN | ||
Series NU | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- DE
The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design
