SKF NU 2313 ECML/C3 65 mm ID Cylindrical Roller Bearing, 140 mm OD
- RS Stock No.:
- 465-239
- Mfr. Part No.:
- NU 2313 ECML/C3
- Brand:
- SKF
Subtotal (1 unit)*
£560.53
(exc. VAT)
£672.64
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 22 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £560.53 |
*price indicative
- RS Stock No.:
- 465-239
- Mfr. Part No.:
- NU 2313 ECML/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Cylindrical Roller Bearing | |
| Inside Diameter | 65 mm | |
| Race Width | 48mm | |
| Bore Type | Cylindrical | |
| Cage Material | Machined Brass | |
| Series | NU | |
| Limiting Speed | 9500rpm | |
| Static Load Rating | 290kN | |
| Number of Rows | 1 | |
| Outside Diameter | 140 mm | |
| Dynamic Load Rating | 285kN | |
| Standards/Approvals | RoHS | |
| Internal Clearance | C3 | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Cylindrical Roller Bearing | ||
Inside Diameter 65 mm | ||
Race Width 48mm | ||
Bore Type Cylindrical | ||
Cage Material Machined Brass | ||
Series NU | ||
Limiting Speed 9500rpm | ||
Static Load Rating 290kN | ||
Number of Rows 1 | ||
Outside Diameter 140 mm | ||
Dynamic Load Rating 285kN | ||
Standards/Approvals RoHS | ||
Internal Clearance C3 | ||
- COO (Country of Origin):
- DE

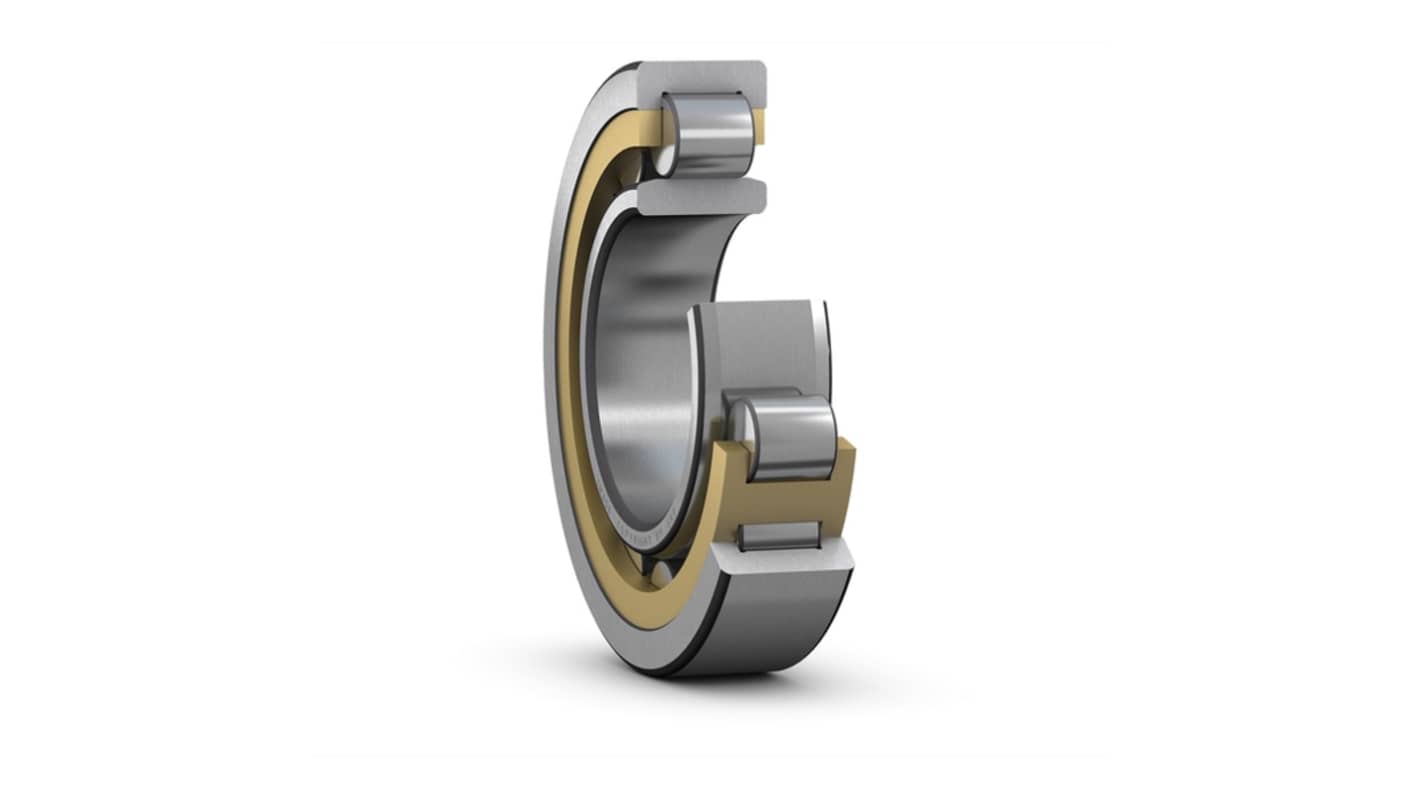

The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design
