SKF RNA 4905 30 mm ID Roller Bearing Needle, 42 mm OD
- RS Stock No.:
- 465-188
- Mfr. Part No.:
- RNA 4905
- Brand:
- SKF
Subtotal (1 unit)*
£30.65
(exc. VAT)
£36.78
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 19 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £30.65 |
*price indicative
- RS Stock No.:
- 465-188
- Mfr. Part No.:
- RNA 4905
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Roller Bearing | |
| Inside Diameter | 30mm | |
| Race Width | 17mm | |
| Cage Material | Sheet Steel | |
| Dynamic Load Rating | 28kN | |
| Bearing Material | Bearing Steel | |
| Static Load Rating | 34.5kN | |
| Limiting Speed | 15000rpm | |
| Series | RNA 4905 | |
| Standards/Approvals | RoHS | |
| Number of Rows | 1 | |
| Outside Diameter | 42mm | |
| Bearing Type | Needle | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Roller Bearing | ||
Inside Diameter 30mm | ||
Race Width 17mm | ||
Cage Material Sheet Steel | ||
Dynamic Load Rating 28kN | ||
Bearing Material Bearing Steel | ||
Static Load Rating 34.5kN | ||
Limiting Speed 15000rpm | ||
Series RNA 4905 | ||
Standards/Approvals RoHS | ||
Number of Rows 1 | ||
Outside Diameter 42mm | ||
Bearing Type Needle | ||

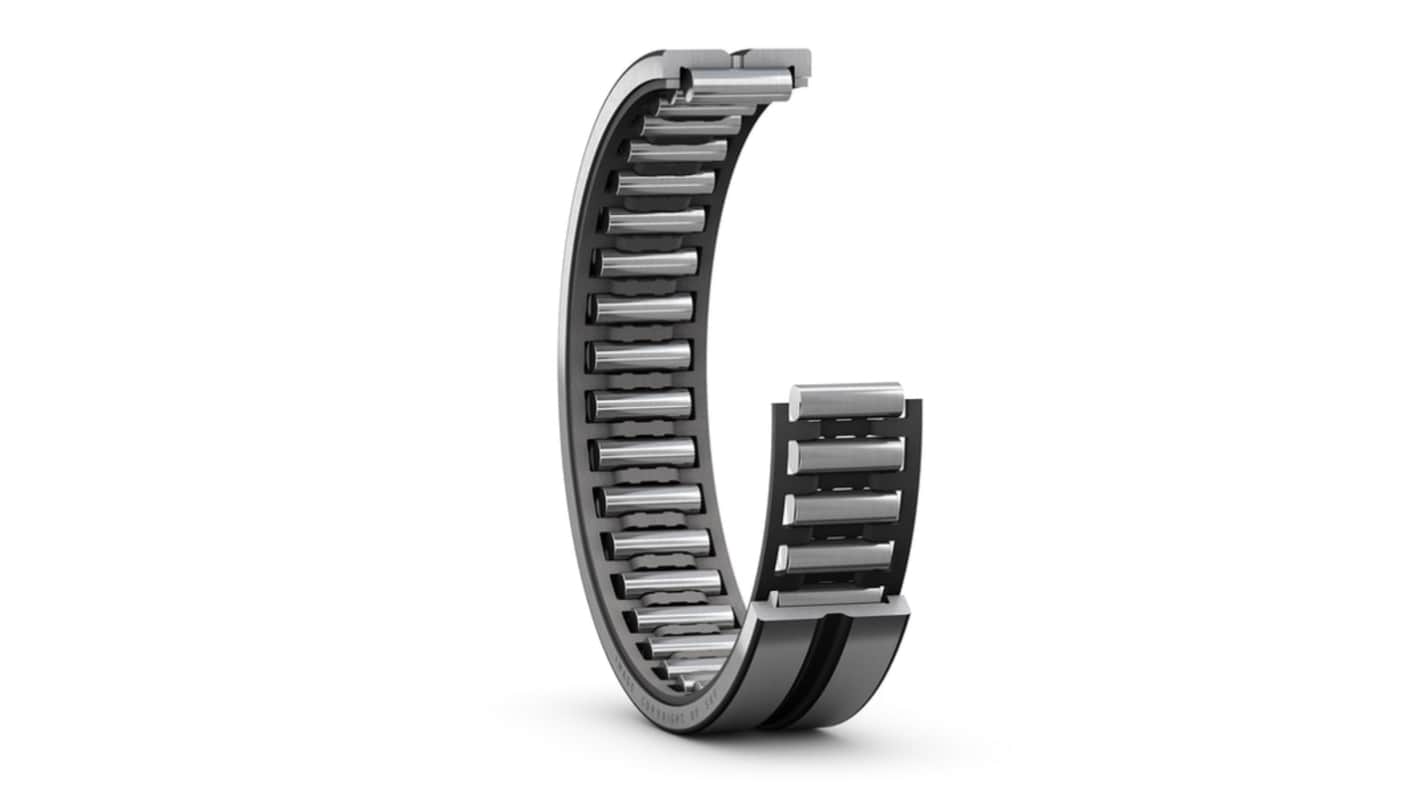

The SKF Single row needle roller bearings without an inner ring consist of an outer ring with a needle roller and cage assembly. They are an excellent choice for compact bearing arrangements in applications where hardened and ground raceways can be provided on the shaft. The outer ring includes two integral flanges to guide the bearing axially and an annular groove with one or more lubrication holes to facilitate relubrication.
High radial load carrying capacity
High stiffness
Low cross sectional height
Accommodate axial displacement in both directions
