SKF NNF 5011 ADB-2LSV 55 mm ID Cylindrical Roller Bearing, 90 mm OD
- RS Stock No.:
- 465-116
- Mfr. Part No.:
- NNF 5011 ADB-2LSV
- Brand:
- SKF
Subtotal (1 unit)*
£317.90
(exc. VAT)
£381.48
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 19 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £317.90 |
*price indicative
- RS Stock No.:
- 465-116
- Mfr. Part No.:
- NNF 5011 ADB-2LSV
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Cylindrical Roller Bearing | |
| Inside Diameter | 55mm | |
| Race Width | 46mm | |
| Bore Type | Cylindrical | |
| Dynamic Load Rating | 128kN | |
| Series | NNF 501 | |
| Static Load Rating | 193kN | |
| Number of Rows | 2 | |
| Limiting Speed | 1500rpm | |
| End Type | Sealed | |
| Standards/Approvals | No | |
| Outside Diameter | 90mm | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Cylindrical Roller Bearing | ||
Inside Diameter 55mm | ||
Race Width 46mm | ||
Bore Type Cylindrical | ||
Dynamic Load Rating 128kN | ||
Series NNF 501 | ||
Static Load Rating 193kN | ||
Number of Rows 2 | ||
Limiting Speed 1500rpm | ||
End Type Sealed | ||
Standards/Approvals No | ||
Outside Diameter 90mm | ||
- COO (Country of Origin):
- SK

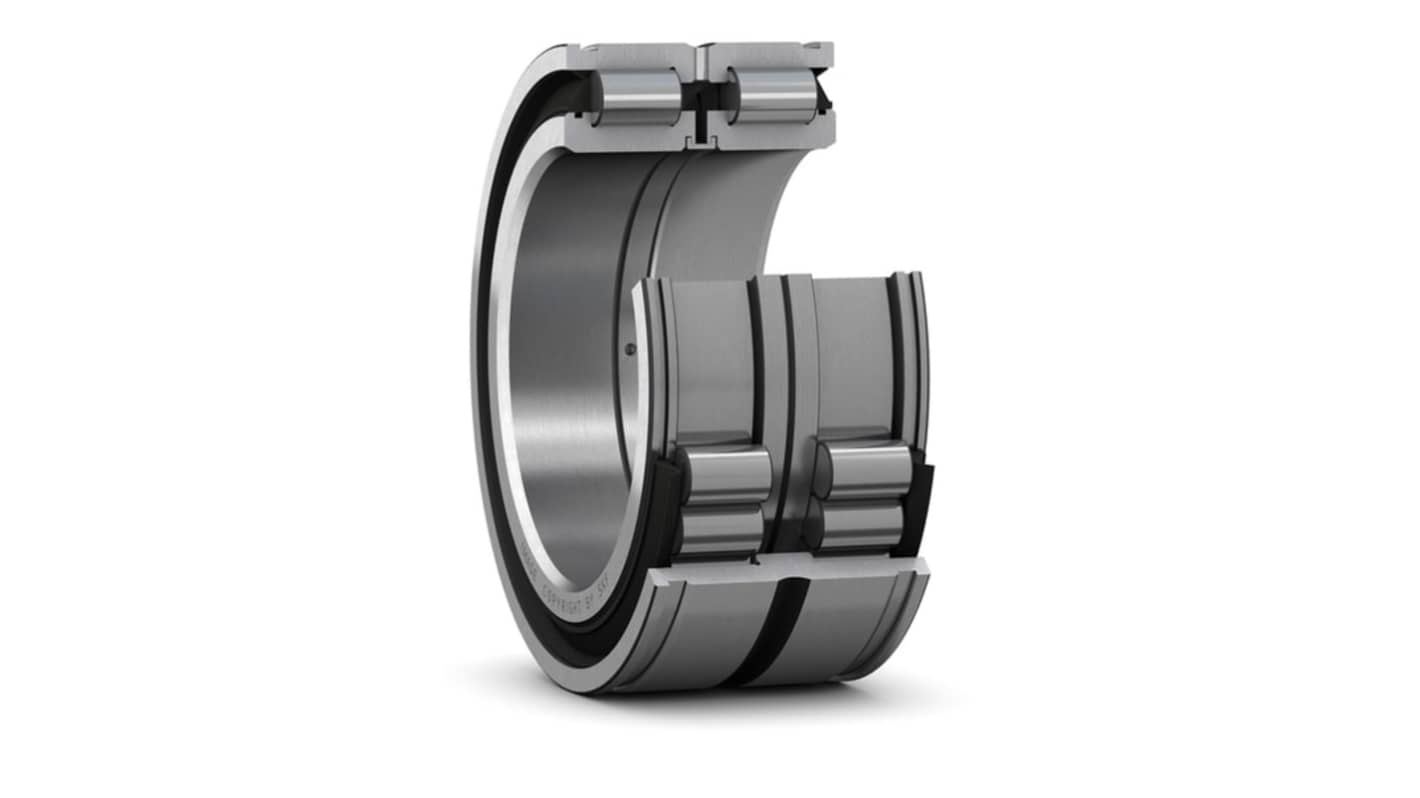

The SKF Double row full complement cylindrical roller bearings incorporate a maximum number of rollers and are therefore suitable for very heavy radial loads in combination with moderate speeds. Having three flanges on the two-piece inner ring and one central flange on the outer ring, NNF design bearings can locate the shaft axially in both directions.
Very high radial load carrying capacity
High radial stiffness
Long service life
