SKF NN 3006 KTN/SP 30 mm ID Cylindrical Roller Bearing, 55 mm OD
- RS Stock No.:
- 465-109
- Mfr. Part No.:
- NN 3006 KTN/SP
- Brand:
- SKF
Subtotal (1 unit)*
£430.61
(exc. VAT)
£516.73
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 03 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £430.61 |
*price indicative
- RS Stock No.:
- 465-109
- Mfr. Part No.:
- NN 3006 KTN/SP
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Cylindrical Roller Bearing | |
| Inside Diameter | 30 mm | |
| Race Width | 19mm | |
| Bore Type | Tapered 1:12 | |
| Roller Material | Bearing Steel | |
| Cage Material | Non-Metallic | |
| Series | NN 3006 | |
| Static Load Rating | 37.5kN | |
| Internal Clearance | C1 | |
| Outside Diameter | 55 mm | |
| Dynamic Load Rating | 30.8kN | |
| Standards/Approvals | No | |
| Maximum Speed - Oil | 19000rpm | |
| Maximum Speed - Grease | 17000rpm | |
| Number of Rows | 2 | |
| Bearing Material | Bearing Steel | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Cylindrical Roller Bearing | ||
Inside Diameter 30 mm | ||
Race Width 19mm | ||
Bore Type Tapered 1:12 | ||
Roller Material Bearing Steel | ||
Cage Material Non-Metallic | ||
Series NN 3006 | ||
Static Load Rating 37.5kN | ||
Internal Clearance C1 | ||
Outside Diameter 55 mm | ||
Dynamic Load Rating 30.8kN | ||
Standards/Approvals No | ||
Maximum Speed - Oil 19000rpm | ||
Maximum Speed - Grease 17000rpm | ||
Number of Rows 2 | ||
Bearing Material Bearing Steel | ||
- COO (Country of Origin):
- IT

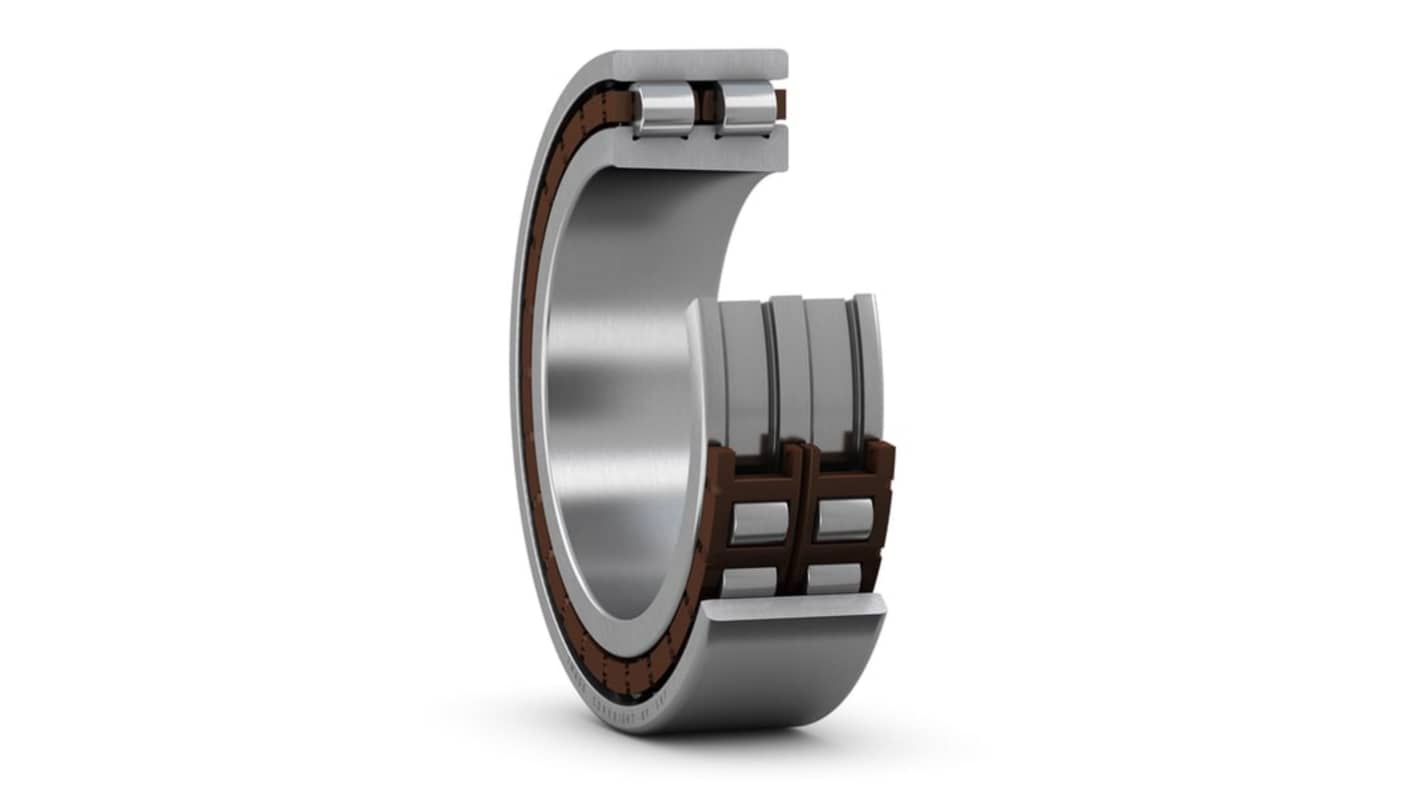

The SKF Super-precision double row cylindrical roller bearings in the NN 30 series provide a unique balance between load carrying capacity, rigidity and speed. Having three flanges on the inner ring and no flanges on the outer ring, the bearings can accommodate axial displacement in both directions. The separable design simplifies mounting and dismounting, particularly when load conditions require both rings to have an interference fit.
Very high radial load carrying capacity
High rigidity and high running accuracy
Minimize noise, vibration and heat generation
