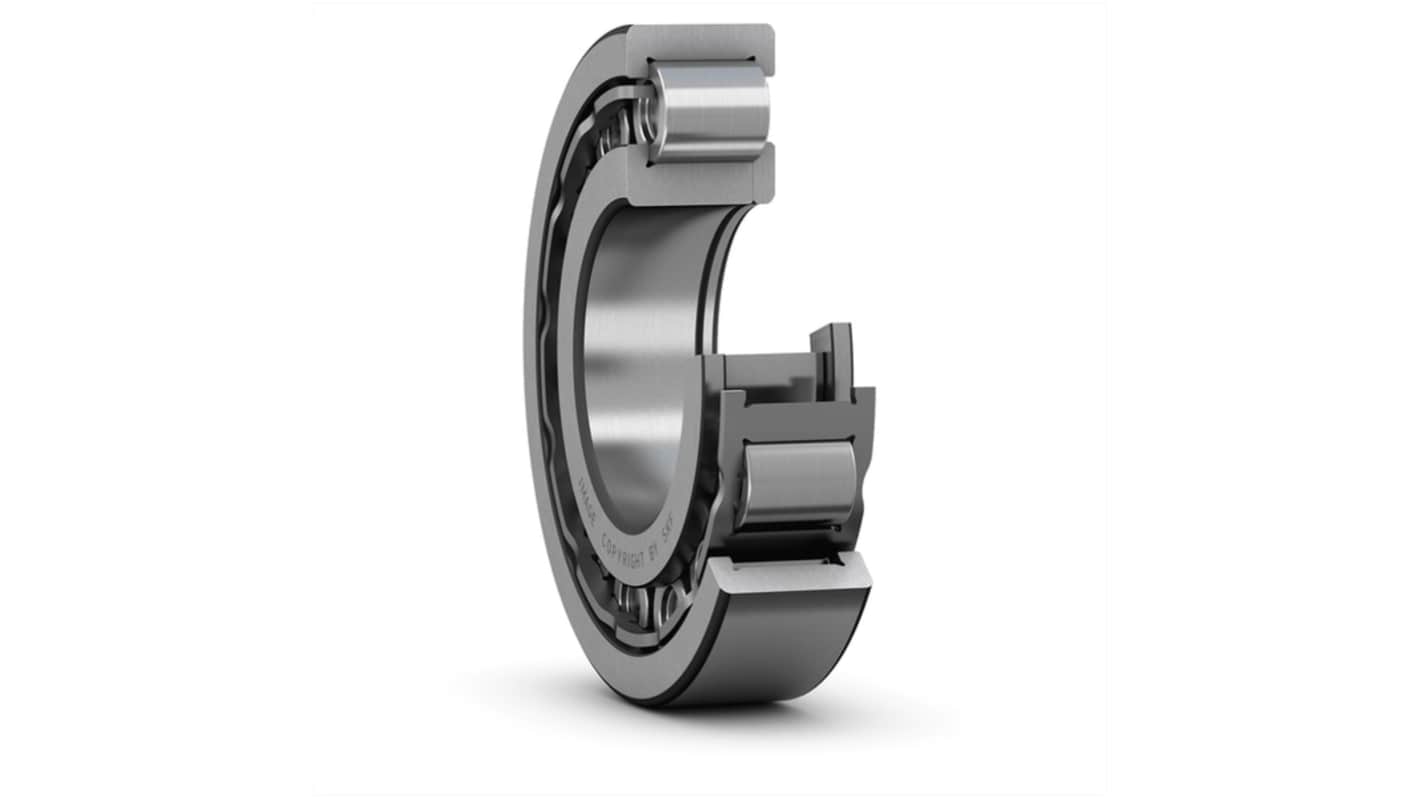

SKF NUP 210 ECJ 50 mm ID Cylindrical Roller Bearing, 90 mm OD
- RS Stock No.:
- 465-007
- Mfr. Part No.:
- NUP 210 ECJ
- Brand:
- SKF
Subtotal (1 unit)*
£136.69
(exc. VAT)
£164.03
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 22 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £136.69 |
*price indicative
- RS Stock No.:
- 465-007
- Mfr. Part No.:
- NUP 210 ECJ
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Cylindrical Roller Bearing | |
| Inside Diameter | 50 mm | |
| Race Width | 20mm | |
| Bore Type | Cylindrical | |
| Cage Material | Sheet Metal | |
| Internal Clearance | CN | |
| Number of Rows | 1 | |
| Limiting Speed | 9000rpm | |
| Static Load Rating | 69.5kN | |
| Series | NUP | |
| Standards/Approvals | RoHS | |
| Outside Diameter | 90 mm | |
| Dynamic Load Rating | 73.5kN | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Cylindrical Roller Bearing | ||
Inside Diameter 50 mm | ||
Race Width 20mm | ||
Bore Type Cylindrical | ||
Cage Material Sheet Metal | ||
Internal Clearance CN | ||
Number of Rows 1 | ||
Limiting Speed 9000rpm | ||
Static Load Rating 69.5kN | ||
Series NUP | ||
Standards/Approvals RoHS | ||
Outside Diameter 90 mm | ||
Dynamic Load Rating 73.5kN | ||
- COO (Country of Origin):
- DE
The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one integral flange and one loose flange ring on the inner ring, NUP design bearings can locate the shaft axially in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Locate the shaft axially in both directions
Separable design
