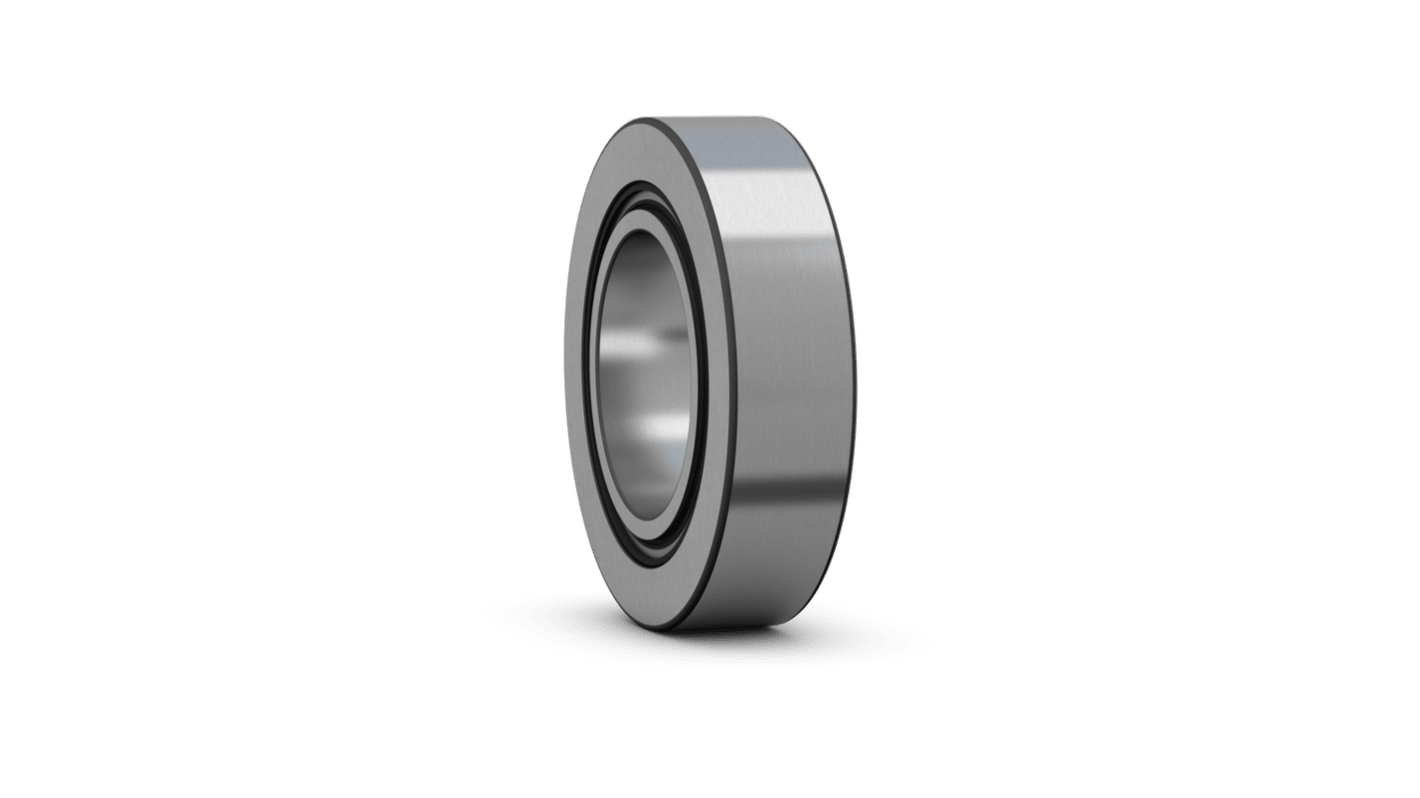

SKF T2ED 045 Taper Roller 45 mm ID Roller Bearing, 95 mm OD
- RS Stock No.:
- 464-810
- Mfr. Part No.:
- T2ED 045
- Brand:
- SKF
Subtotal (1 unit)*
£255.52
(exc. VAT)
£306.62
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £255.52 |
*price indicative
- RS Stock No.:
- 464-810
- Mfr. Part No.:
- T2ED 045
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Roller Bearing | |
| Inside Diameter | 45mm | |
| Bore Type | Cylindrical | |
| Cage Material | Sheet Metal | |
| Limiting Speed | 7000rpm | |
| Number of Rows | 1 | |
| Cone Width | 35mm | |
| Static Load Rating | 186kN | |
| Cup Width | 30mm | |
| Bearing Dynamic Load Rating | 182kN | |
| Standards/Approvals | eClass, RoHS, UNSPSC | |
| Outside Diameter | 95mm | |
| Race Type | Cylindrical | |
| Bearing Type | Taper Roller | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Roller Bearing | ||
Inside Diameter 45mm | ||
Bore Type Cylindrical | ||
Cage Material Sheet Metal | ||
Limiting Speed 7000rpm | ||
Number of Rows 1 | ||
Cone Width 35mm | ||
Static Load Rating 186kN | ||
Cup Width 30mm | ||
Bearing Dynamic Load Rating 182kN | ||
Standards/Approvals eClass, RoHS, UNSPSC | ||
Outside Diameter 95mm | ||
Race Type Cylindrical | ||
Bearing Type Taper Roller | ||
The SKF Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.
High radial and axial load carrying capacity
Accommodate axial loads in one direction
Low friction and long service life
Separable and interchangeable components
