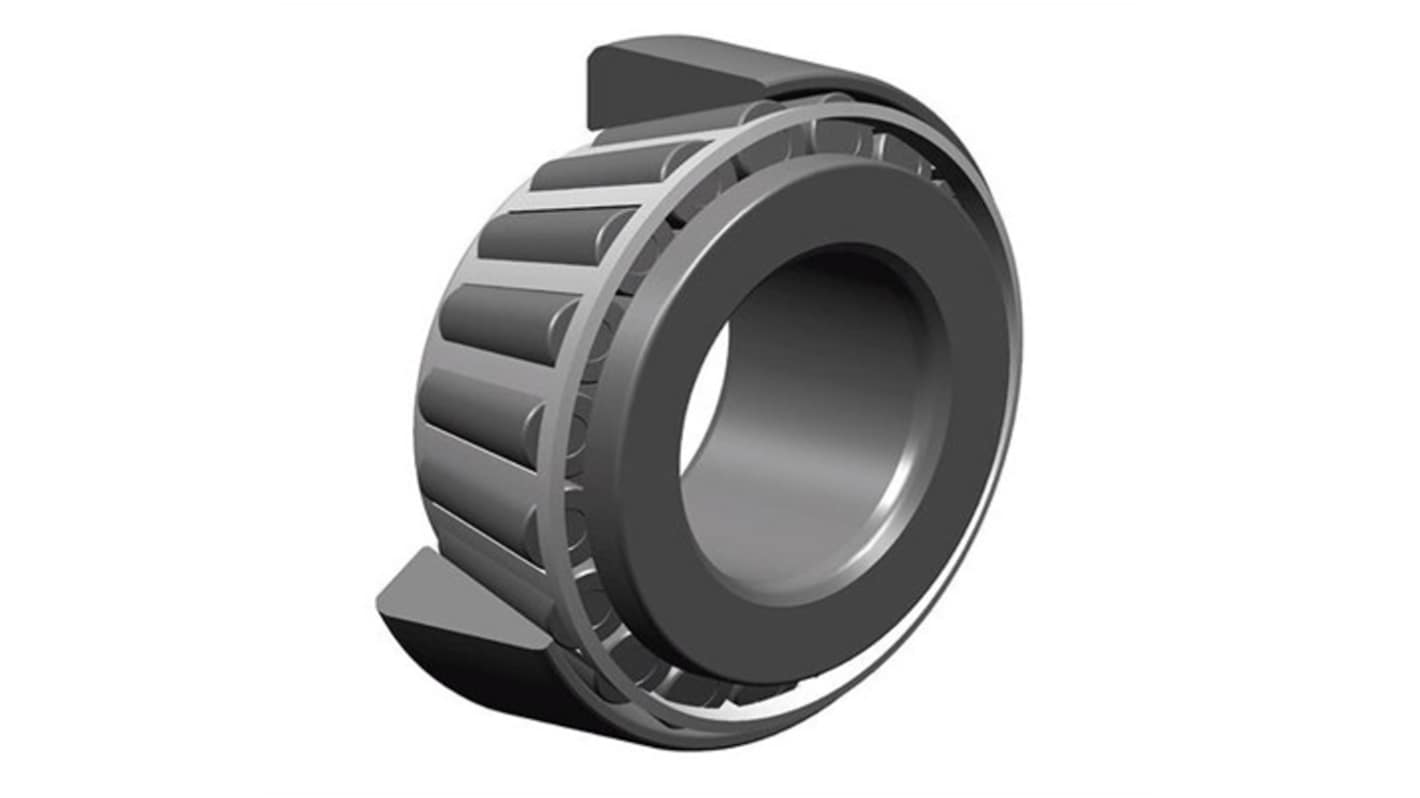

NTN 32309U Taper Roller 45 mm I.D Taper Roller Bearing, 100 mm O.D
- RS Stock No.:
- 453-402
- Mfr. Part No.:
- 32309U
- Brand:
- NTN
Subtotal (1 unit)*
£51.18
(exc. VAT)
£61.42
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £51.18 |
*price indicative
- RS Stock No.:
- 453-402
- Mfr. Part No.:
- 32309U
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Taper Roller Bearing | |
| Inside Diameter | 45 mm | |
| Bore Type | Round | |
| Cage Material | Pressed Steel | |
| Roller Material | Steel | |
| Outside Diameter | 100 mm | |
| End Type | Open | |
| Bearing Dynamic Load Rating | 170 KN | |
| Standards/Approvals | ISO 355 | |
| Maximum Speed - Oil | 5300rpm | |
| Maximum Speed - Grease | 4000rpm | |
| Series | 32309U | |
| Static Load Rating | 191kN | |
| Number of Rows | 1 | |
| Cone Width | 36mm | |
| Cup Width | 30mm | |
| Bearing Material | Through Hardened Steel | |
| Limiting Speed | 5300rpm | |
| Bearing Type | Taper Roller | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Taper Roller Bearing | ||
Inside Diameter 45 mm | ||
Bore Type Round | ||
Cage Material Pressed Steel | ||
Roller Material Steel | ||
Outside Diameter 100 mm | ||
End Type Open | ||
Bearing Dynamic Load Rating 170 KN | ||
Standards/Approvals ISO 355 | ||
Maximum Speed - Oil 5300rpm | ||
Maximum Speed - Grease 4000rpm | ||
Series 32309U | ||
Static Load Rating 191kN | ||
Number of Rows 1 | ||
Cone Width 36mm | ||
Cup Width 30mm | ||
Bearing Material Through Hardened Steel | ||
Limiting Speed 5300rpm | ||
Bearing Type Taper Roller | ||
- COO (Country of Origin):
- JP
The NTN Single Row Tapered Roller Bearing is designed for optimal performance in a variety of applications, showcasing a robust construction that ensures longevity and reliability. With its pressed steel cage, this bearing is ideal for accommodating both radial and axial loads. The internal and external diameters are meticulously crafted, ensuring precise fitment and improved efficiency in your machinery. Engineered to withstand high temperatures and demanding conditions, this bearing provides superior load-bearing capabilities and minimal maintenance, making it an essential component for industries requiring high-performance solutions.
Perfectly engineered to offer a smooth and quiet operation
Constructed with high-quality rolling element material for enhanced durability
Accommodates various loads effectively, reducing wear and tear on machinery
Designed to excel under both oil and grease lubrication systems
Features dimensions that support a wide range of industrial applications
Allows for easy installation, minimising downtime during maintenance
Specially designed components to maximise overall bearing performance
