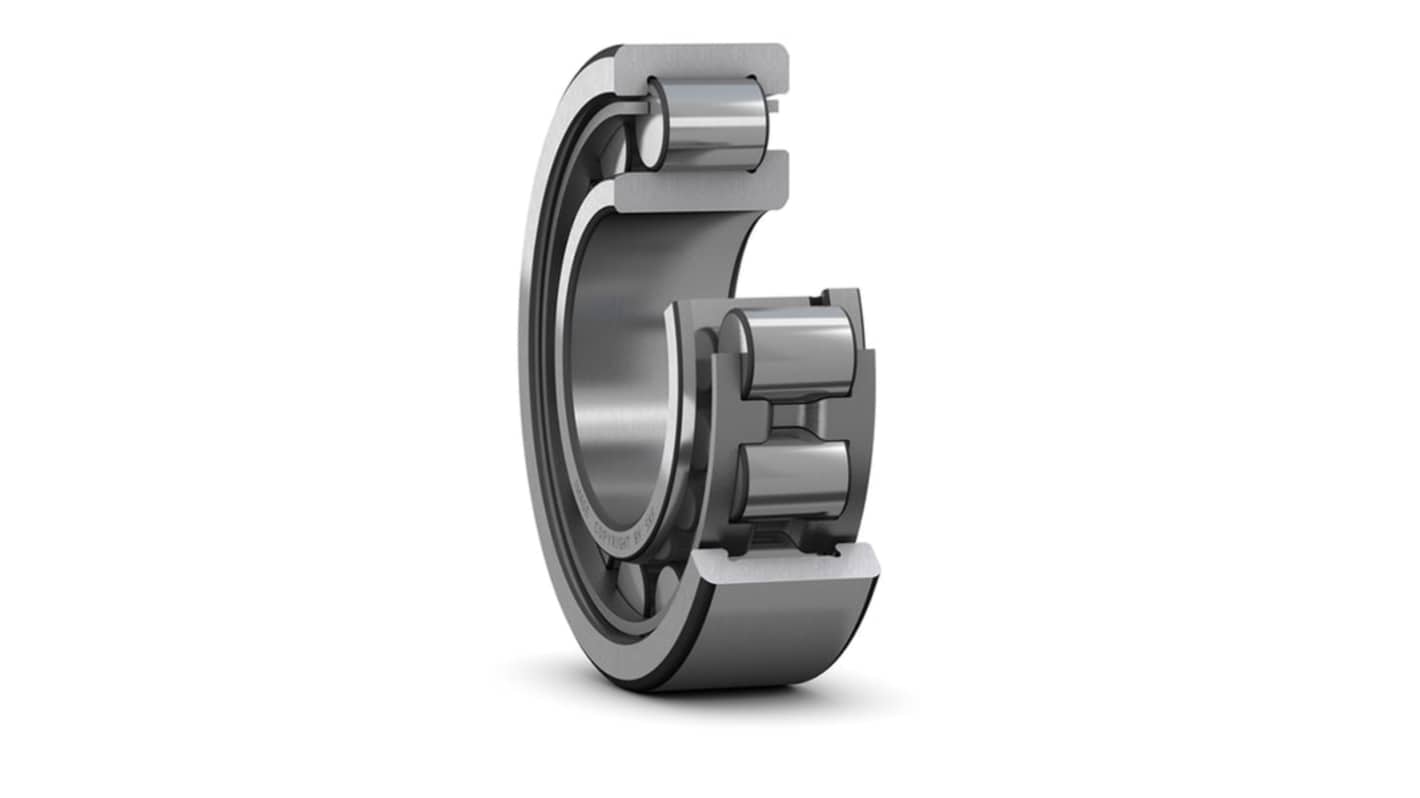

SKF NJ 228 ECJ/C3 140 mm ID Cylindrical Roller Bearing, 250 mm OD
- RS Stock No.:
- 464-613
- Mfr. Part No.:
- NJ 228 ECJ/C3
- Brand:
- SKF
Subtotal (1 unit)*
£1,357.06
(exc. VAT)
£1,628.47
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 13 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,357.06 |
*price indicative
- RS Stock No.:
- 464-613
- Mfr. Part No.:
- NJ 228 ECJ/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Cylindrical Roller Bearing | |
| Inside Diameter | 140mm | |
| Race Width | 42mm | |
| Bore Type | Cylindrical | |
| Cage Material | Sheet Metal | |
| Series | NJ 228 | |
| Standards/Approvals | No | |
| Dynamic Load Rating | 450kN | |
| Outside Diameter | 250mm | |
| Internal Clearance | C3 | |
| Static Load Rating | 510kN | |
| Number of Rows | 1 | |
| Limiting Speed | 3200rpm | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Cylindrical Roller Bearing | ||
Inside Diameter 140mm | ||
Race Width 42mm | ||
Bore Type Cylindrical | ||
Cage Material Sheet Metal | ||
Series NJ 228 | ||
Standards/Approvals No | ||
Dynamic Load Rating 450kN | ||
Outside Diameter 250mm | ||
Internal Clearance C3 | ||
Static Load Rating 510kN | ||
Number of Rows 1 | ||
Limiting Speed 3200rpm | ||
- COO (Country of Origin):
- DE
The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJ design bearings can accommodate axial displacement in one direction.
High radial load carrying capacity
Low friction
Long service life
