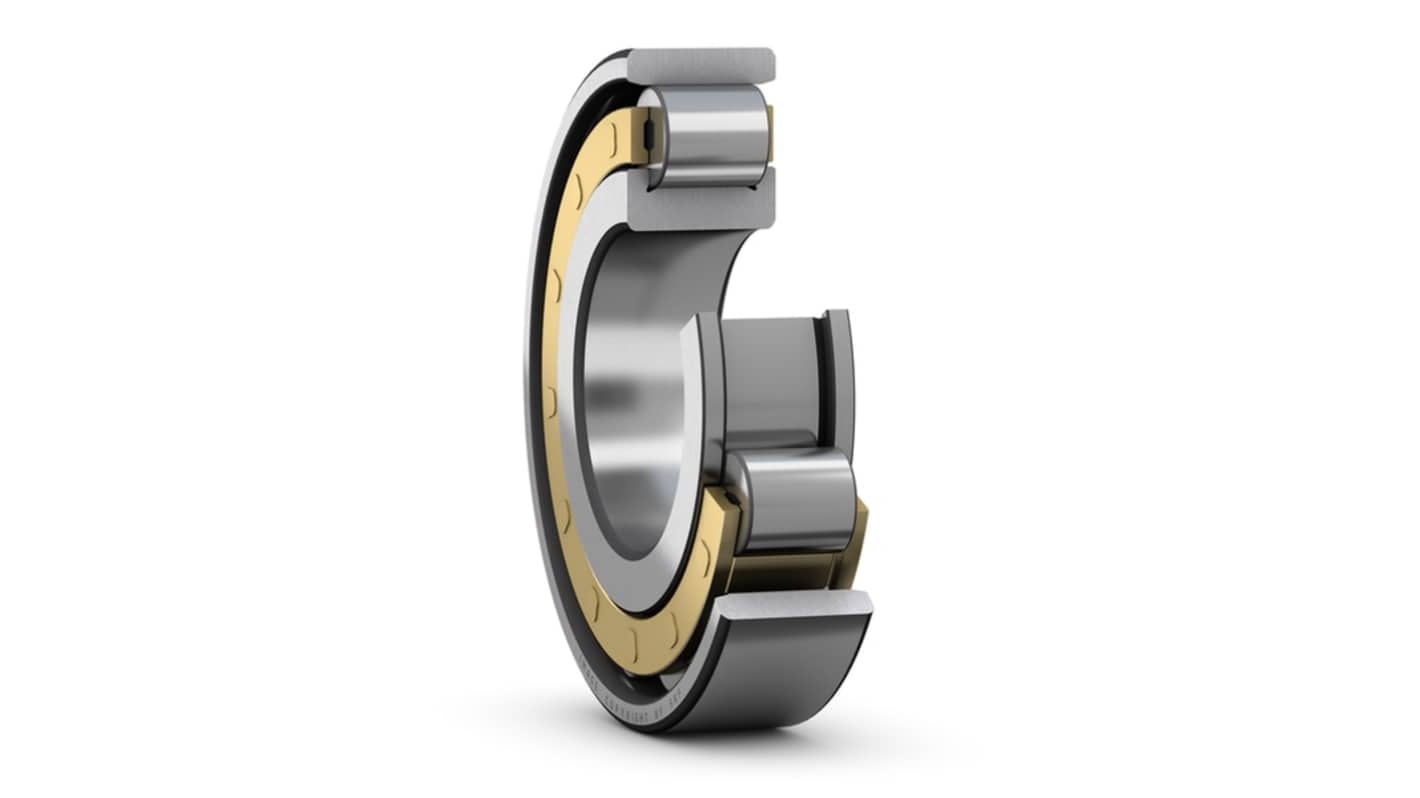

SKF N 318 ECM 90 mm ID Cylindrical Roller Bearing, 190 mm OD
- RS Stock No.:
- 464-584
- Mfr. Part No.:
- N 318 ECM
- Brand:
- SKF
Subtotal (1 unit)*
£1,290.20
(exc. VAT)
£1,548.24
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 19 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,290.20 |
*price indicative
- RS Stock No.:
- 464-584
- Mfr. Part No.:
- N 318 ECM
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Cylindrical Roller Bearing | |
| Inside Diameter | 90mm | |
| Race Width | 43mm | |
| Bore Type | Cylindrical | |
| Cage Material | Machined Brass | |
| Static Load Rating | 360kN | |
| Series | N 318 | |
| Standards/Approvals | No | |
| Dynamic Load Rating | 365kN | |
| Number of Rows | 1 | |
| Limiting Speed | 4500rpm | |
| Outside Diameter | 190mm | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Cylindrical Roller Bearing | ||
Inside Diameter 90mm | ||
Race Width 43mm | ||
Bore Type Cylindrical | ||
Cage Material Machined Brass | ||
Static Load Rating 360kN | ||
Series N 318 | ||
Standards/Approvals No | ||
Dynamic Load Rating 365kN | ||
Number of Rows 1 | ||
Limiting Speed 4500rpm | ||
Outside Diameter 190mm | ||
- COO (Country of Origin):
- DE
The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the inner ring and no flanges on the outer ring, N design bearings can accommodate axial displacement in both directions.
High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design
