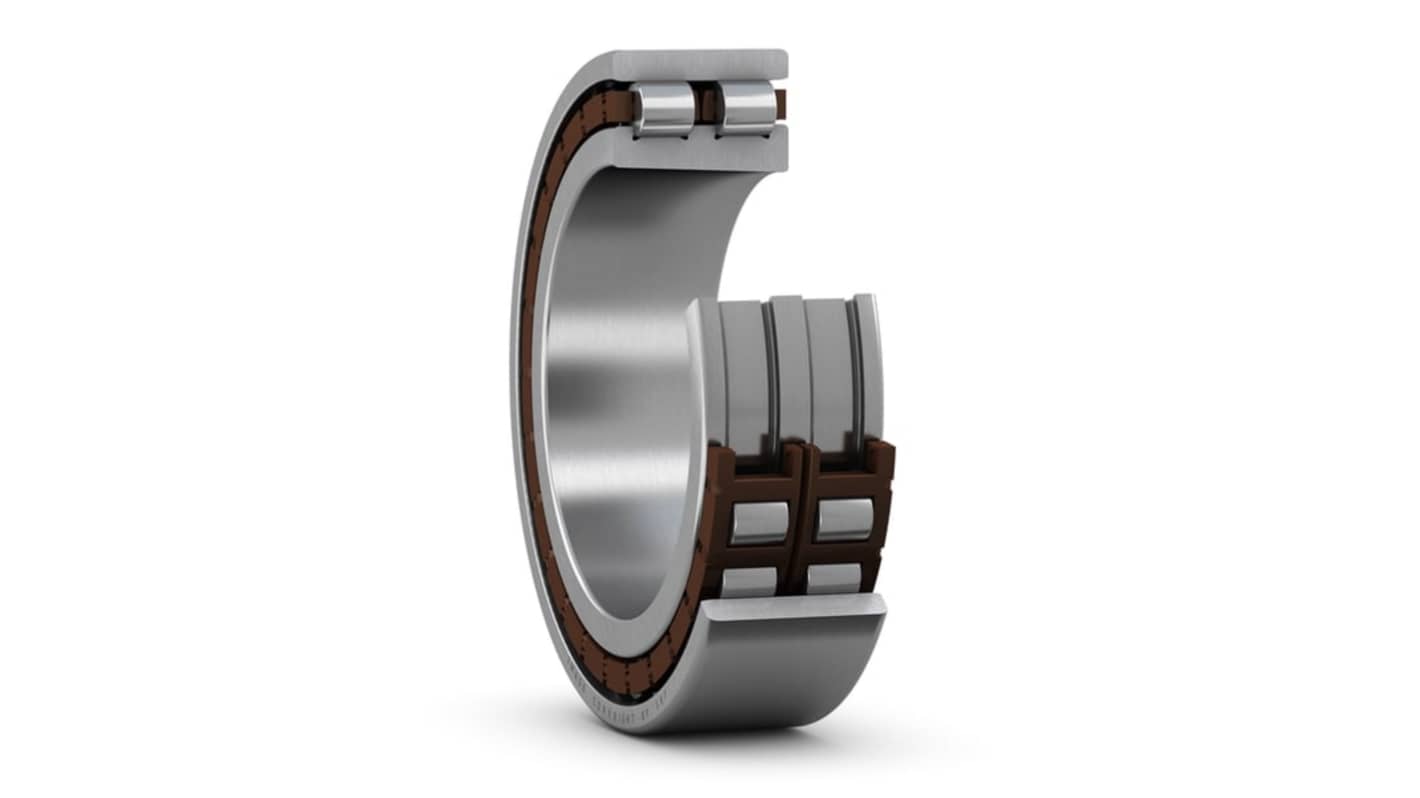

SKF NN 3012 TN/SP 60 mm ID Cylindrical Roller Bearing, 95 mm OD
- RS Stock No.:
- 464-461
- Mfr. Part No.:
- NN 3012 TN/SP
- Brand:
- SKF
Subtotal (1 unit)*
£529.93
(exc. VAT)
£635.92
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 19 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £529.93 |
*price indicative
- RS Stock No.:
- 464-461
- Mfr. Part No.:
- NN 3012 TN/SP
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Cylindrical Roller Bearing | |
| Inside Diameter | 60mm | |
| Race Width | 26mm | |
| Bore Type | Cylindrical | |
| Cage Material | Non-Metallic | |
| Roller Material | Bearing Steel | |
| Bearing Material | Bearing Steel | |
| Number of Rows | 2 | |
| Dynamic Load Rating | 73.7kN | |
| Outside Diameter | 95mm | |
| Static Load Rating | 106kN | |
| Maximum Speed - Grease | 9500rpm | |
| Maximum Speed - Oil | 11000rpm | |
| Internal Clearance | C1 | |
| Series | NN 3012 | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Cylindrical Roller Bearing | ||
Inside Diameter 60mm | ||
Race Width 26mm | ||
Bore Type Cylindrical | ||
Cage Material Non-Metallic | ||
Roller Material Bearing Steel | ||
Bearing Material Bearing Steel | ||
Number of Rows 2 | ||
Dynamic Load Rating 73.7kN | ||
Outside Diameter 95mm | ||
Static Load Rating 106kN | ||
Maximum Speed - Grease 9500rpm | ||
Maximum Speed - Oil 11000rpm | ||
Internal Clearance C1 | ||
Series NN 3012 | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- IT
The SKF Super-precision double row cylindrical roller bearings in the NN 30 series provide a unique balance between load carrying capacity, rigidity and speed. Having three flanges on the inner ring and no flanges on the outer ring, the bearings can accommodate axial displacement in both directions. The separable design simplifies mounting and dismounting, particularly when load conditions require both rings to have an interference fit.
Very high radial load carrying capacity
High rigidity and high running accuracy
Minimize noise, vibration and heat generation
