SKF NKIA 5905 25 mm ID Roller Bearing Angular Contact Ball, Needle Roller, 42 mm OD
- RS Stock No.:
- 464-444
- Mfr. Part No.:
- NKIA 5905
- Brand:
- SKF
Subtotal (1 unit)*
£65.95
(exc. VAT)
£79.14
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 08 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £65.95 |
*price indicative
- RS Stock No.:
- 464-444
- Mfr. Part No.:
- NKIA 5905
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Roller Bearing | |
| Inside Diameter | 25mm | |
| Race Width | 23mm | |
| Bearing Material | Bearing Steel | |
| Static Load Rating | 34.5kN | |
| Dynamic Load Rating | 24.2kN | |
| Limiting Speed | 15000rpm | |
| Outside Diameter | 42mm | |
| Standards/Approvals | RoHS | |
| Internal Clearance | CN | |
| Series | NKIA 5905 | |
| Bearing Type | Angular Contact Ball, Needle Roller | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Roller Bearing | ||
Inside Diameter 25mm | ||
Race Width 23mm | ||
Bearing Material Bearing Steel | ||
Static Load Rating 34.5kN | ||
Dynamic Load Rating 24.2kN | ||
Limiting Speed 15000rpm | ||
Outside Diameter 42mm | ||
Standards/Approvals RoHS | ||
Internal Clearance CN | ||
Series NKIA 5905 | ||
Bearing Type Angular Contact Ball, Needle Roller | ||
- COO (Country of Origin):
- SK

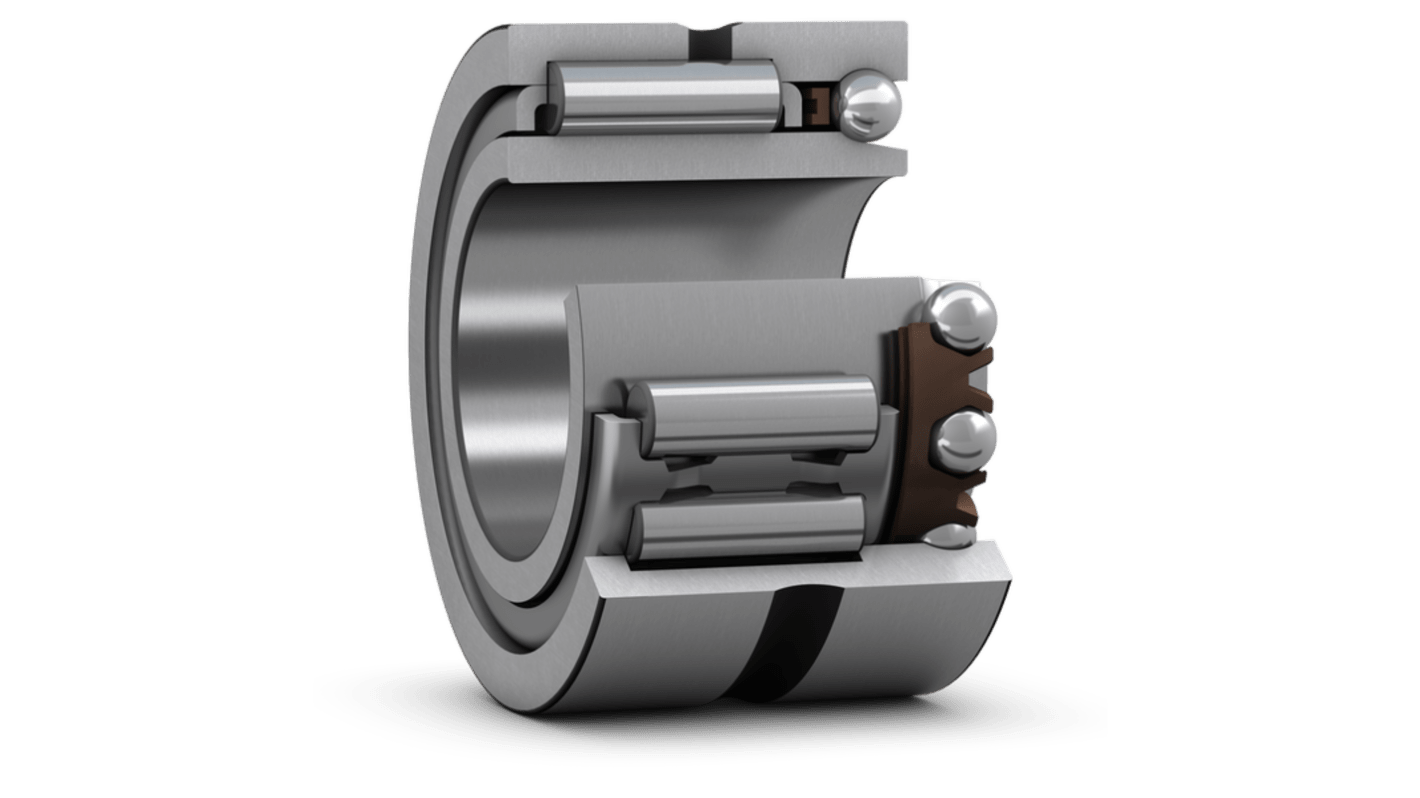

The SKF Bearings consist of a radial needle roller bearing combined with an angular contact ball bearing. Together they can accommodate both heavy radial loads and light axial loads in one direction. In addition, they can operate at high speeds. Their low cross-sectional height makes the bearings particularly suitable for applications where other types of locating bearing arrangements occupy too much space.
High load carrying capacity
High speed capability
Low cross section
