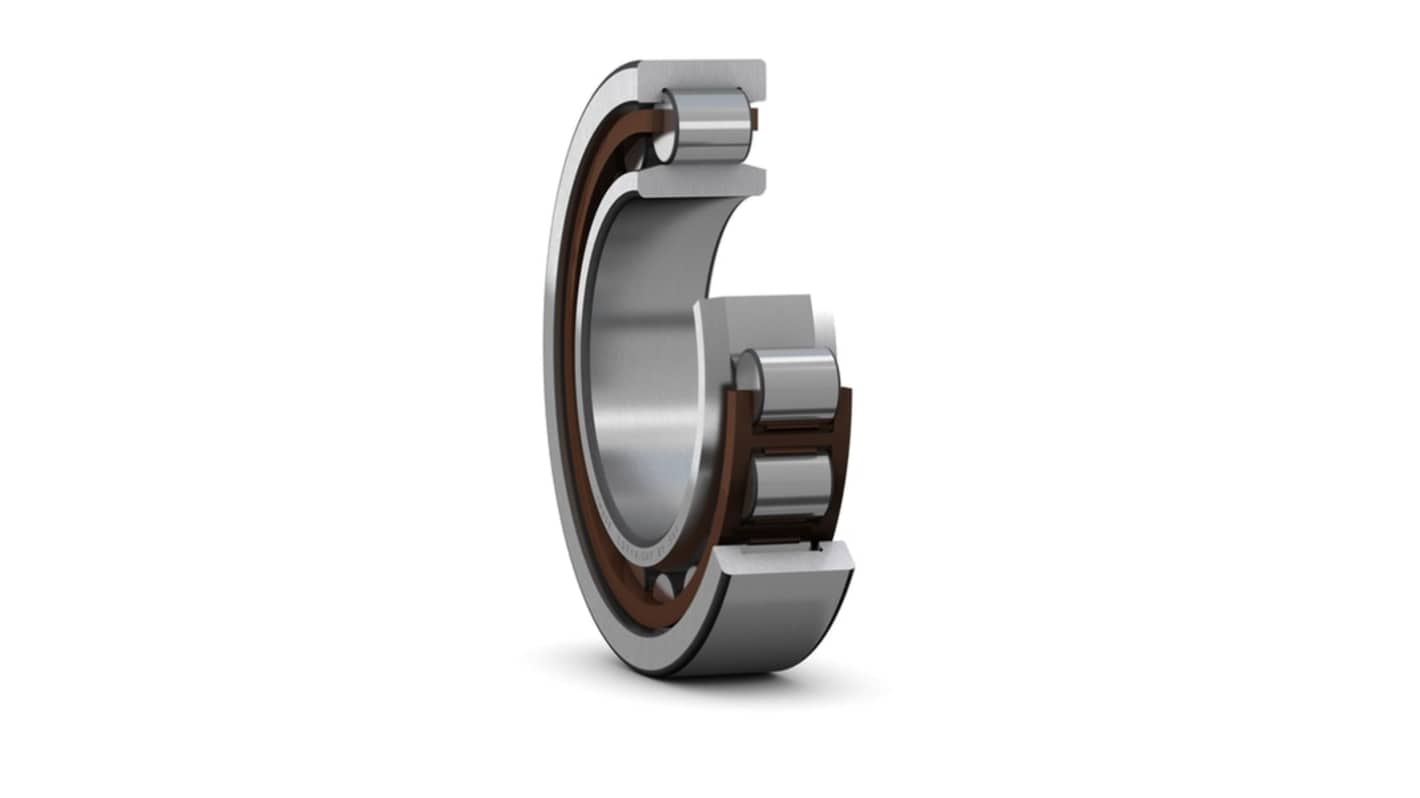

SKF NU 2315 ECP 75 mm ID Cylindrical Roller Bearing, 160 mm OD
- RS Stock No.:
- 464-244
- Mfr. Part No.:
- NU 2315 ECP
- Brand:
- SKF
Subtotal (1 unit)*
£454.57
(exc. VAT)
£545.48
(inc. VAT)
Add 1 unit to get free delivery
Temporarily out of stock
- Shipping from 05 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £454.57 |
*price indicative
- RS Stock No.:
- 464-244
- Mfr. Part No.:
- NU 2315 ECP
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Cylindrical Roller Bearing | |
| Inside Diameter | 75 mm | |
| Race Width | 55mm | |
| Bore Type | Cylindrical | |
| Cage Material | Non-Metallic | |
| Static Load Rating | 400kN | |
| Series | NU | |
| Internal Clearance | CN | |
| Number of Rows | 1 | |
| Dynamic Load Rating | 380kN | |
| Outside Diameter | 160 mm | |
| Limiting Speed | 5300rpm | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Cylindrical Roller Bearing | ||
Inside Diameter 75 mm | ||
Race Width 55mm | ||
Bore Type Cylindrical | ||
Cage Material Non-Metallic | ||
Static Load Rating 400kN | ||
Series NU | ||
Internal Clearance CN | ||
Number of Rows 1 | ||
Dynamic Load Rating 380kN | ||
Outside Diameter 160 mm | ||
Limiting Speed 5300rpm | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- DE
The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design
