SKF NKI 32/20 32 mm ID Roller Bearing Needle Roller, 47 mm OD
- RS Stock No.:
- 464-212
- Mfr. Part No.:
- NKI 32/20
- Brand:
- SKF
Subtotal (1 unit)*
£42.81
(exc. VAT)
£51.37
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £42.81 |
*price indicative
- RS Stock No.:
- 464-212
- Mfr. Part No.:
- NKI 32/20
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Roller Bearing | |
| Inside Diameter | 32mm | |
| Race Width | 20mm | |
| Cage Material | Sheet Metal | |
| Internal Clearance | CN | |
| Limiting Speed | 12000rpm | |
| Dynamic Load Rating | 29kN | |
| Standards/Approvals | RoHS | |
| Series | NKI | |
| Static Load Rating | 46.5kN | |
| Number of Rows | 1 | |
| Bearing Material | Bearing Steel | |
| Outside Diameter | 47mm | |
| Bearing Type | Needle Roller | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Roller Bearing | ||
Inside Diameter 32mm | ||
Race Width 20mm | ||
Cage Material Sheet Metal | ||
Internal Clearance CN | ||
Limiting Speed 12000rpm | ||
Dynamic Load Rating 29kN | ||
Standards/Approvals RoHS | ||
Series NKI | ||
Static Load Rating 46.5kN | ||
Number of Rows 1 | ||
Bearing Material Bearing Steel | ||
Outside Diameter 47mm | ||
Bearing Type Needle Roller | ||
- COO (Country of Origin):
- SK

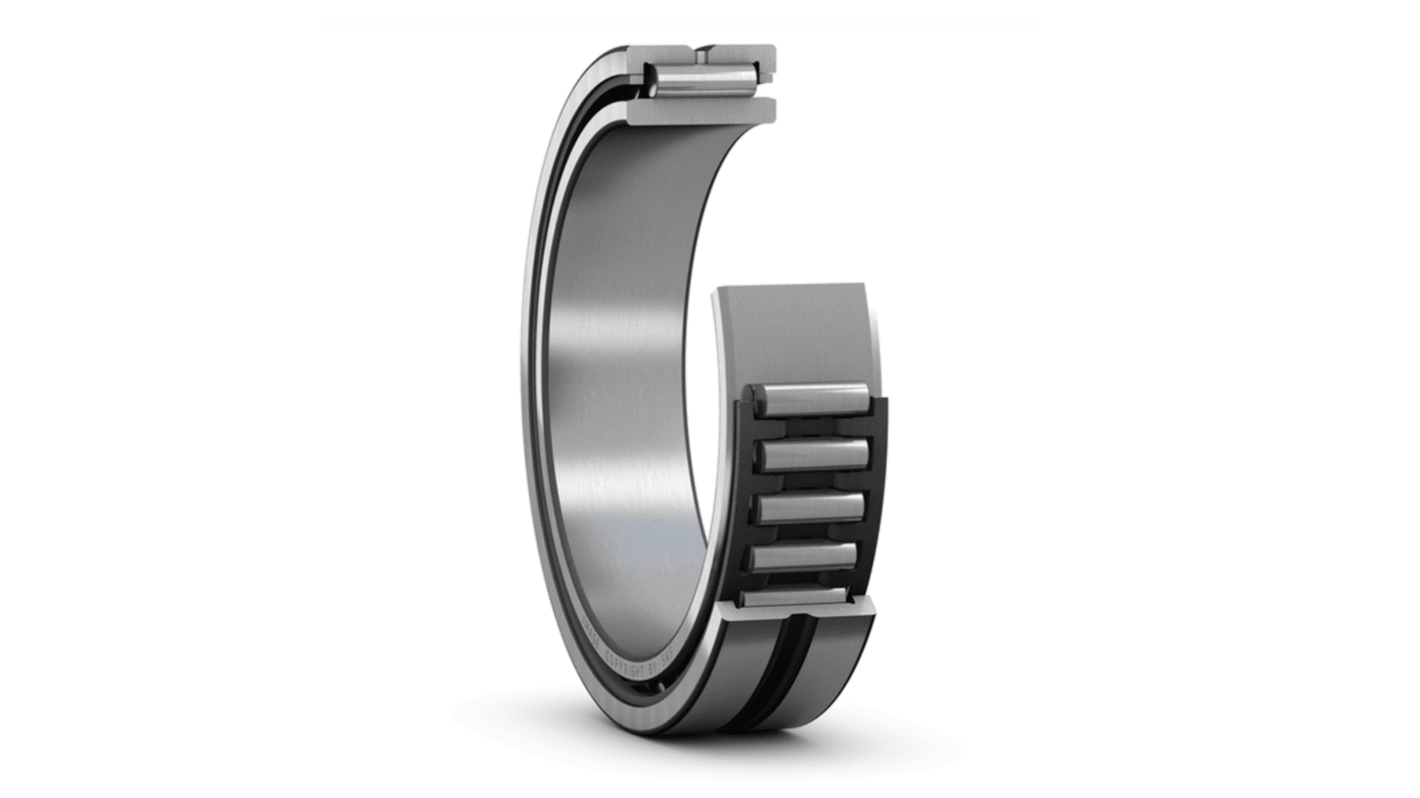

The SKF Single row needle roller bearings incorporate cylindrical rollers that are small in diameter relative to their length. Owing to their large number of rollers, the bearings have a high load carrying capacity. The outer ring includes two integral flanges to guide the bearing axially and an annular groove with one or more lubrication holes to facilitate relubrication.
High radial load carrying capacity
High stiffness
Low cross-sectional height
Accommodate axial displacement in both directions
Separable design
