SKF NJ 321 ECJ 105 mm I.D Cylindrical Roller Bearing, 225 mm O.D
- RS Stock No.:
- 464-201
- Mfr. Part No.:
- NJ 321 ECJ
- Brand:
- SKF
Subtotal (1 unit)*
£892.37
(exc. VAT)
£1,070.84
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £892.37 |
*price indicative
- RS Stock No.:
- 464-201
- Mfr. Part No.:
- NJ 321 ECJ
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Cylindrical Roller Bearing | |
| Inside Diameter | 105 mm | |
| Race Width | 49mm | |
| Bore Type | Cylindrical | |
| Cage Material | Sheet Metal | |
| Number of Rows | 1 | |
| Standards/Approvals | RoHS | |
| Internal Clearance | CN | |
| Series | NJ | |
| Limiting Speed | 3800rpm | |
| Outside Diameter | 225 mm | |
| Dynamic Load Rating | 500kN | |
| Static Load Rating | 500kN | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Cylindrical Roller Bearing | ||
Inside Diameter 105 mm | ||
Race Width 49mm | ||
Bore Type Cylindrical | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Standards/Approvals RoHS | ||
Internal Clearance CN | ||
Series NJ | ||
Limiting Speed 3800rpm | ||
Outside Diameter 225 mm | ||
Dynamic Load Rating 500kN | ||
Static Load Rating 500kN | ||
- COO (Country of Origin):
- DE

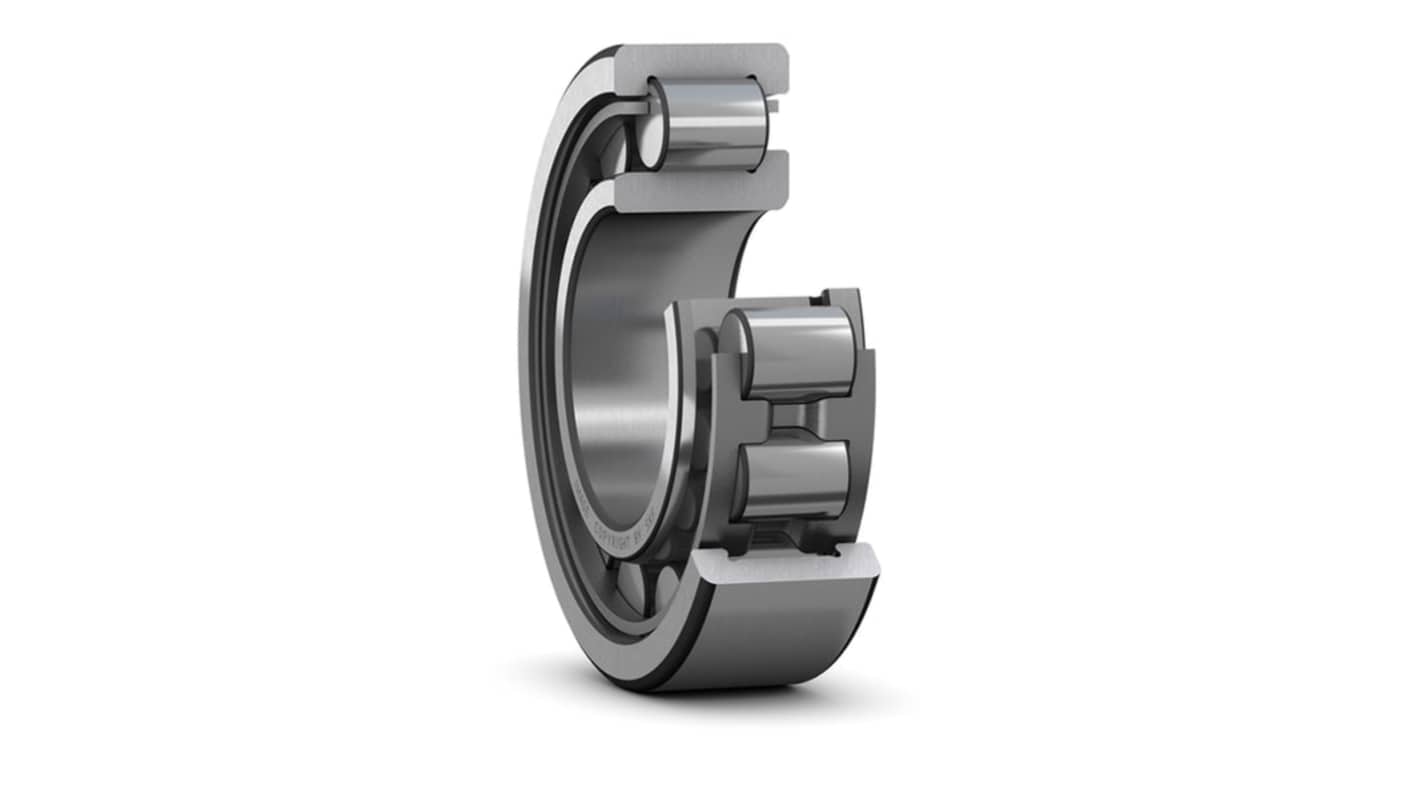

The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJ design bearings can accommodate axial displacement in one direction. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Locate the shaft axially in one direction
Separable design
