SKF NJ 224 ECM/C3 120 mm ID Cylindrical Roller Bearing, 215 mm OD
- RS Stock No.:
- 464-178
- Mfr. Part No.:
- NJ 224 ECM/C3
- Brand:
- SKF
Subtotal (1 unit)*
£998.56
(exc. VAT)
£1,198.27
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 07 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £998.56 |
*price indicative
- RS Stock No.:
- 464-178
- Mfr. Part No.:
- NJ 224 ECM/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Cylindrical Roller Bearing | |
| Inside Diameter | 120mm | |
| Race Width | 40mm | |
| Bore Type | Cylindrical | |
| Cage Material | Sheet Metal | |
| Static Load Rating | 430kN | |
| Number of Rows | 1 | |
| Limiting Speed | 3600rpm | |
| Internal Clearance | C3 | |
| Standards/Approvals | No | |
| Dynamic Load Rating | 390kN | |
| Outside Diameter | 215mm | |
| Series | NJ 224 | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Cylindrical Roller Bearing | ||
Inside Diameter 120mm | ||
Race Width 40mm | ||
Bore Type Cylindrical | ||
Cage Material Sheet Metal | ||
Static Load Rating 430kN | ||
Number of Rows 1 | ||
Limiting Speed 3600rpm | ||
Internal Clearance C3 | ||
Standards/Approvals No | ||
Dynamic Load Rating 390kN | ||
Outside Diameter 215mm | ||
Series NJ 224 | ||
- COO (Country of Origin):
- DE

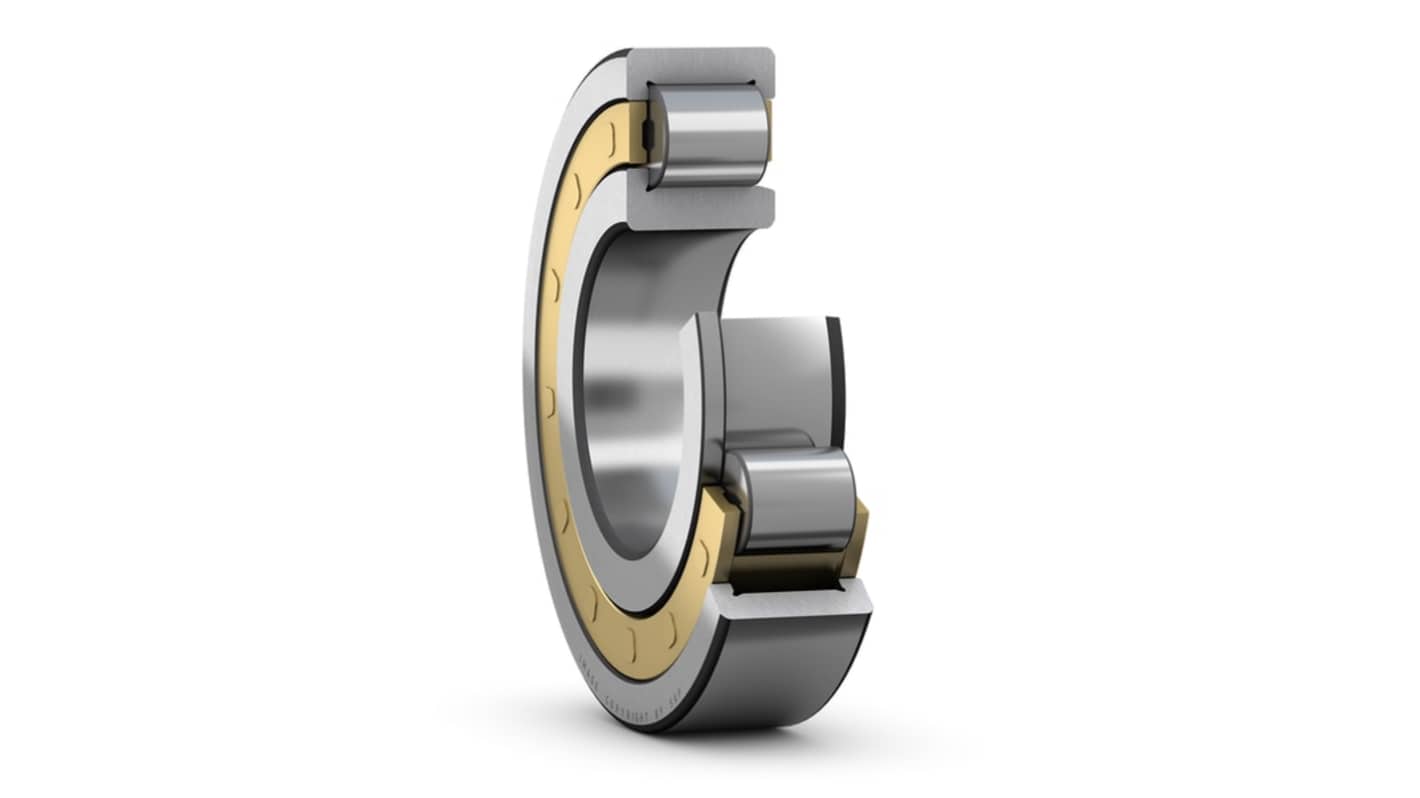

The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJ design bearings can accommodate axial displacement in one direction. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Locate the shaft axially in one direction
Separable design
