SKF NU 228 ECML 140 mm ID Roller Bearing, 250 mm OD
- RS Stock No.:
- 464-080
- Mfr. Part No.:
- NU 228 ECML
- Brand:
- SKF
Subtotal (1 unit)*
£1,332.84
(exc. VAT)
£1,599.41
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 06 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,332.84 |
*price indicative
- RS Stock No.:
- 464-080
- Mfr. Part No.:
- NU 228 ECML
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Roller Bearing | |
| Inside Diameter | 140mm | |
| Race Width | 42mm | |
| Bore Type | Cylindrical | |
| Cage Material | Machined Brass | |
| Dynamic Load Rating | 450kN | |
| Standards/Approvals | RoHS | |
| Limiting Speed | 4800rpm | |
| Series | NU | |
| Outside Diameter | 250mm | |
| Internal Clearance | CN | |
| Static Load Rating | 510kN | |
| Number of Rows | 1 | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Roller Bearing | ||
Inside Diameter 140mm | ||
Race Width 42mm | ||
Bore Type Cylindrical | ||
Cage Material Machined Brass | ||
Dynamic Load Rating 450kN | ||
Standards/Approvals RoHS | ||
Limiting Speed 4800rpm | ||
Series NU | ||
Outside Diameter 250mm | ||
Internal Clearance CN | ||
Static Load Rating 510kN | ||
Number of Rows 1 | ||
- COO (Country of Origin):
- DE

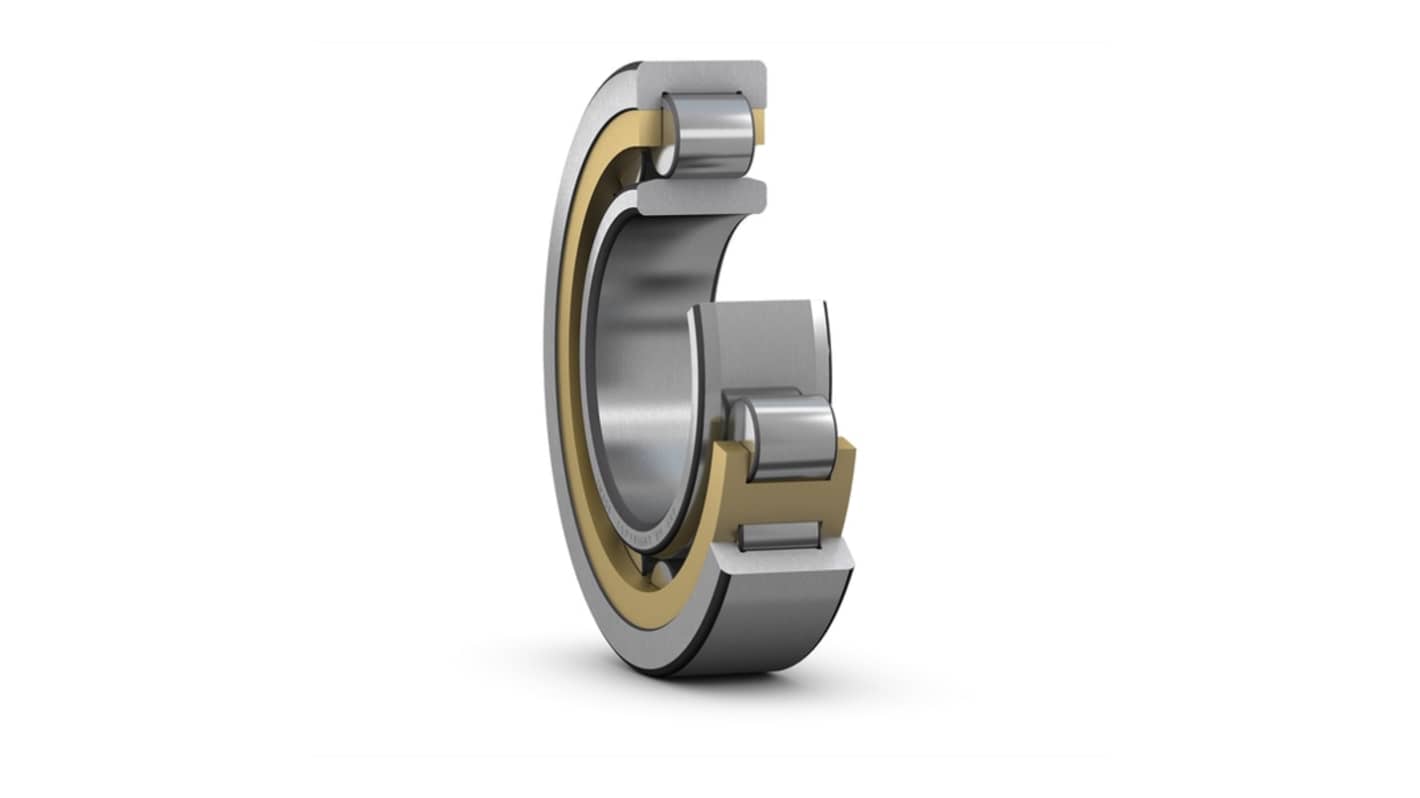

The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design
