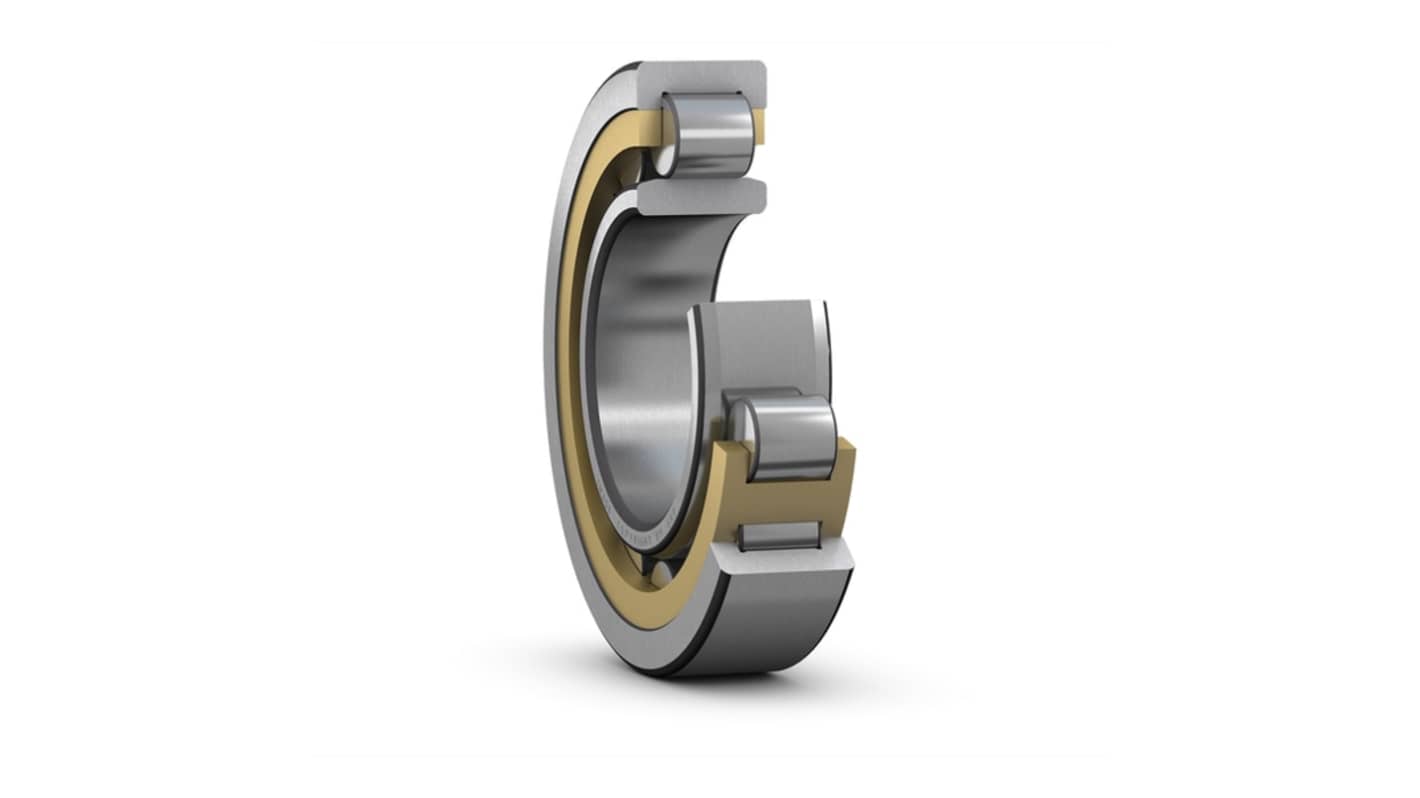

SKF NU 2328 ECML/C3 140 mm I.D Cylindrical Roller Bearing, 300 mm O.D
- RS Stock No.:
- 463-860
- Mfr. Part No.:
- NU 2328 ECML/C3
- Brand:
- SKF
Subtotal (1 unit)*
£3,660.62
(exc. VAT)
£4,392.74
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £3,660.62 |
*price indicative
- RS Stock No.:
- 463-860
- Mfr. Part No.:
- NU 2328 ECML/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Cylindrical Roller Bearing | |
| Inside Diameter | 140 mm | |
| Race Width | 102mm | |
| Bore Type | Cylindrical | |
| Cage Material | Machined Brass | |
| Number of Rows | 1 | |
| Limiting Speed | 4300rpm | |
| Standards/Approvals | RoHS | |
| Dynamic Load Rating | 1200kN | |
| Outside Diameter | 300 mm | |
| Internal Clearance | C3 | |
| Series | NU | |
| Static Load Rating | 1430kN | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Cylindrical Roller Bearing | ||
Inside Diameter 140 mm | ||
Race Width 102mm | ||
Bore Type Cylindrical | ||
Cage Material Machined Brass | ||
Number of Rows 1 | ||
Limiting Speed 4300rpm | ||
Standards/Approvals RoHS | ||
Dynamic Load Rating 1200kN | ||
Outside Diameter 300 mm | ||
Internal Clearance C3 | ||
Series NU | ||
Static Load Rating 1430kN | ||
- COO (Country of Origin):
- DE
The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design
